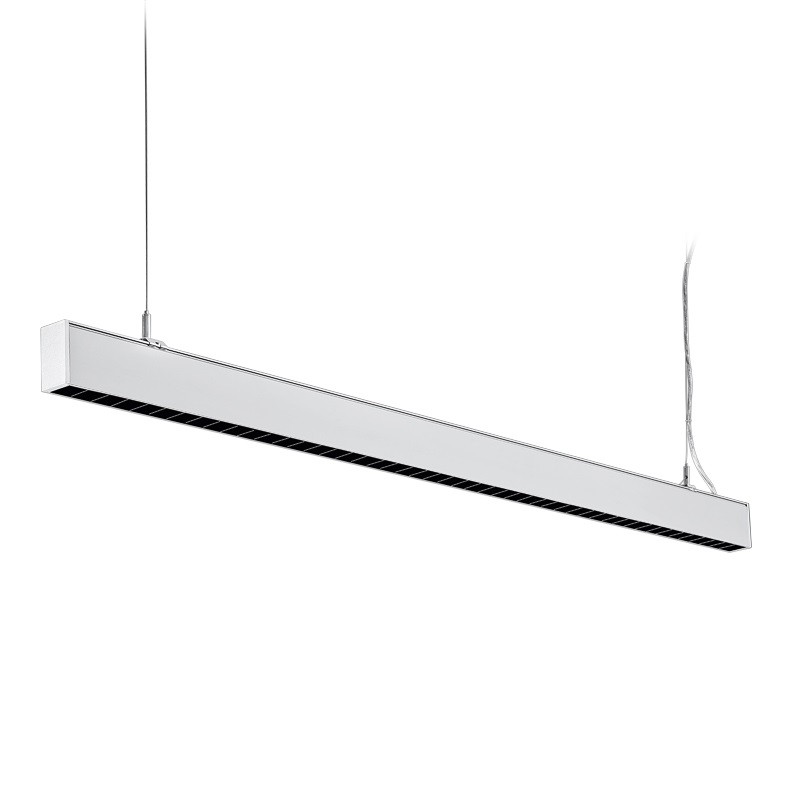

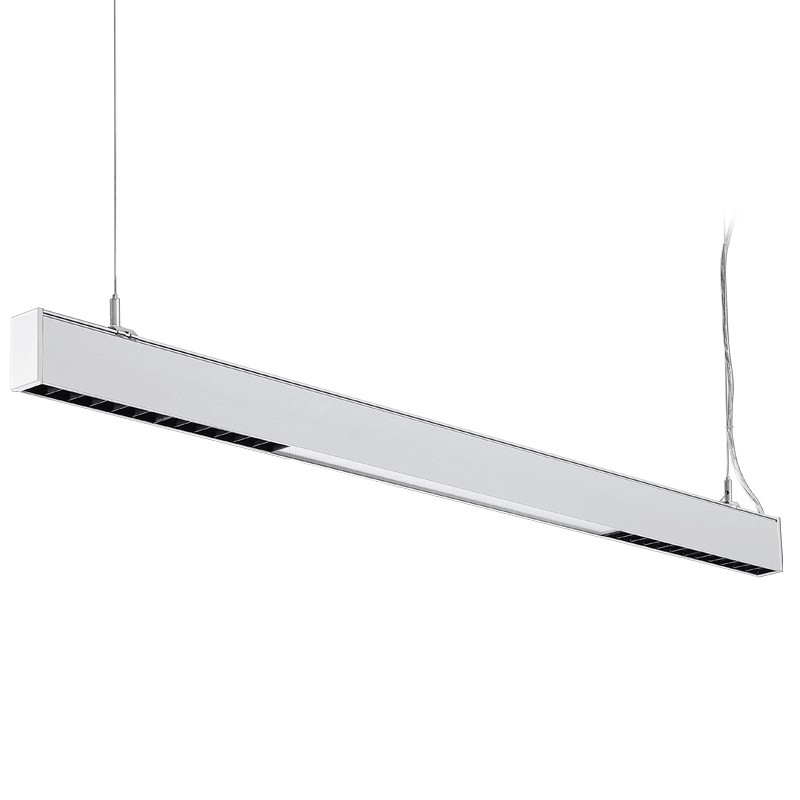

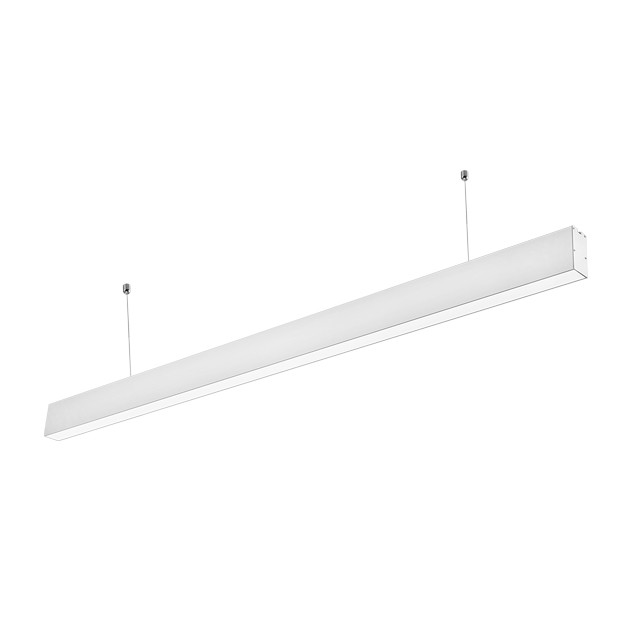

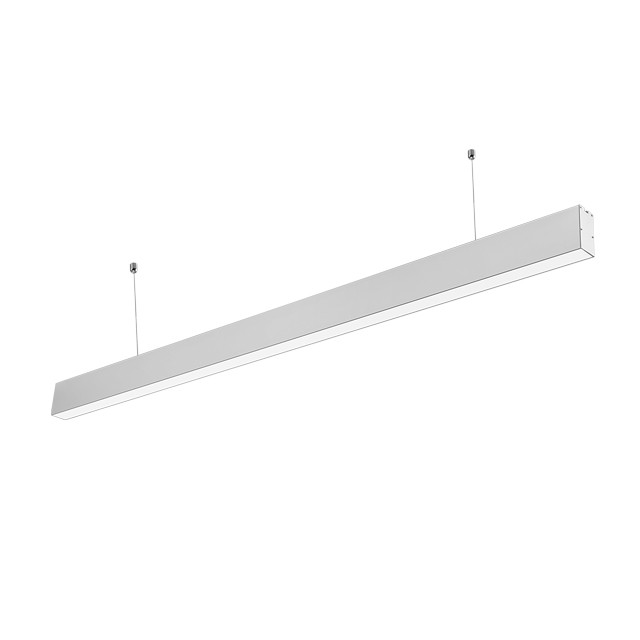

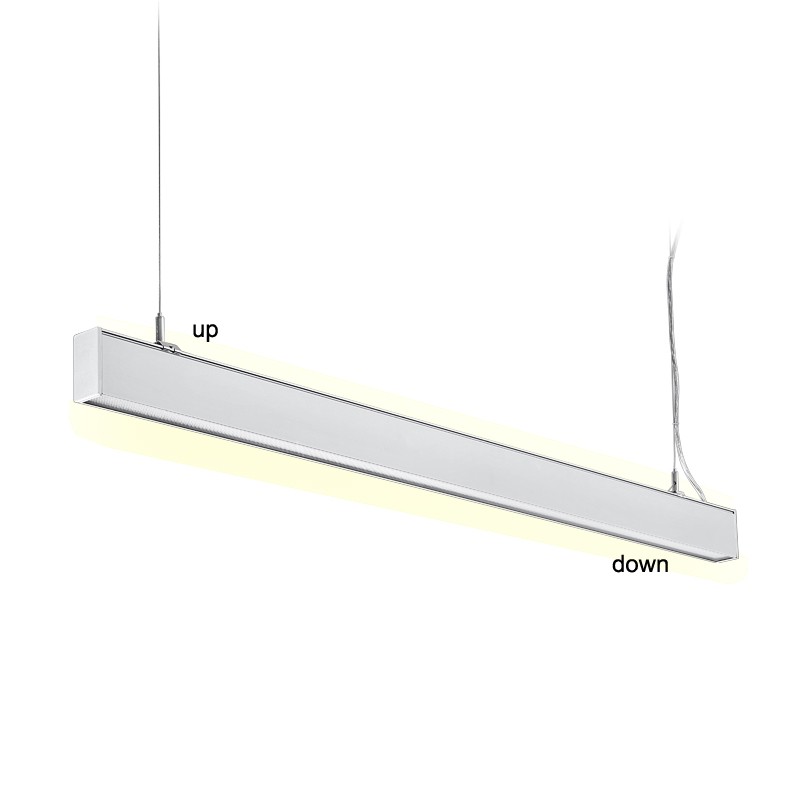

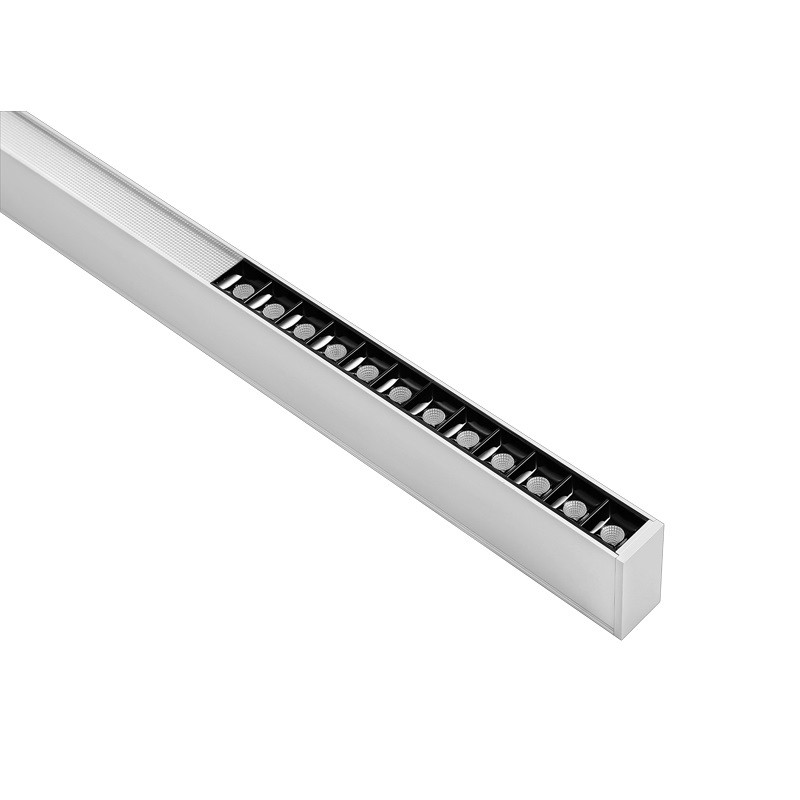

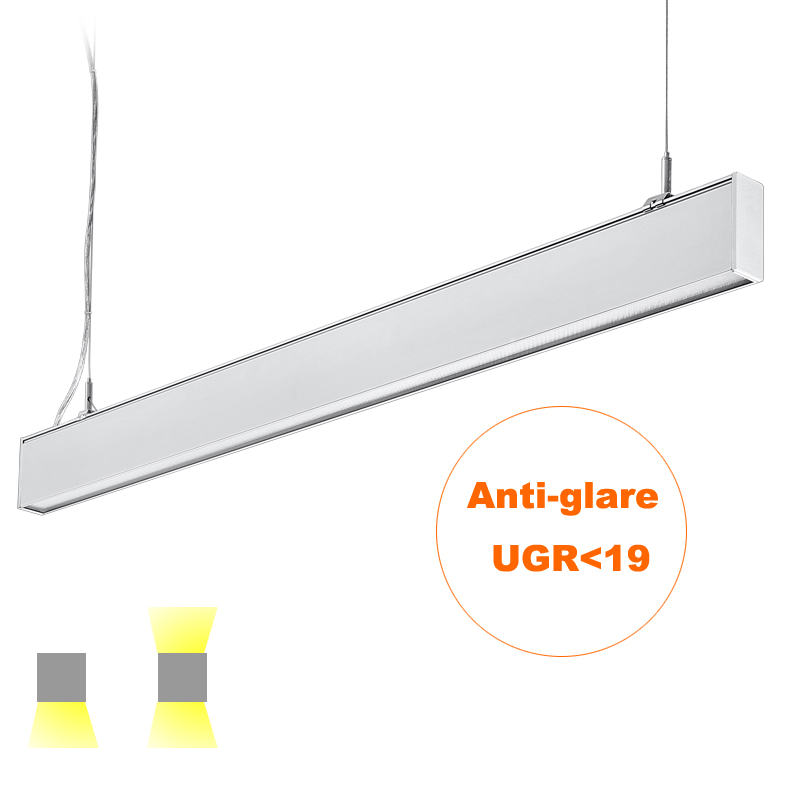

3570 Aluminum up and down linear light

Specification

Measurement:
Product name	LED Linear Light - 3570
Product Model No	LS3570-PZ
Housing material	6063-T5
Surface treatment	Powder coated or Brushed aluminum
CCT	3000K,4000K,6000K
LEDs	2835SMD (SANAN chip)
LEDs Life Span	50000H
Input Voltage	100-277V/200-240V 50/60HZ
Power supplier	Flicker-free
Luminous Efficacy(lm/w)	100lm/W
Color Render (CRI)	RA≥80 or RA≥90
Power factory(PF)	≥0.9

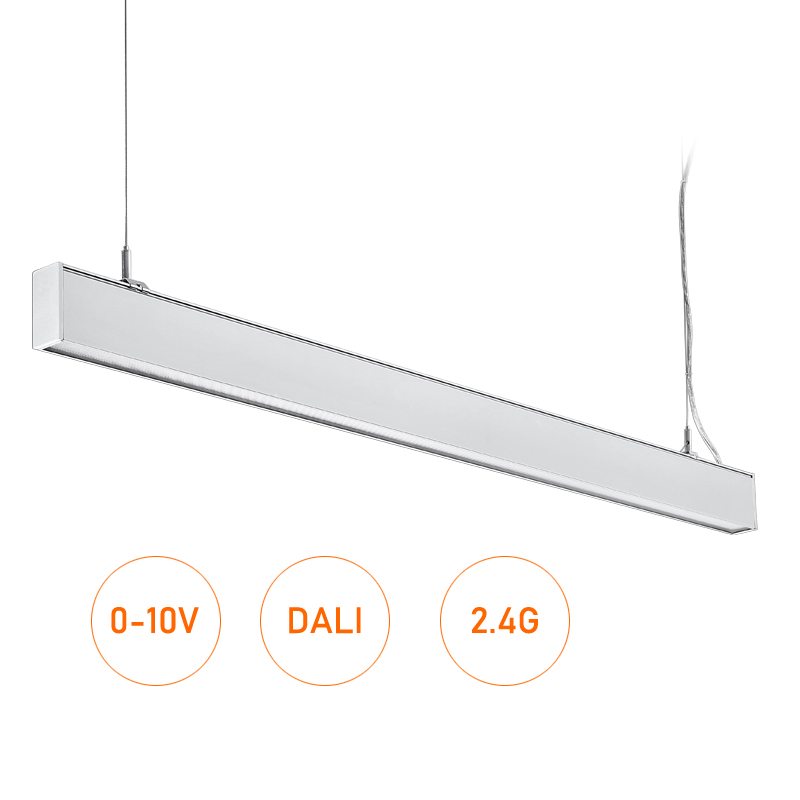

Optional features :	0-10V dimming, DALI dimming,CCT dimming
IP Rated	IP20

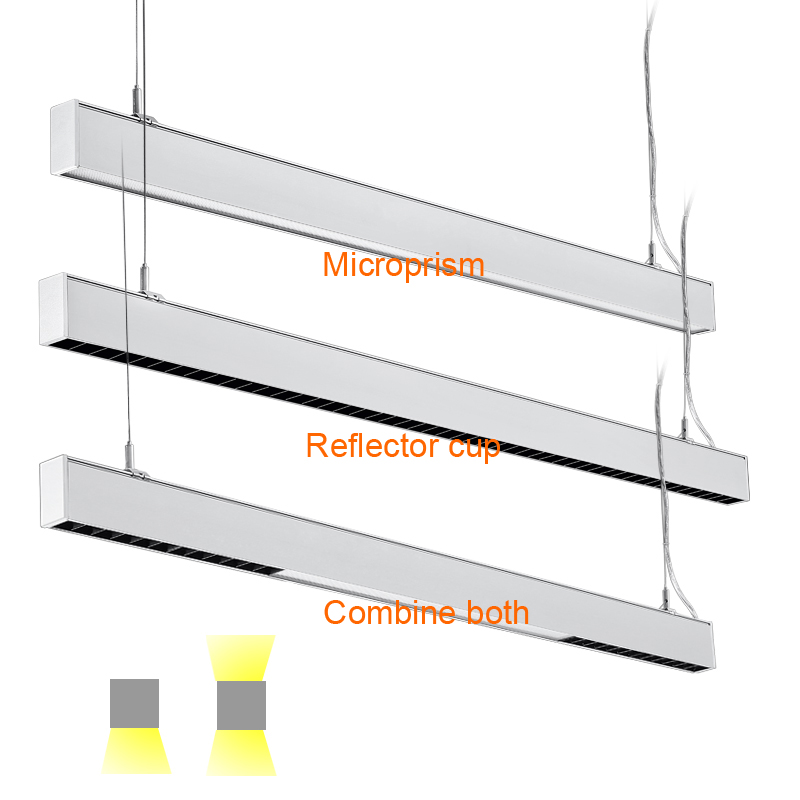

Beam Angle	120° (PC) 34°(Reflector)
Working Temp(℃)	Surrounding Ambiance Temperature -25°~40°Degree Celsius
Body Material	aluminum,PC,ABS

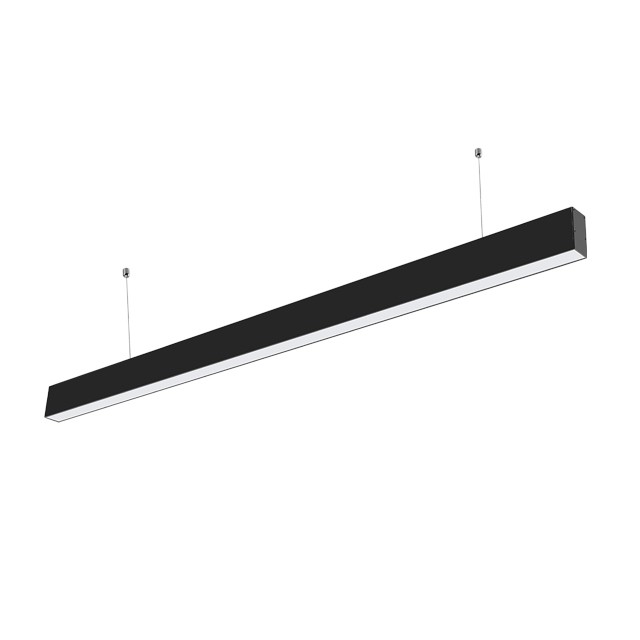

Color Option(shell)	Silver,White,Black
Certification	CE, RoHS
Limited Warranty	3 Years

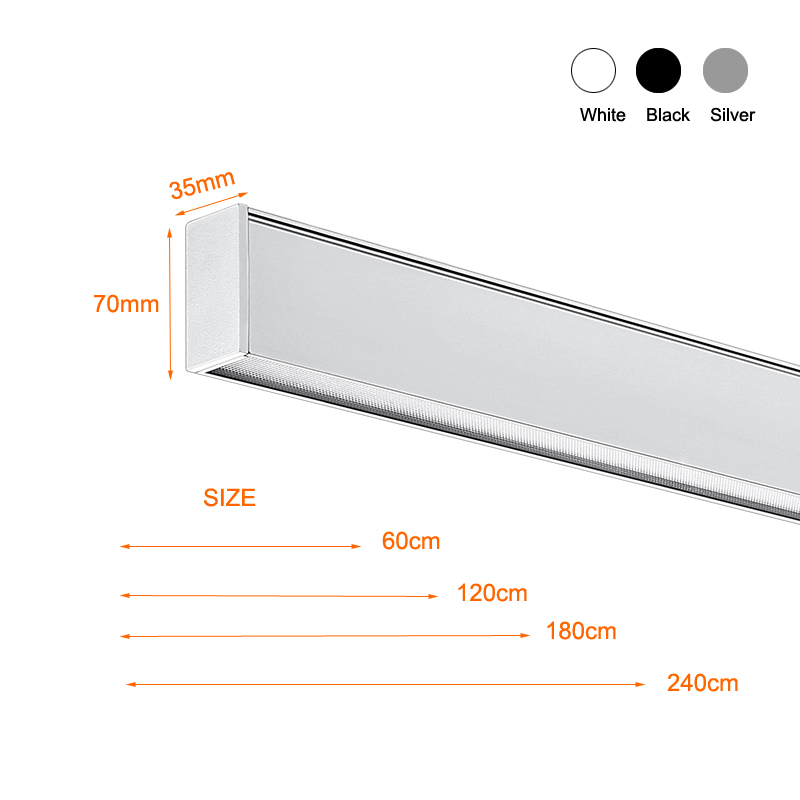

Standard specifications :

Model	Size	Watts	Voltage	CRI
3570LS20W06-PZ	L605W35H70	20W	AC200-240V/100-277v	Ra>80/90
3570LS40W12-PZ	L1200W35H70	40W	AC200-240V/100-277v	Ra>80/90
3570LS60W18-PZ	L1795W35H70	60W	AC200-240V/100-277v	Ra>80/90
3570LS80W24-PZ	L2390W35H70	80W	AC200-240V/100-277v	Ra>80/90

Feature:

1.Connect with seamless, form with line shape.

2.Product can be used hanging ,surface mounted, recessed installation.

3.Cap with PC plastic moulding , connect with PC cover with seamless which let the light can't run out.

4.Aluminum PCB with no-facula design, connection by rotate installing which conveniently and easily.

5.PC cover transmitting rate reach 86%, luminous reach 110lm/w.

6.IC driver. No flicker, No glaring.CIR ≥ 80.PF ≥ 0.9 and corrosion.

6.Product passed TUV SAA CE FCC ROSH certifications.

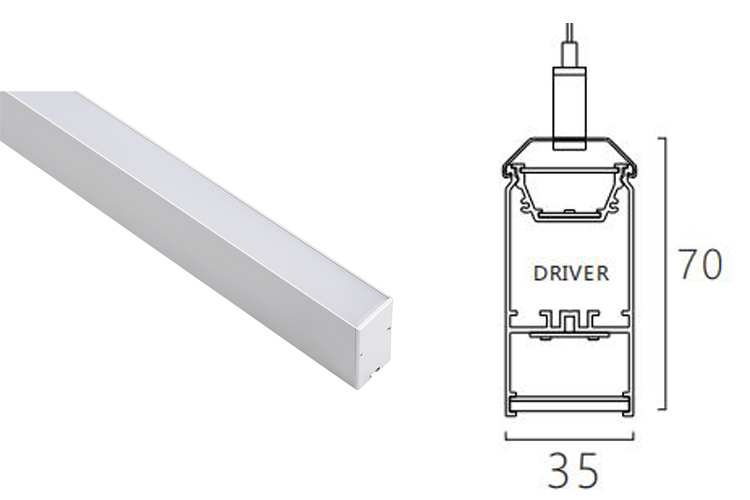

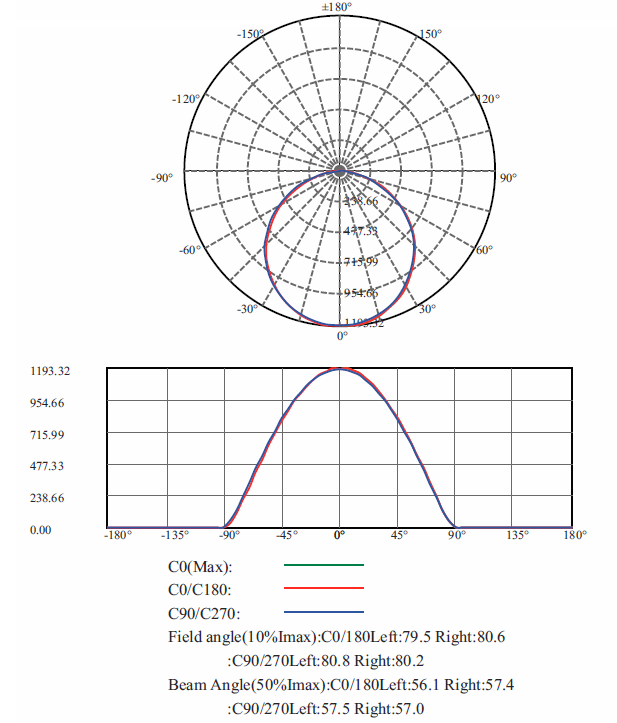

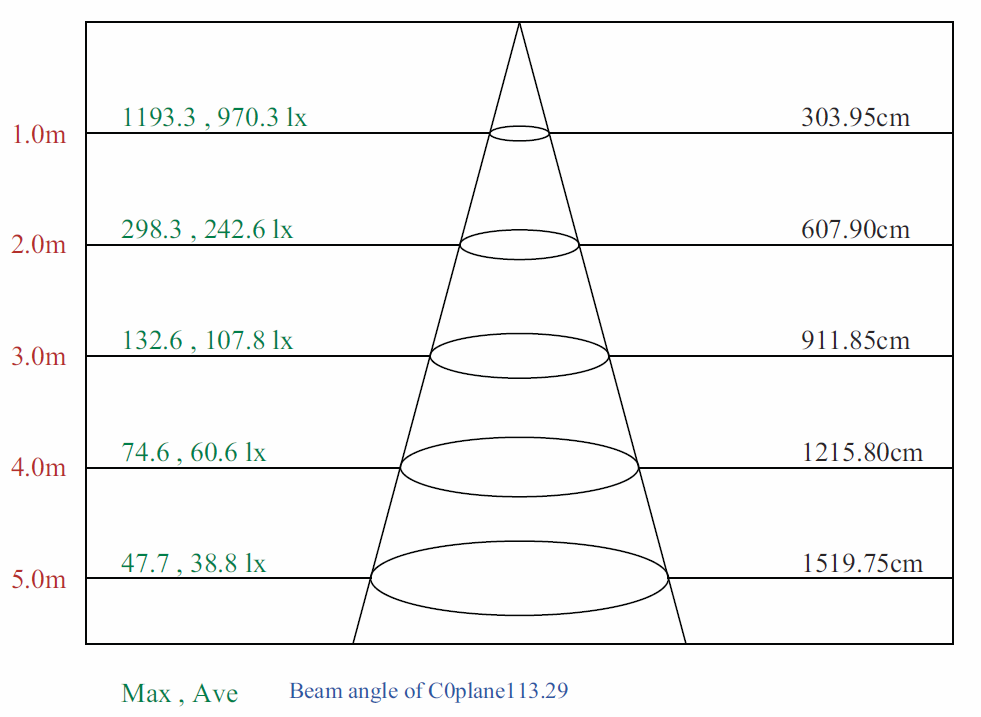

Graphs/profile

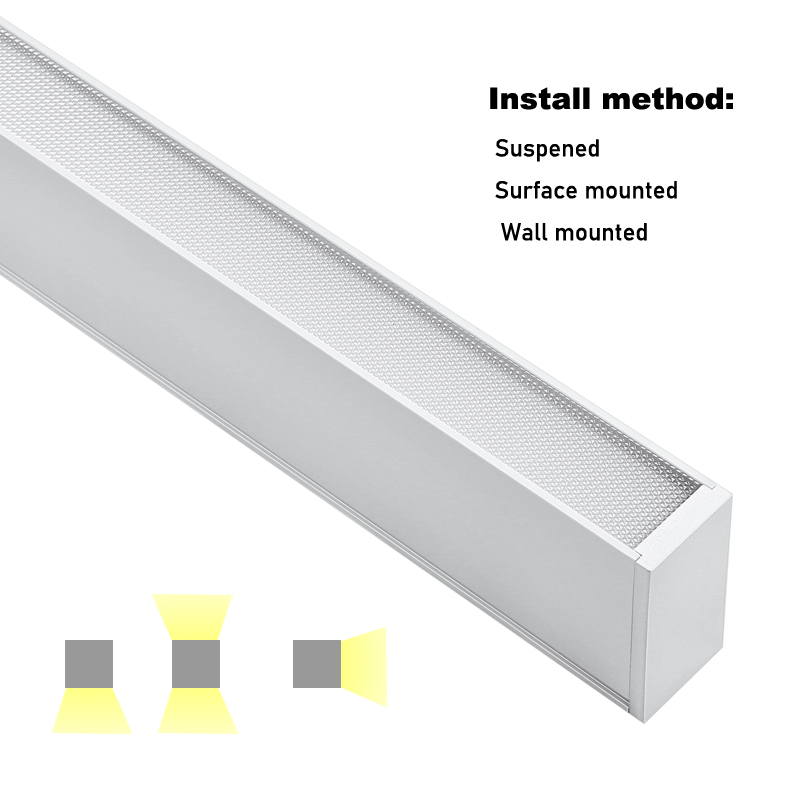

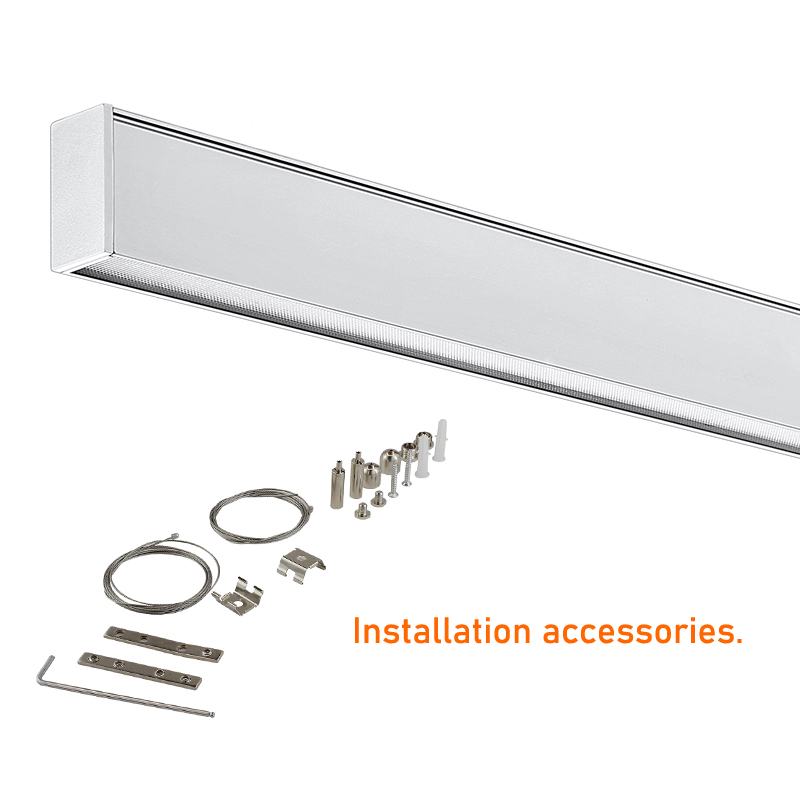

Installation methods

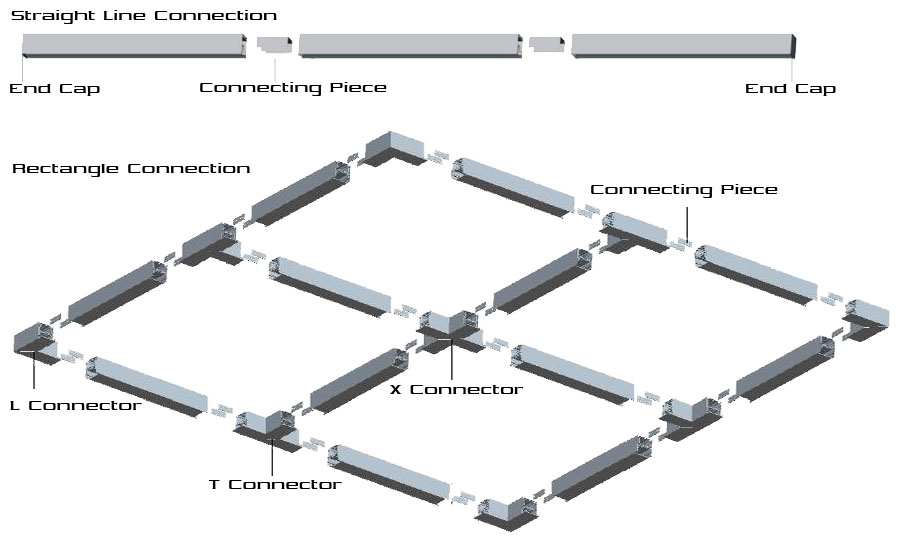

Seamless and linkable.

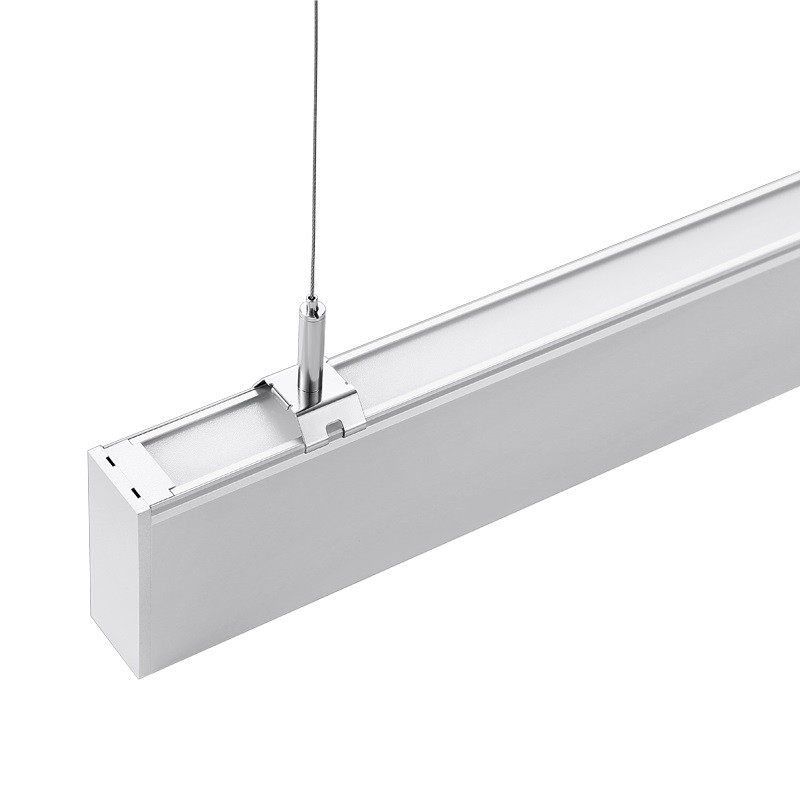

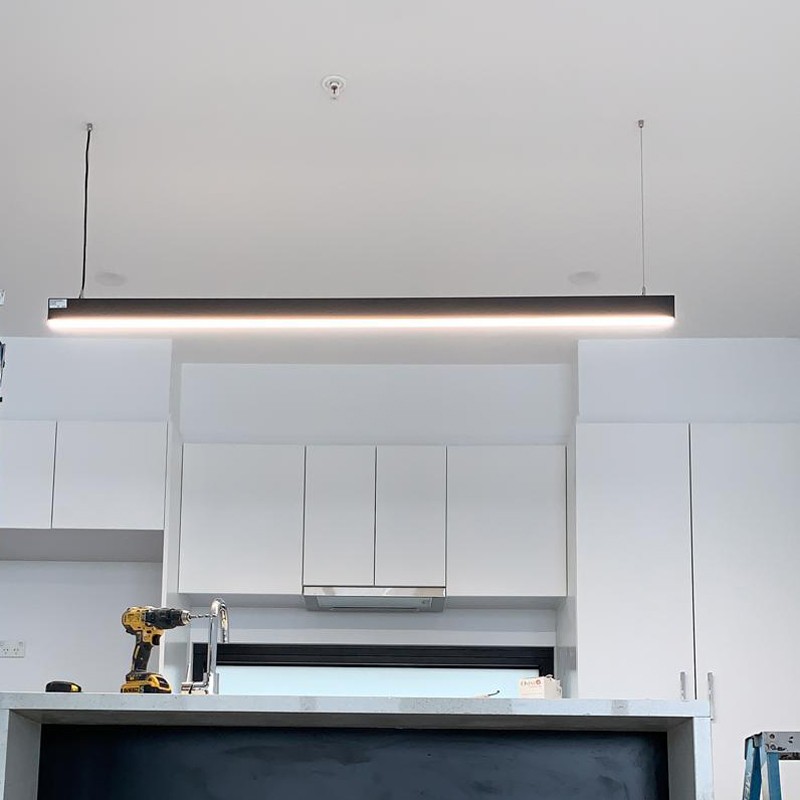

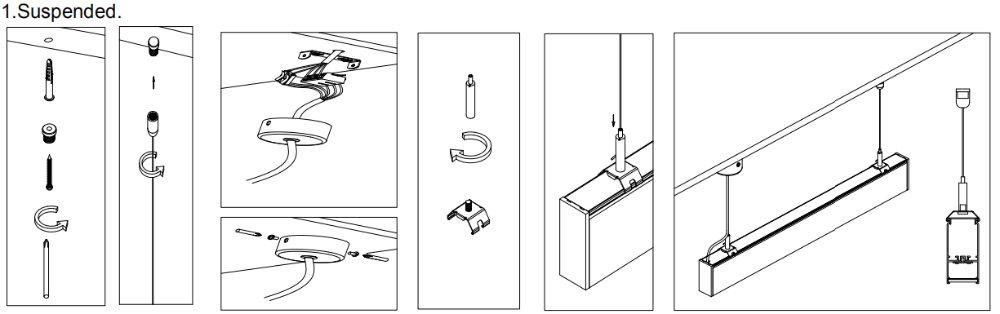

1.Suspened wire

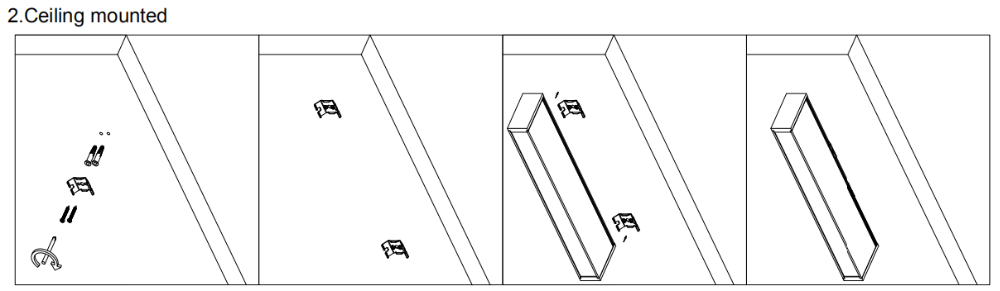

2.Ceiling mounted

3.Different angle corner option to make different shapes

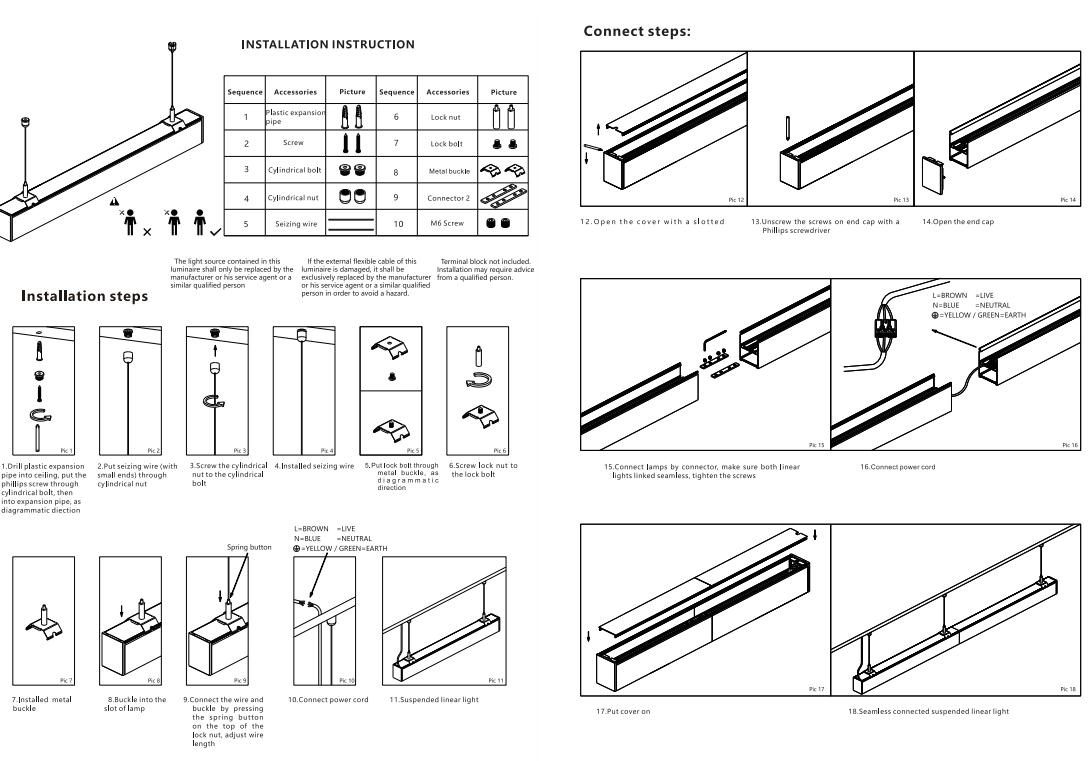

Installation Process

Packing & Delivery

Packing size &Weight

model	qty/CTN	GW	CTN/ size
3570LH0W06	12PCS	13KG	711×265×180mm
3570LH40W12	12PCS	25KG	1350×265×180mm
3570LH60W18	9PCS	30KG	1985×265×180mm
3570LH80W24	9PCS	40KG	2620×265×180mm
