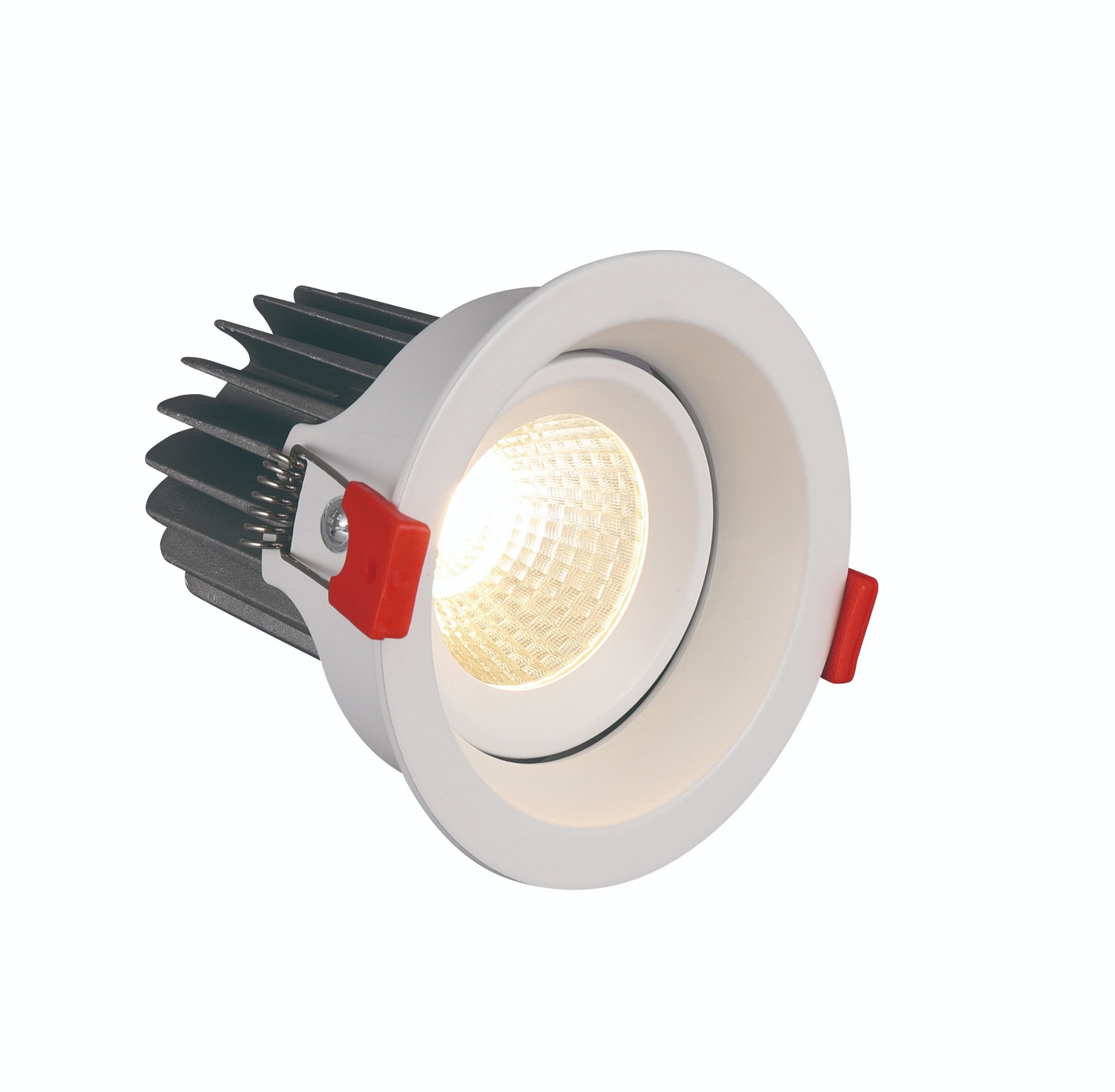

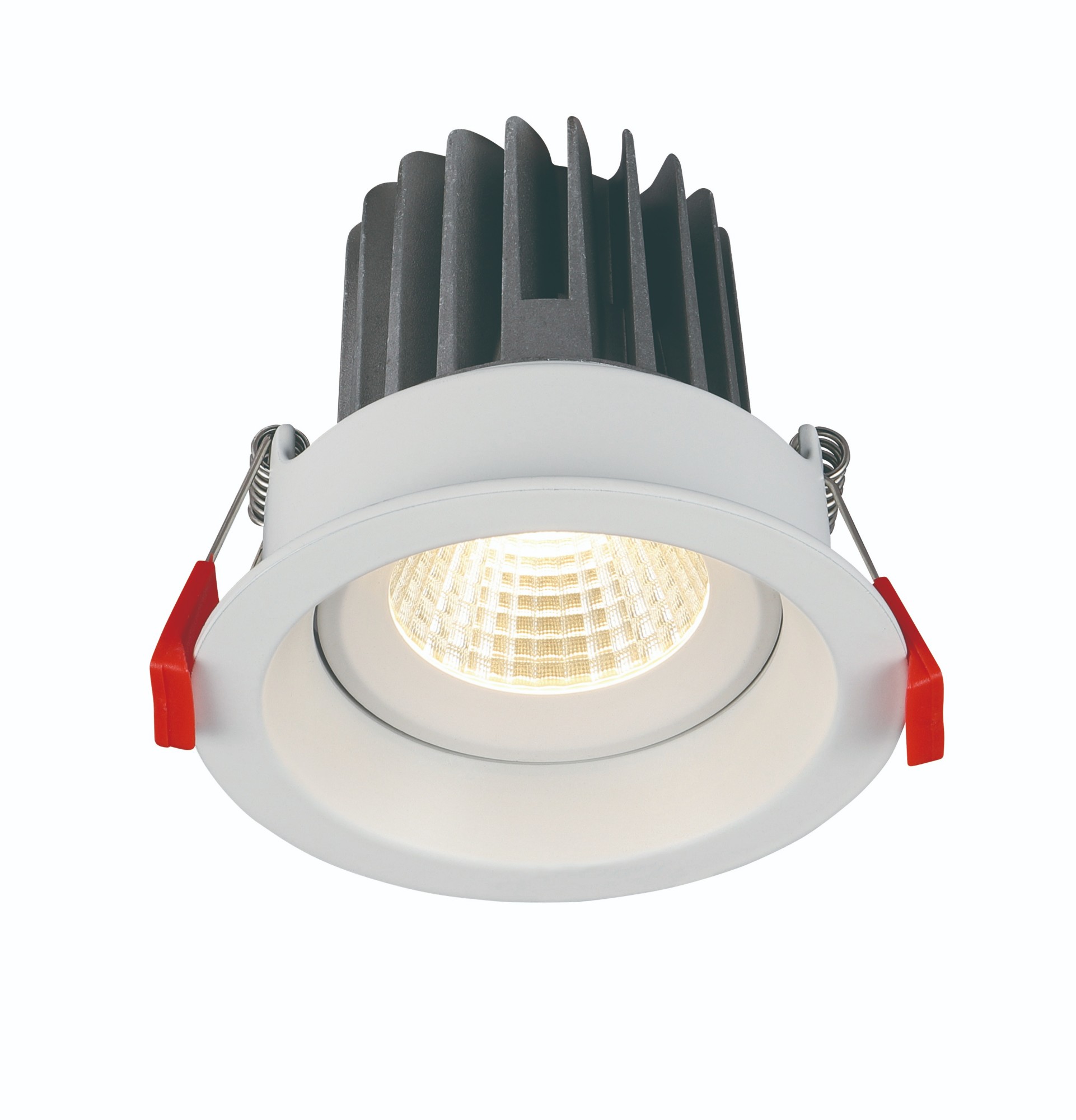

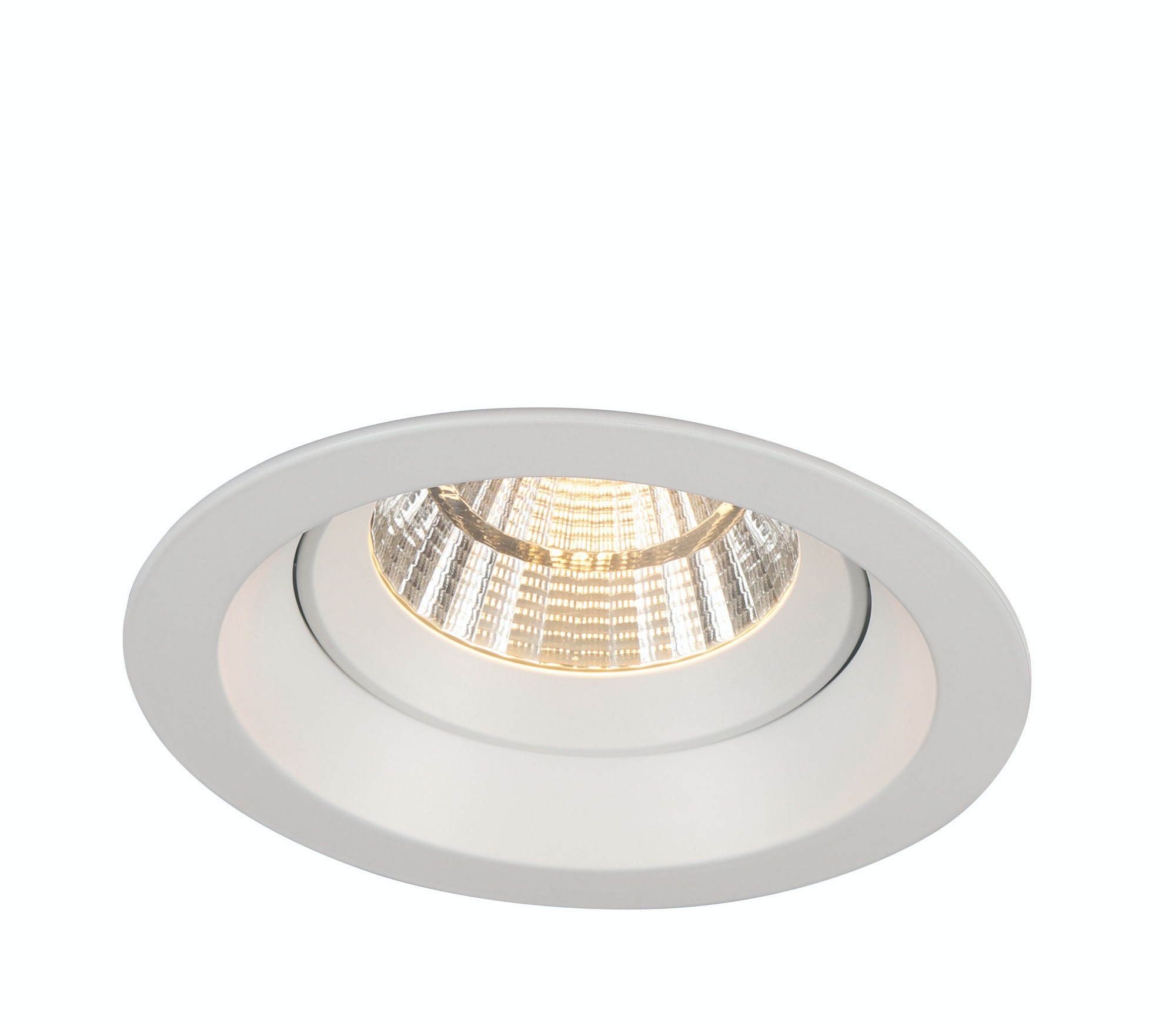

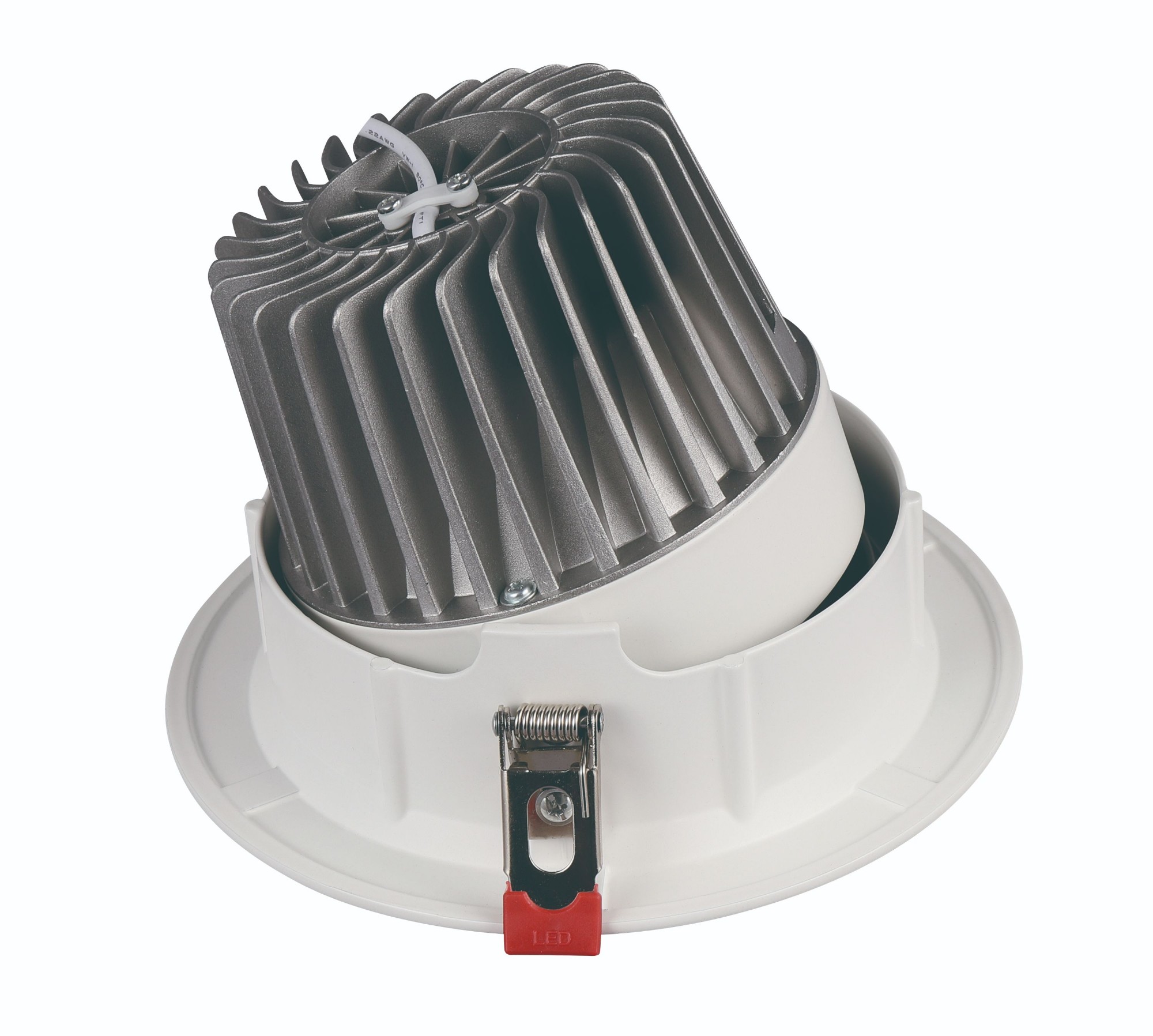

Adjustable COB LED Downlight 10W 15W 20W 30W
Rotatable Downlight COB LED inside, with unique optical system of Focus Reflection, therefore efficient light output and free of glares, contributes to a comfortable lighted surrounding. This type shall gracefully outlines the exhibits on display, in great harmony with the interior features of the architecture to form a delighted and easy space. The latest developed heat radiator of the most reasonable design has significantly improved its efficacy and prolonged its life.
10W Technical specs
| Product Name | Code | Power | Dimension | Cutout size | Voltage | LED Type | Beam Angle | Lumens | CRI | Color Temperature | IP Rating | Frame Colour | DIM |
| Adjustable LED Downlights | DL103-2 ( signle color ) | 10W | 85*70mm | 75-80mm | AC100-240V | COB LED | 24°/38°/60° | 900lm | >80+/90+ | 2700-6500K | IP44 | White/Nick/ Chrome/Black | Traic dim |
| Adjustable LED Downlights | DL103-2 （3 Color chagne by switch） | 10W | 85*70mm | 75-80mm | AC100-240V | COB LED | 24°/38°/60° | 900lm | >80+/90+ | 2700-6500K | IP44 | White/Nick/ Chrome/Black | Traic dim |
| Adjustable LED Downlights | DL103-2 Smart | 10W | 85*70mm | 75-80mm | AC100-240V | COB LED | 24°/38°/60° | 900lm | >80+/90+ | 2700-6500K | IP44 | White/Nick/ Chrome/Black | APP and remote |
15W Technical specs
| Product Name | Code | Power | Dimension | Cutout size | Voltage | LED Type | Beam Angle | Lumens | CRI | Color Temperature | IP Rating | Frame Colour | DIM |
| Adjustable LED Downlights | DL103-3 ( signle color ) | 15W | 100*85mm | 85-90mm | AC100-240V | COB LED | 24°/38°/60° | 1400lm | >80+/90+ | 2700-6500K | IP44 | White/Nick/ Chrome/Black | Traic dim |
| Adjustable LED Downlights | DL103-3 （3 Color chagne by switch） | 15W | 100*85mm | 85-90mm | AC100-240V | COB LED | 24°/38°/60° | 1400lm | >80+/90+ | 2700-6500K | IP44 | White/Nick/ Chrome/Black | Traic dim |
| Adjustable LED Downlights | DL103-3 Smart | 15W | 100*85mm | 85-90mm | AC100-240V | COB LED | 24°/38°/60° | 1400lm | >80+/90+ | 2700-6500K | IP44 | White/Nick/ Chrome/Black | APP and remote |
20W Technical specs
| Product Name | Code | Power | Dimension | Cutout size | Voltage | LED Type | Beam Angle | Lumens | CRI | Color Temperature | IP Rating | Frame Colour | DIM |
| Adjustable LED Downlights | DL103-4 ( signle color ) | 20W | 140*105mm | 115-130mm | AC100-240V | COB LED | 24°/38°/60° | 1850lm | >80+/90+ | 2700-6500K | IP44 | White/Nick/ Chrome/Black | Traic dim |
| Adjustable LED Downlights | DL103-4 （3 Color chagne by switch） | 20W | 140*105mm | 115-130mm | AC100-240V | COB LED | 24°/38°/60° | 1850lm | >80+/90+ | 2700-6500K | IP44 | White/Nick/ Chrome/Black | Traic dim |
| Adjustable LED Downlights | DL103 -4 Smart | 20W | 140*105mm | 115-130mm | AC100-240V | COB LED | 24°/38°/60° | 1850lm | >80+/90+ | 2700-6500K | IP44 | White/Nick/ Chrome/Black | APP and remote |
