Home > Products > LED downlight > COB LED downlight

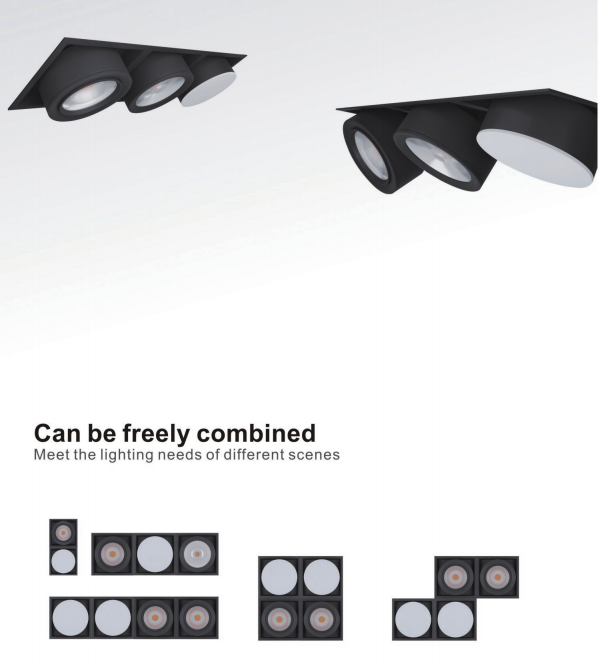

Freely Combined Down Lighting Beams Adjust Ra 90 Freely Combined Down Lighting Beams Adjust Ra 90

Freely Combined Down Lighting Beams Adjust Ra 90

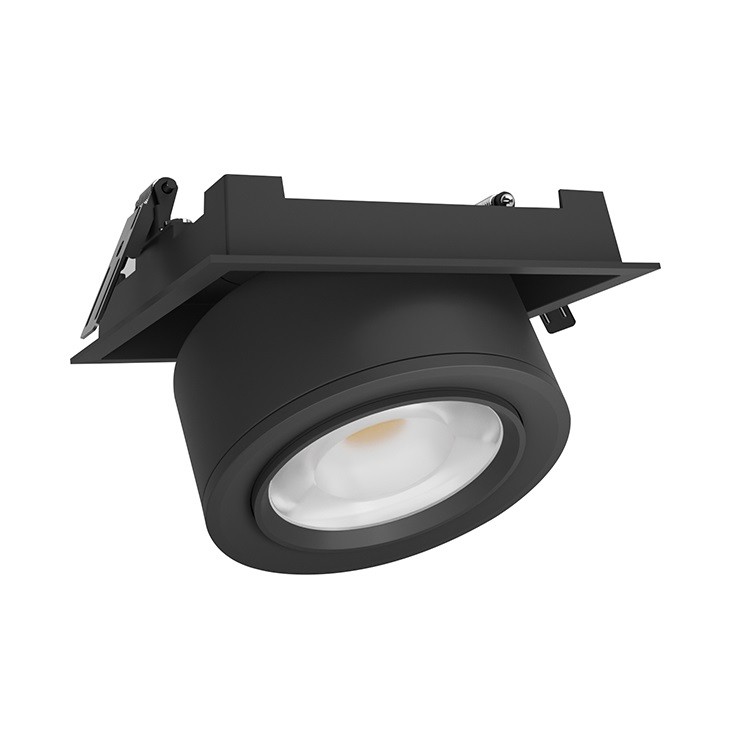

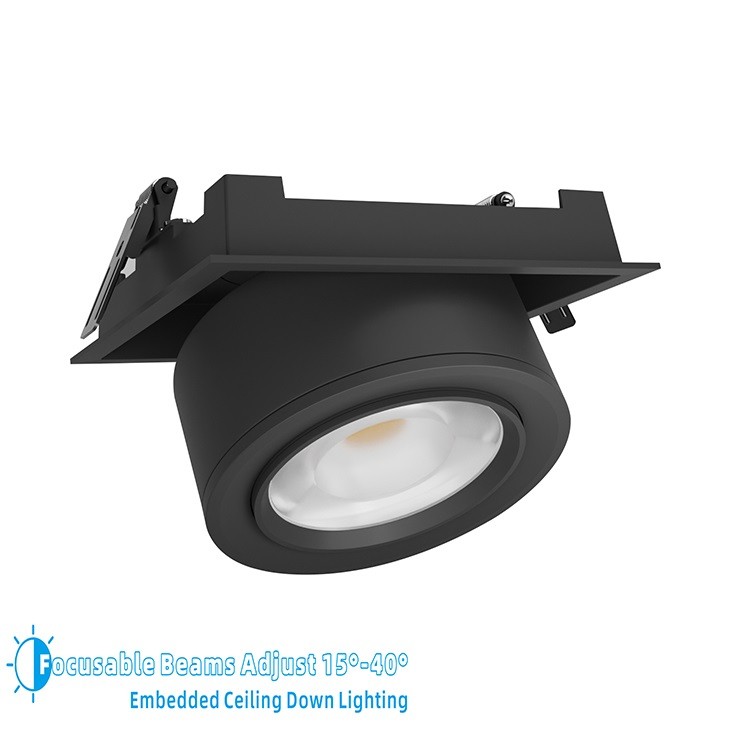

Freely Combined Down Lighting Beams Focusable Adjust Ra 90 Spot Lights Black Round Led

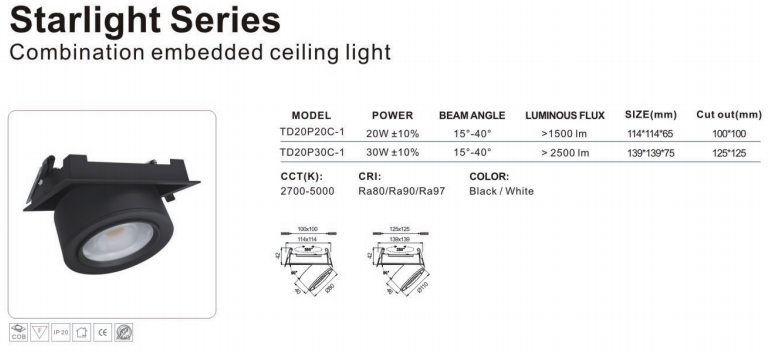

Product Parameters

Brand Name

VIMLED



Product Model

TD20P20C-1

TD20P30C-1




Power(W)

20W

30W




Lumen Flex (lm)

>1500lm

>2500lm




Dimensions(mm)

φ114×114×65

φ139×139×75




Cut Out(mm)

100×100

125×125




Beam Angle

15° - 40°



Input Voltage(V)

AC110-265V



Material

Die Cast Aluminum



CCT

2700K - 5000K



CRI

Ra80 / Ra90 / Ra97



Certification

CE,CCC,RoHS,TUV,BIS,SAA



Various Designs for Different Lighting Project Applications
