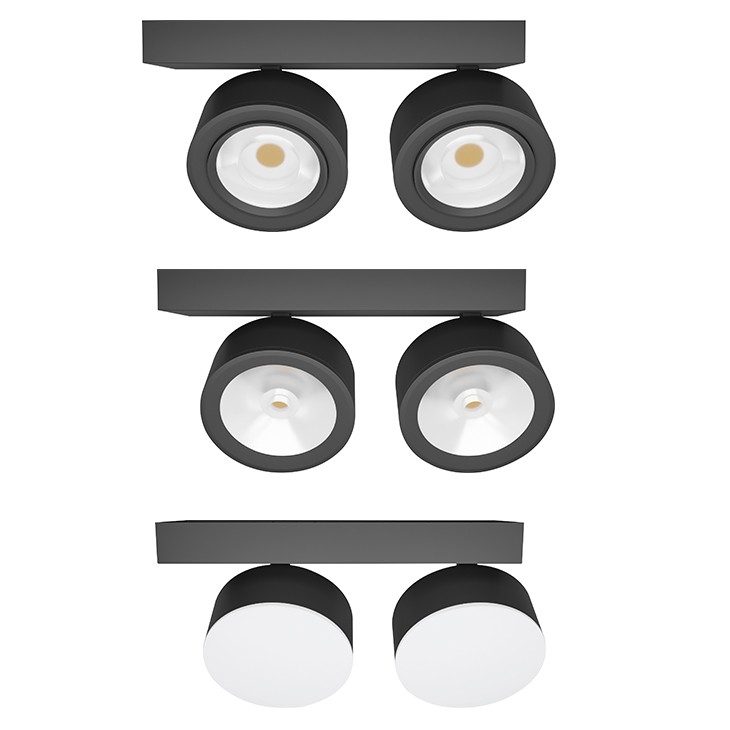

Surface Mounted Led Down Light 2 Heads

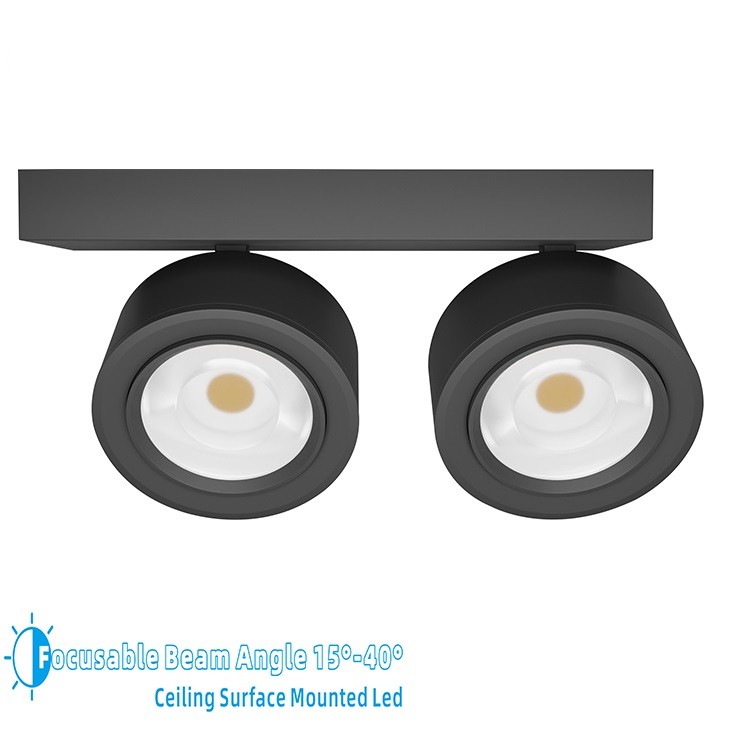

Surface Mounted Led Down Light 2 Heads Spotlight 20W Focusable Beams 15-40 Dia 80mm 3 Inch Ceiling Downlight Led

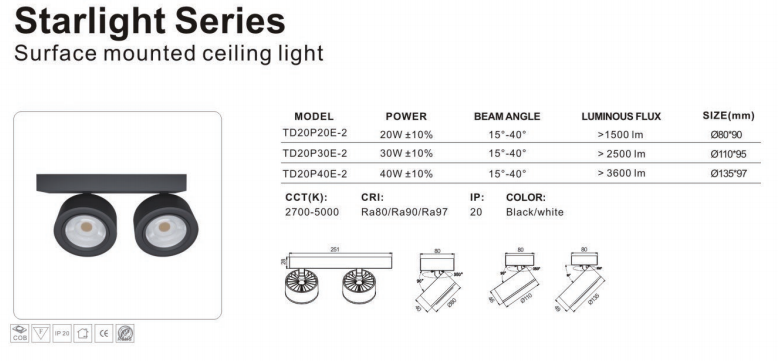

Product Parameters

Back to Home Page>>

Brand Name

VIMLED



Product Model

TD20P20E-2

TD20P30E-2

TD20P40E-2



Power(W)

20W

30W

40W



Lumen Flex (lm)

>1500lm

>2500lm

>3600lm



Dimensions(mm)

φ80×90

φ110×95

φ135×97



Beam Angle

15° - 40°



Input Voltage(V)

AC110-265V



Material

Die Cast Aluminum



CCT

2700K - 5000K



CRI

Ra80 / Ra90 / Ra97



Certification

CE,CCC,RoHS,TUV,BIS,SAA




Various Designs for Different Lighting Project Applications
