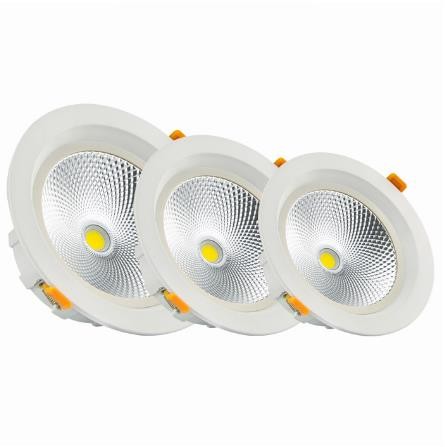

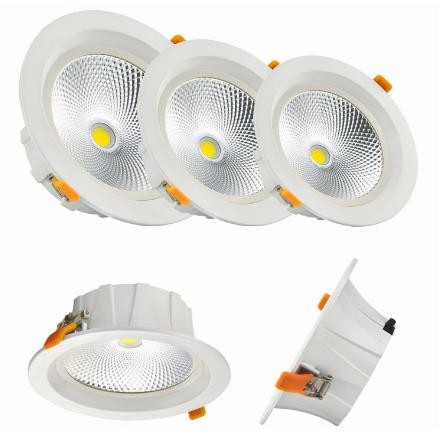

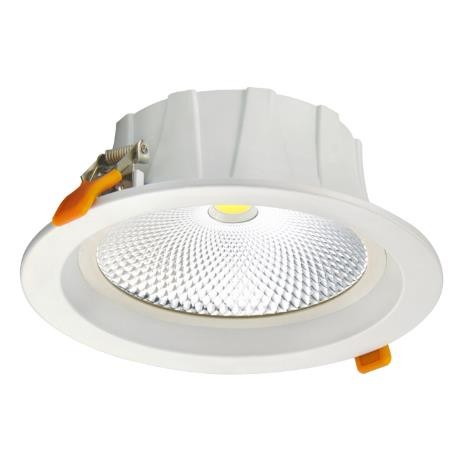

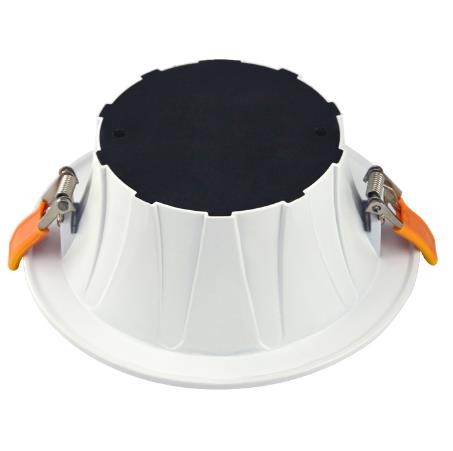

Non-Rotatable LED downlight

06H series LED down light advantages
1.High quality of alu housing and construction to make sure down light cooling good enough.
2.High quality of COB and driver solution to make sure down light quality stable enough.
3.Strong Engineer & QC team are good at customizing and offer flexible solution for competitive down light.

♦ Product Parameter

Model	TD06H20C	Sdcm & Ugr	<3 & <19
Power	5W / 7W / 12W / 18W / 25W / 30W	PF	>0.9
Beam Angle	90°	Flicker Leval	Flicker-free
AC Input	100-240V 50/60Hz or 220-240V 50/60Hz	Lifespan	30,000hrs or 50,000hrs
Material	Aluminum	Warranty	3 years or 5 years
Size	Φ186 * H75 mm	Certificate	CE / RoHS / SAA
Cut-Out	Φ155 – 185 mm	Payment term	T/T , LC , Others
CCT	3000K, 4000K, 5000K, 6000K or Customized	Port	FOB Guangzhou / Shenzhen
LM/W	90-110 lm/w	Packaging	Bag + Box + Carton
CRI	>80Ra , >90Ra
