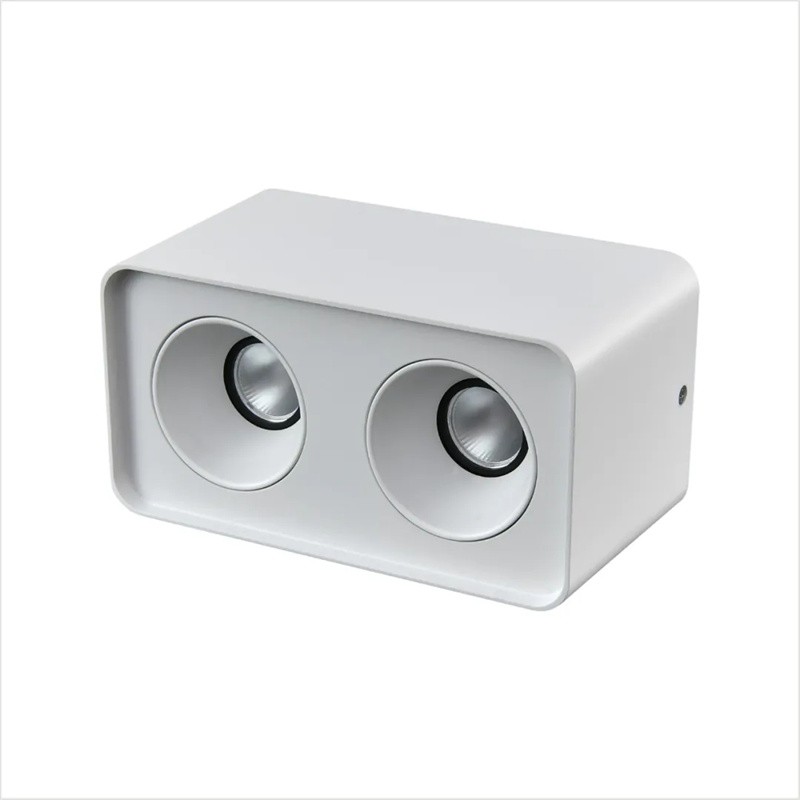

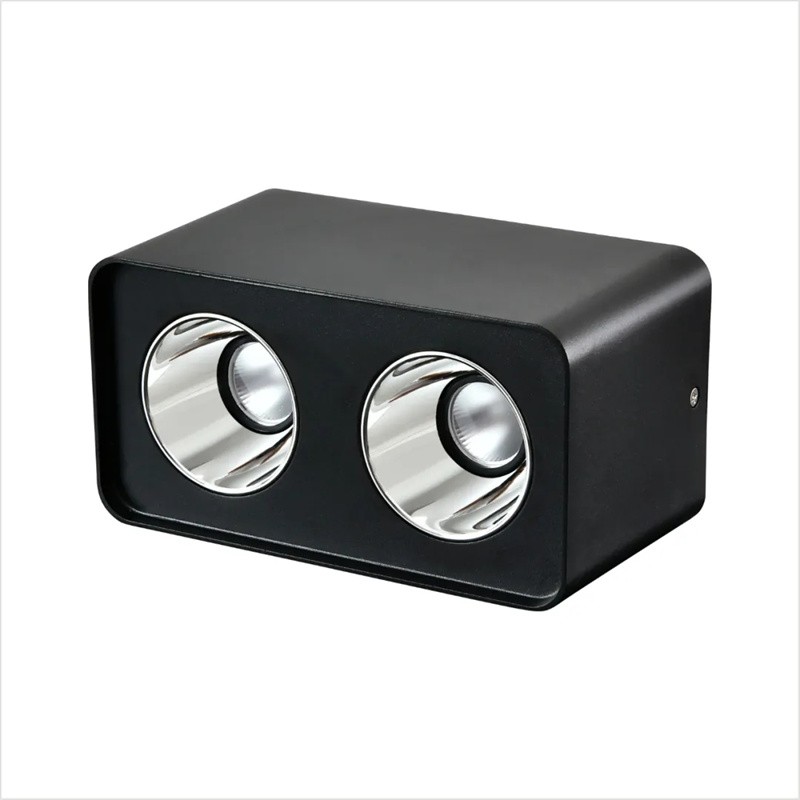

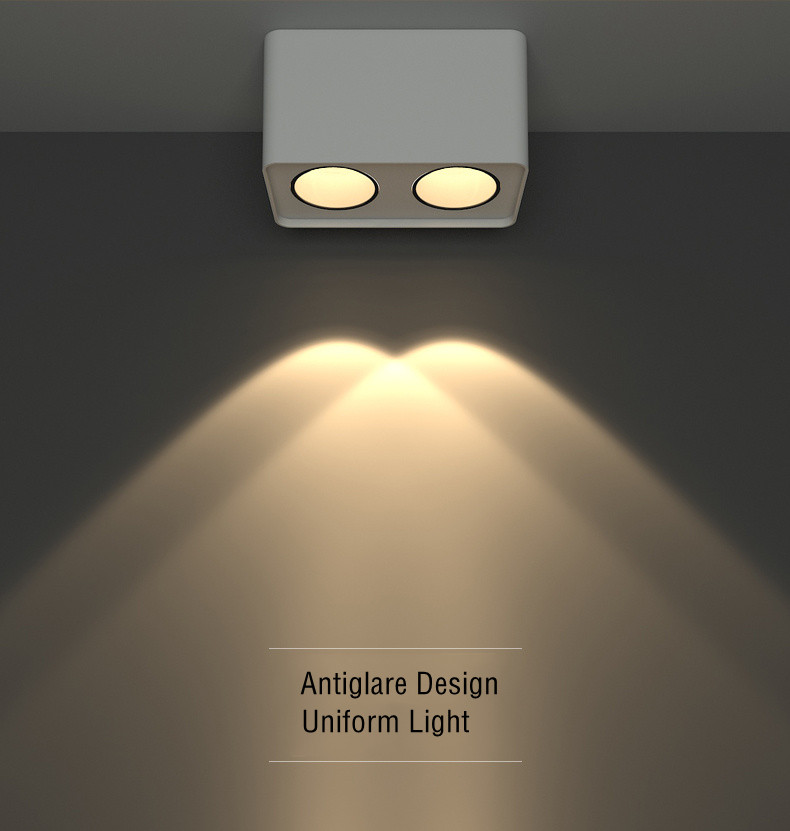

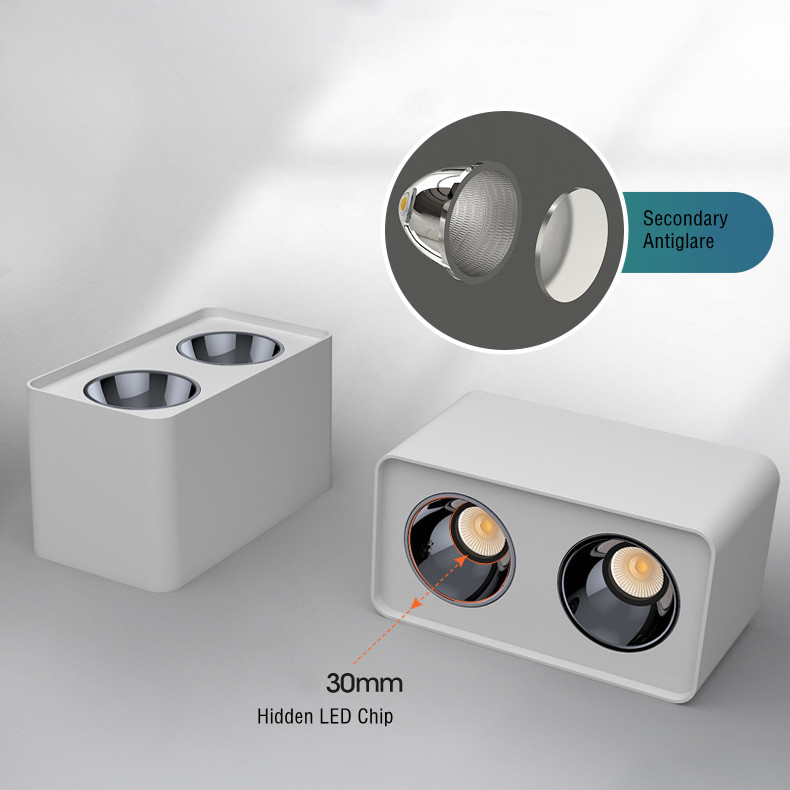

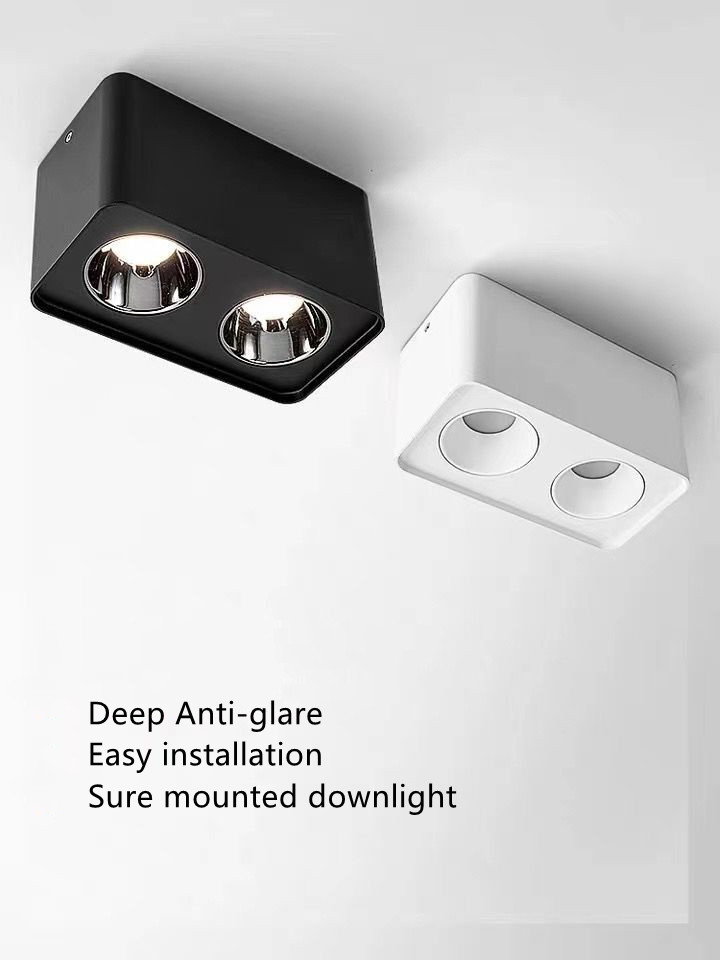

Surface Mounted Downlight Double Module Anti Glare Optics

Surface Mounted Downlight Double Module Anti Glare Optics

Product advantages:

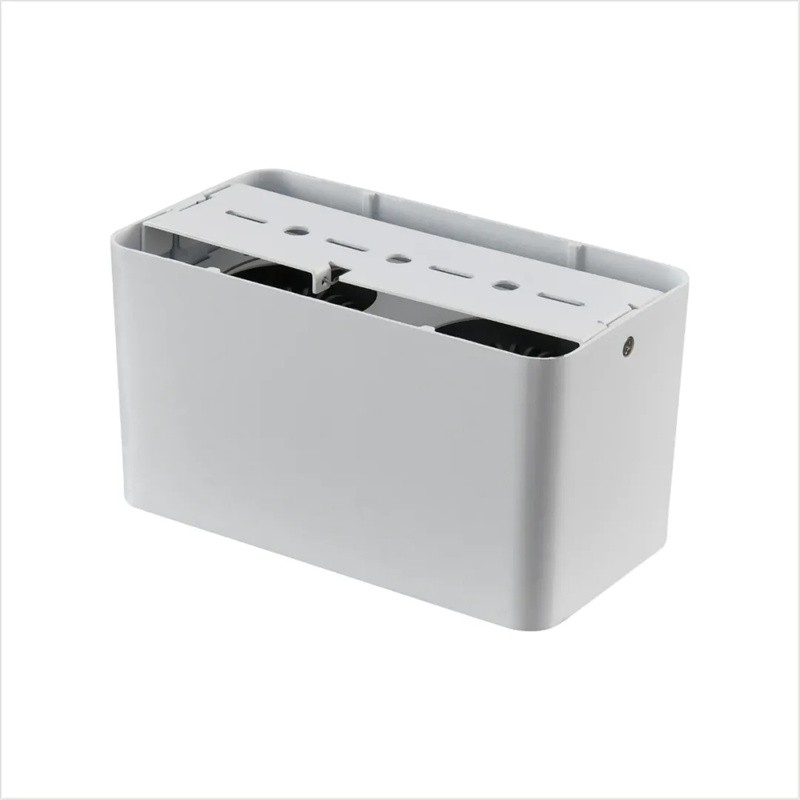

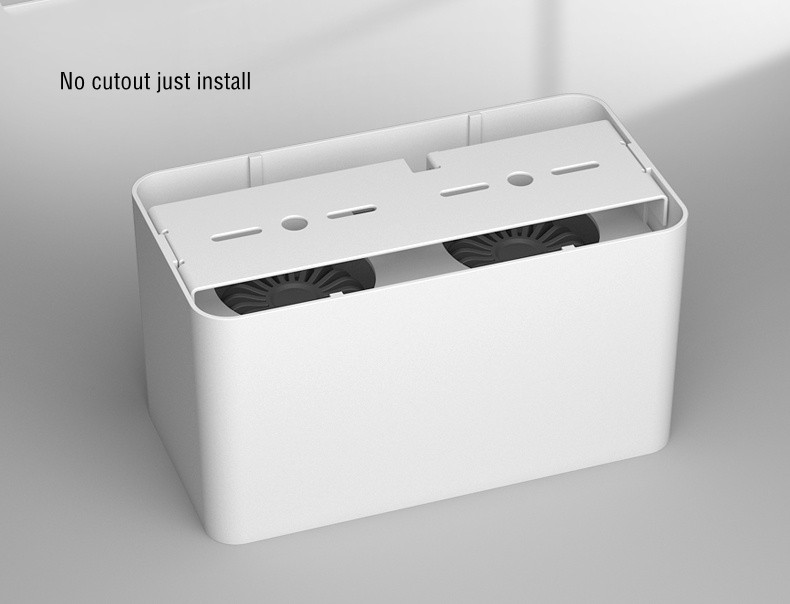

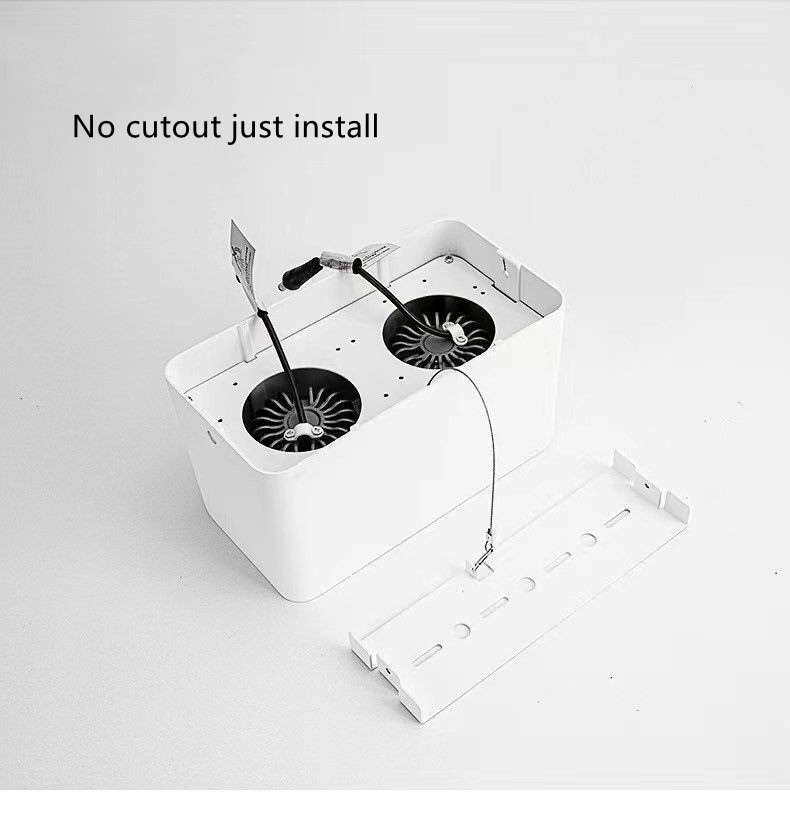

1. No need to make hole;

2. Single, Double, Triple, Four heads is available;

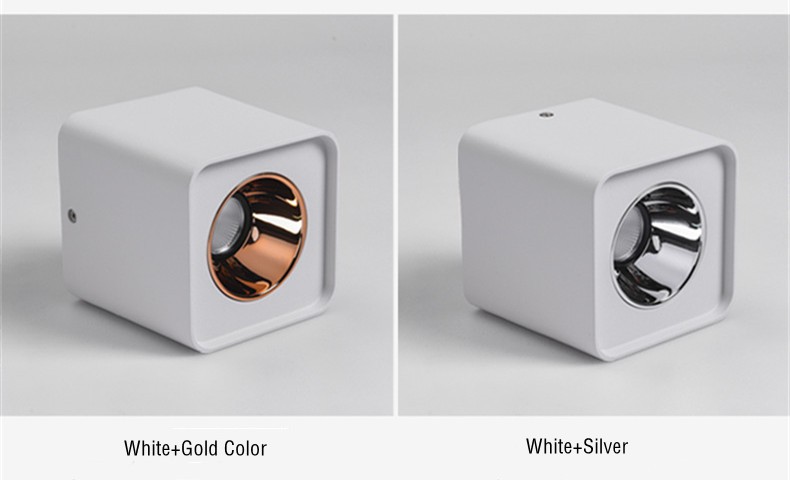

3. More optional reflectors: White, Black, Rose Gold, Chrome, Black Chrome;

4. High Power available max: 2*8W;

5. Lead time fast: 2-3 days;

6. High quality with CREE LED chip and Philips led driver or Citizen LED Chip and Tridonic Driver;

Product Description

Surface Mounted LED Downlight Specifications:

01. Power: 2*8W;

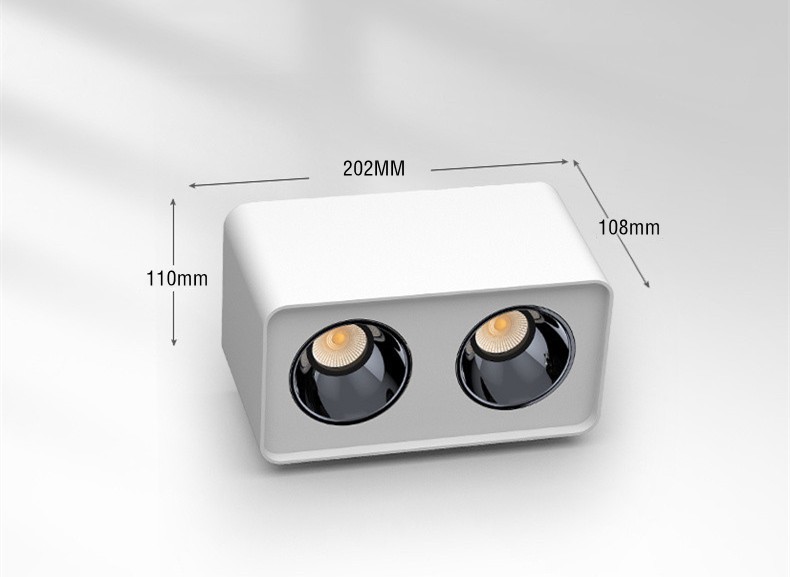

02. Diameter: L202*W108*110mm;

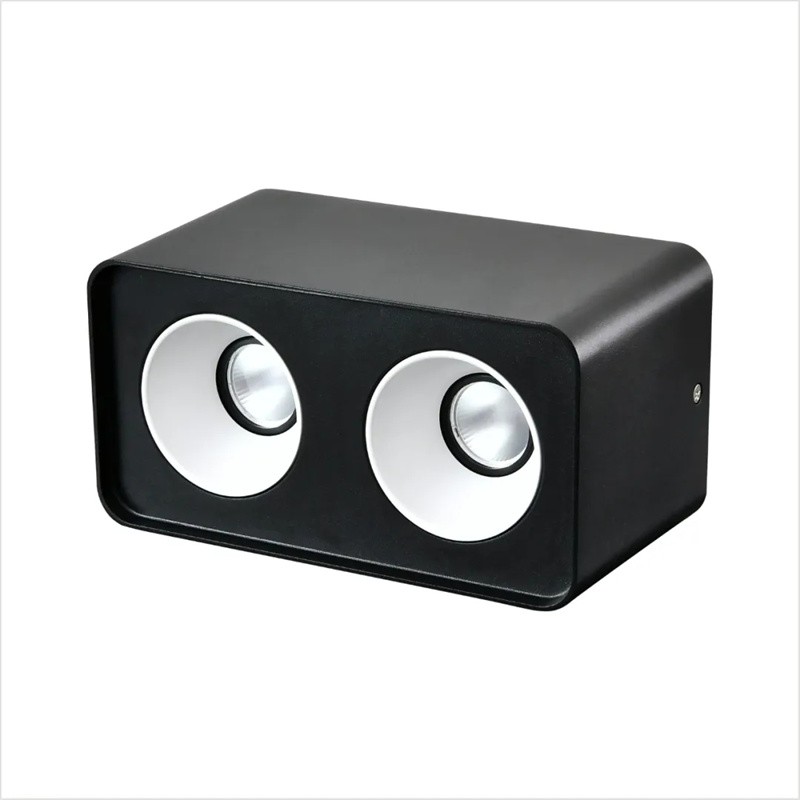

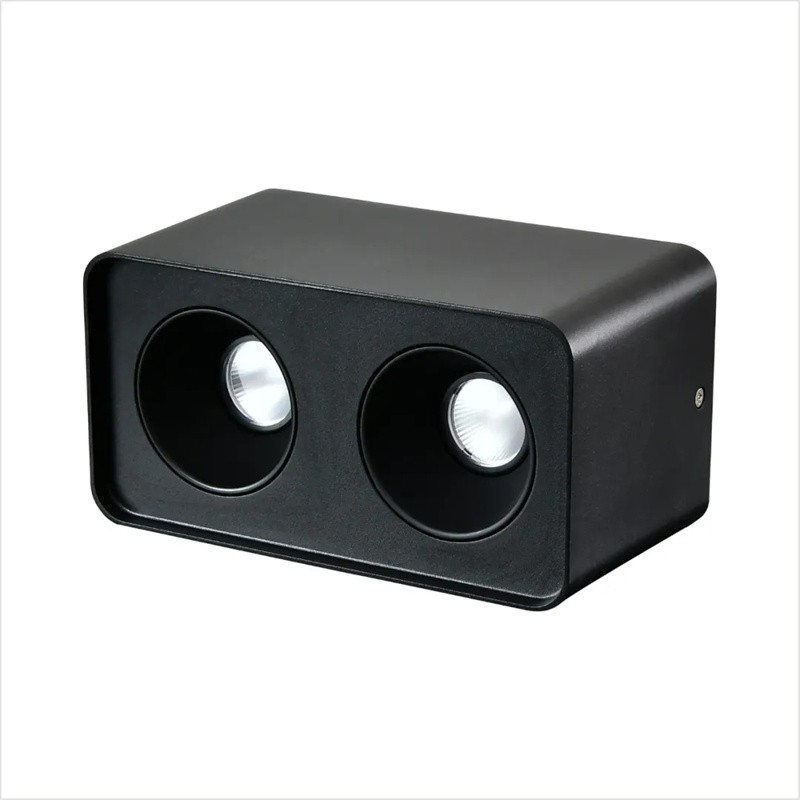

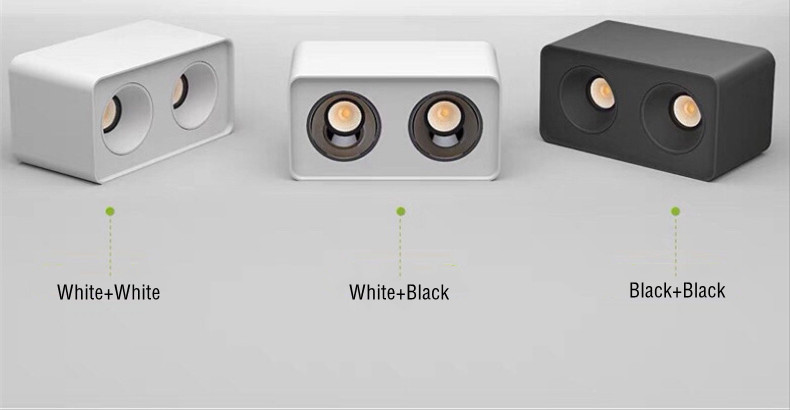

03. Full White or Full Black or White+Black;

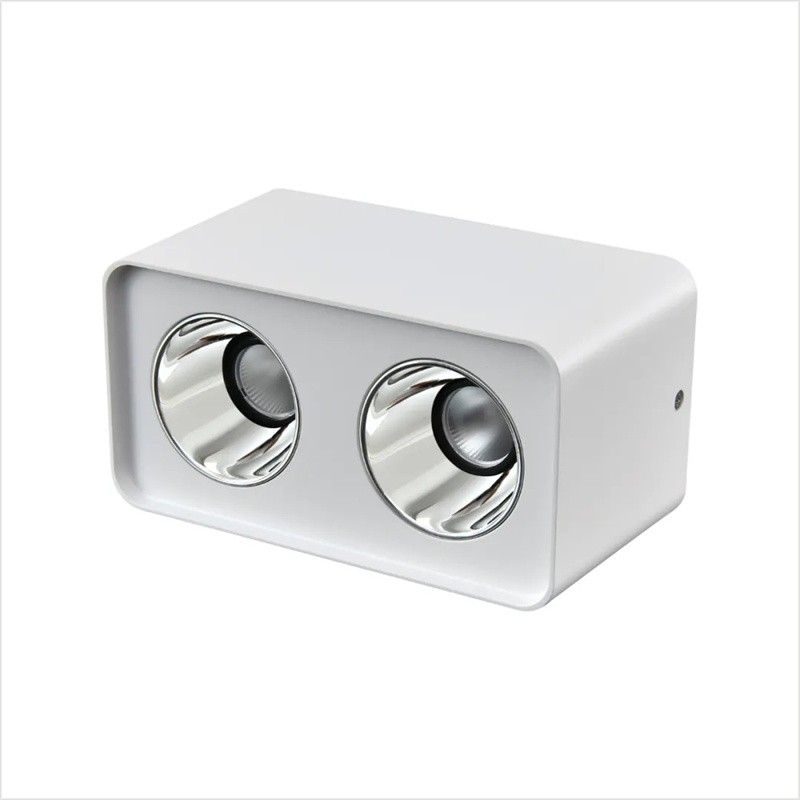

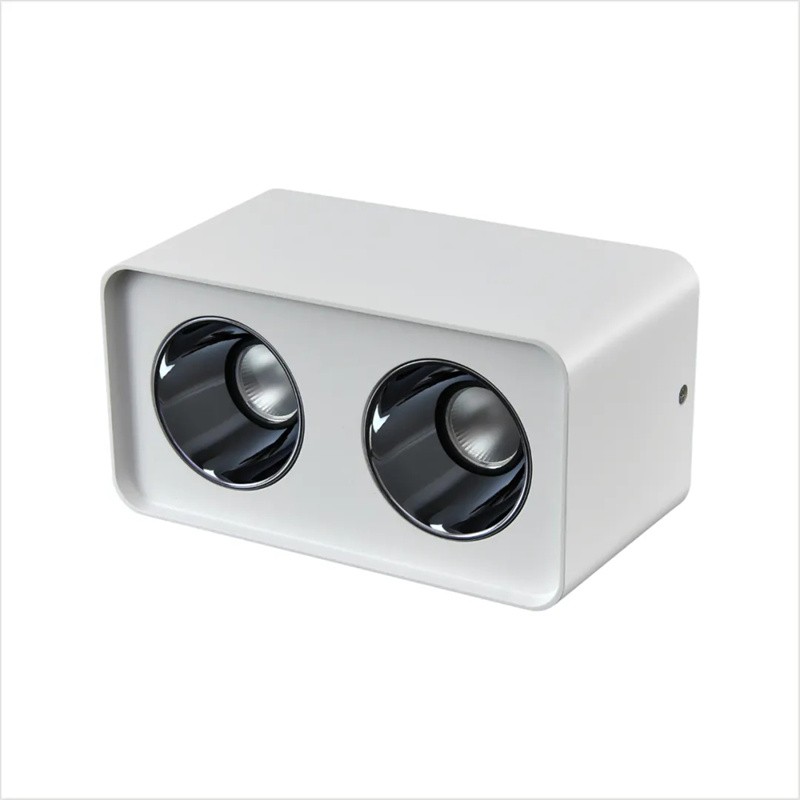

04. Reflector options: Chrome, Gold, Black Chrome;

05. Beam angle: 15/24/38 Degree;

06. LED Chip: CREE CXA1304;

07. CRI>90;

08. LED Driver: Philips LED Brand;

09. CCT: 2700K-6500K;

10. Lumen: 2*650lm;

11. Warranty: 3 years;

Product Paramenters

This is the parameters of the surface mounted downlight 15w with beam angle 15/24/36 degree

Power	Lumen	LED Chip	CRI	CCT	LED Driver	Diameter (mm)	Reflector
8W	650lm	CREE CXA1304	RA>90 RA>95	2700K 3000K 3500K 4000K 5000K 5700K 6500K	Coie LED Driver TRIDONIC Driver	L108W108H110	White
2x8W	2x650lm					L202W108H110	Black
3x8W	3x650lm					L298W108H110	Golden
4x8W	4x650lm					L202W202H110	Silver

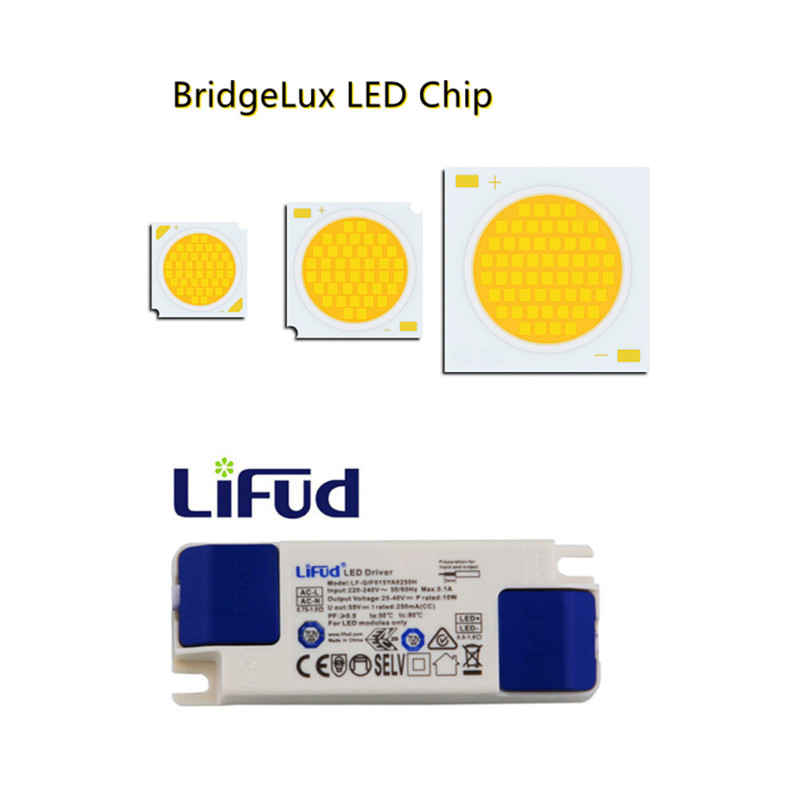

BridgeLux Chip LED COB:

1. CRI>90/95;
2. Size same as CREE CXA1507 for 10W 12W;
3. Size same as CREE CXA1512 for 15W 20W;
4. Size same as CREE CXA1816 for 20W 25W;
5. Size same as CREE CXA2520 for 30W 40W;
6. Size same as CREE CXA2530 for 50W;
7. LED Lumen: 120lm/w
8. LED Voltage: DC36V;
9. CCT: 2700/3500K/4000K/5000K/ 6500K;
10. LED Material: Aluminum PCB;
11. BridgeLux LED Chip;

Lifud LED Driver and Dimmable Driver

1. Input Voltage: 220-240VAC;
2. 6W 7W 10W 12W 15W PF>0.50;
3. 20W 25W 30W 35W 40W 50W 60W PF>0.90;
4. Flicker Free;
5. Warranty 3/5 Years both available;
6. Output Voltage: 27-42VDC;
7. CE RoHS Approval;
8. Triac Dimmable Smoothly;
9. 0-10V Dimmable Smoothly;
10. Dali Dimmable Smoothly;
11. CCT Tunable Dimmable Smoothly;
12. DMX Dimmable;

Customer Photos

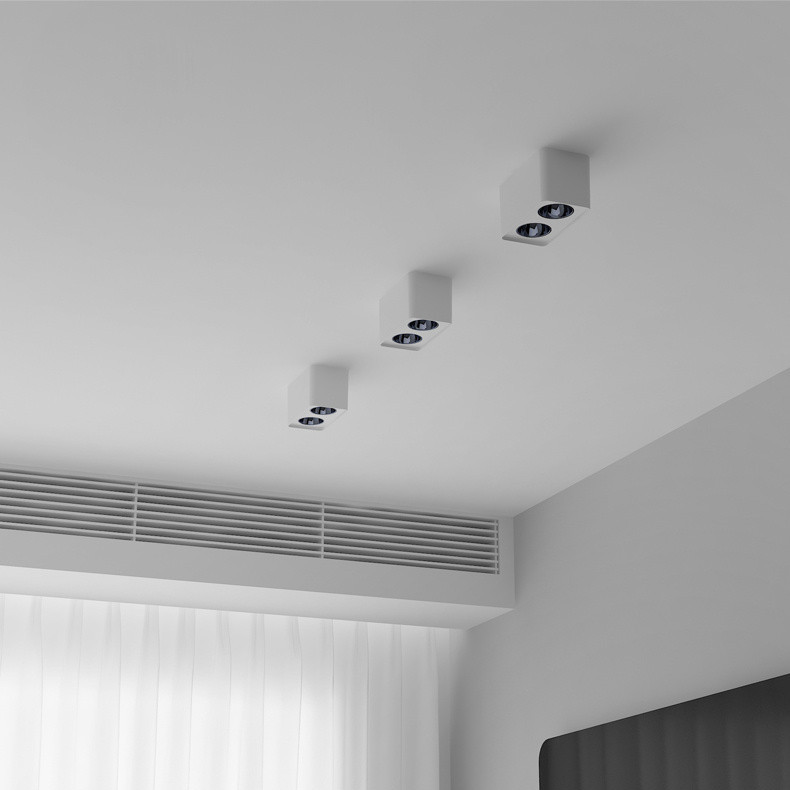

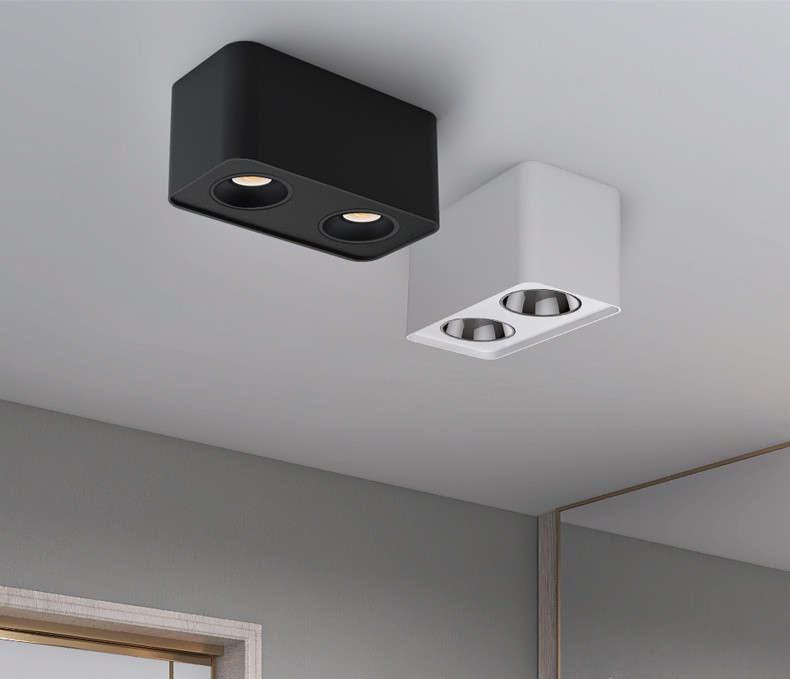

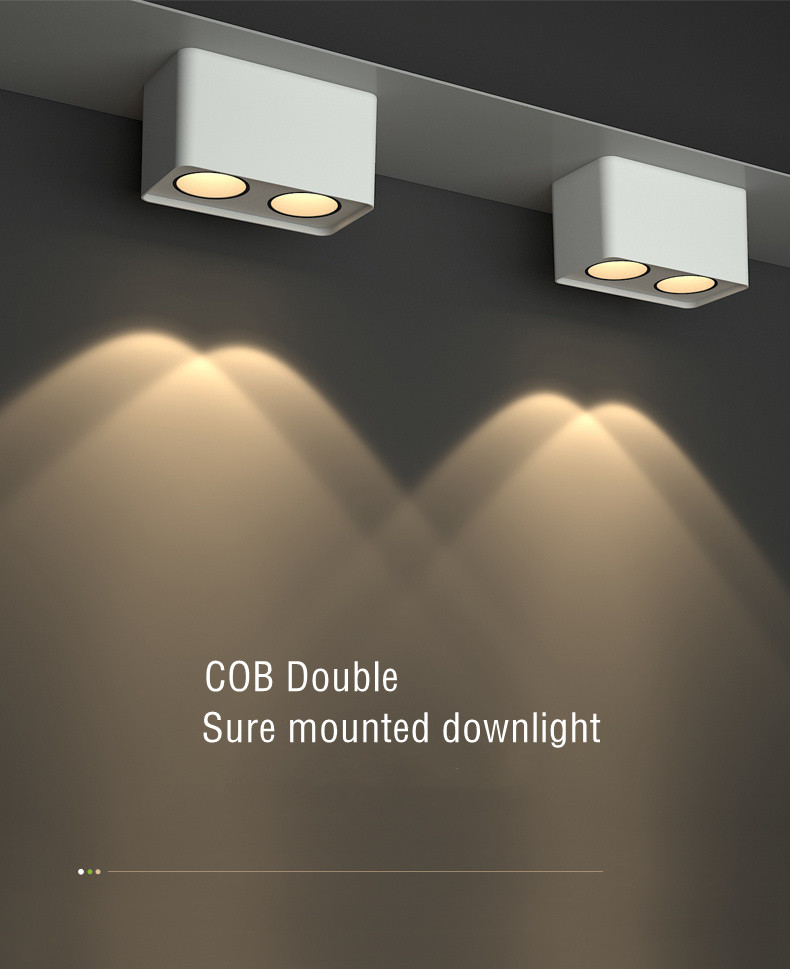

Double Heads Surface Mounted Light Project Case

This surface mounted downlight white black is widely used in home, hotel, villa, many ceiling places.

It is no need to make hole, and there is round, square, double, triple heads, and adjustable heads, many options. The reflector colors can be changed too.
