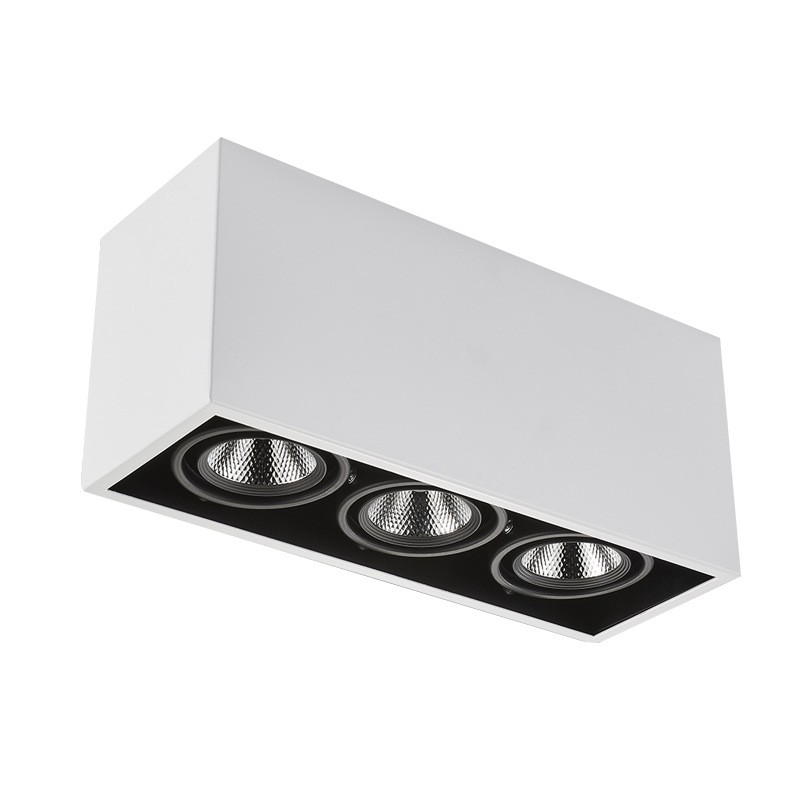

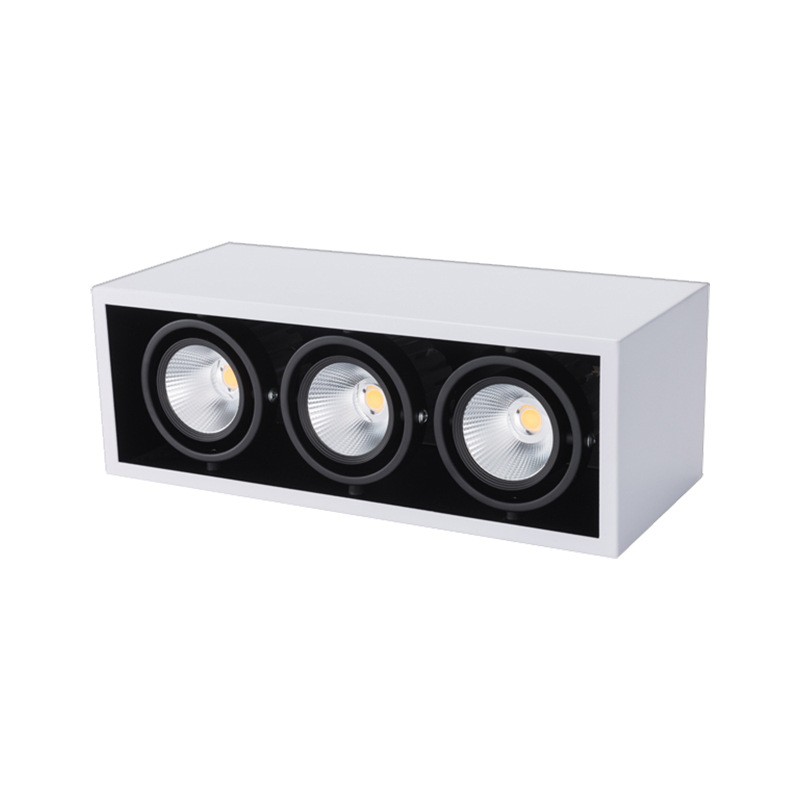

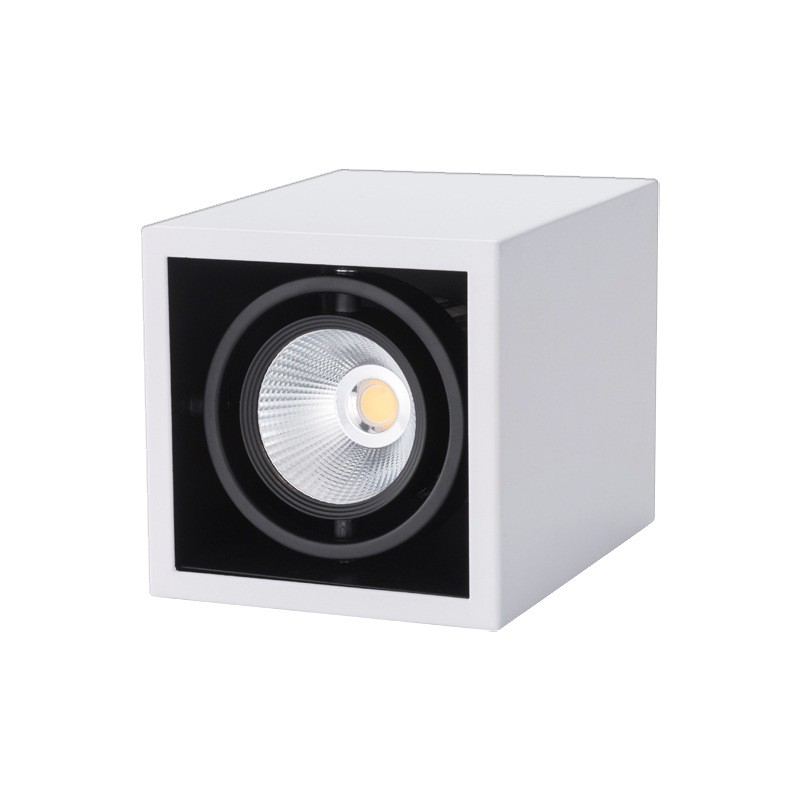

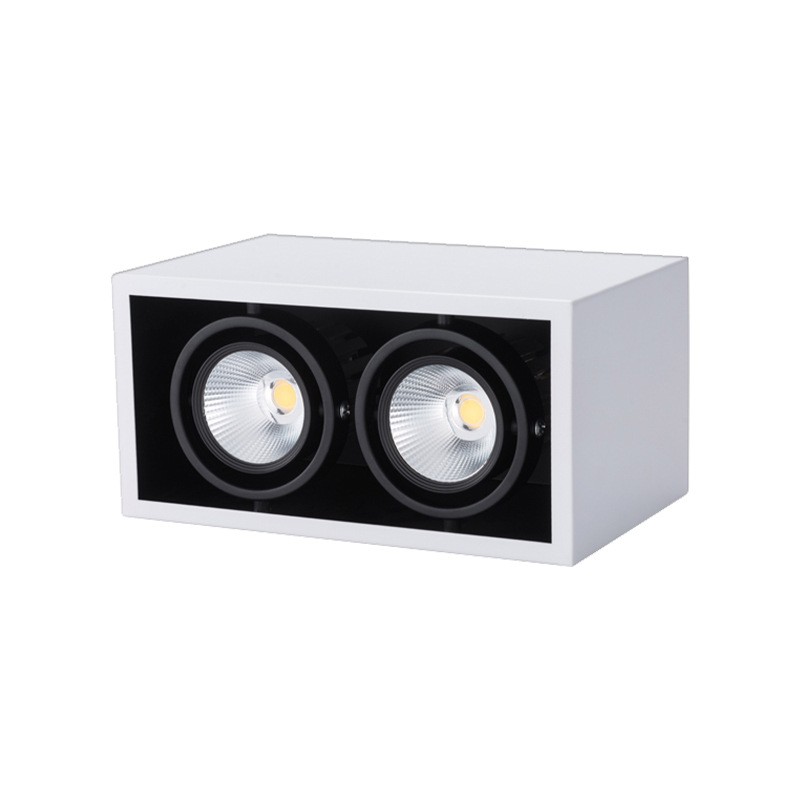

Surface Mounted LED Downlight Adjustable Angle

This surface mounted ceiling light is very easy to install, here's more details. 24/36 degrees.

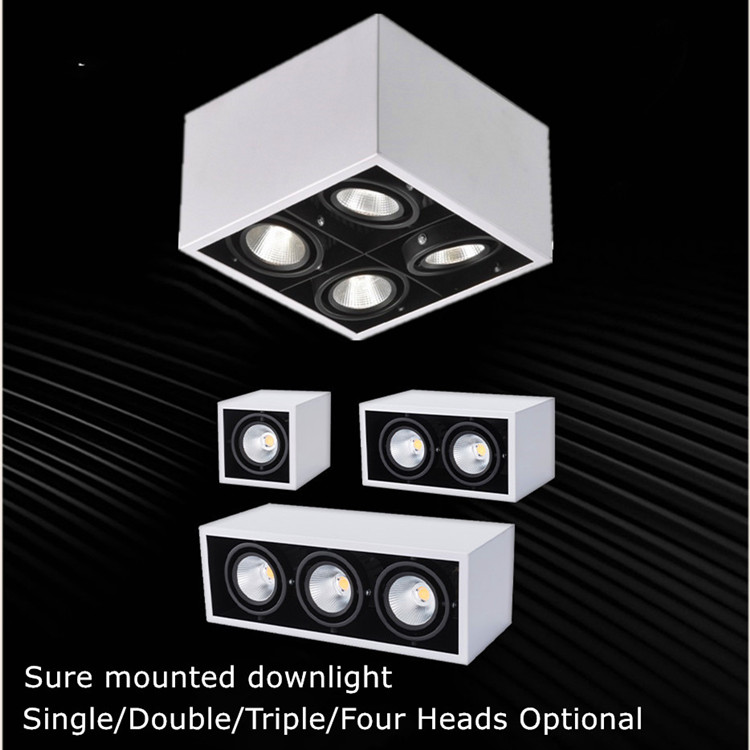

And the power can be 7w to 12w, which has 1/2/3/4 heads.

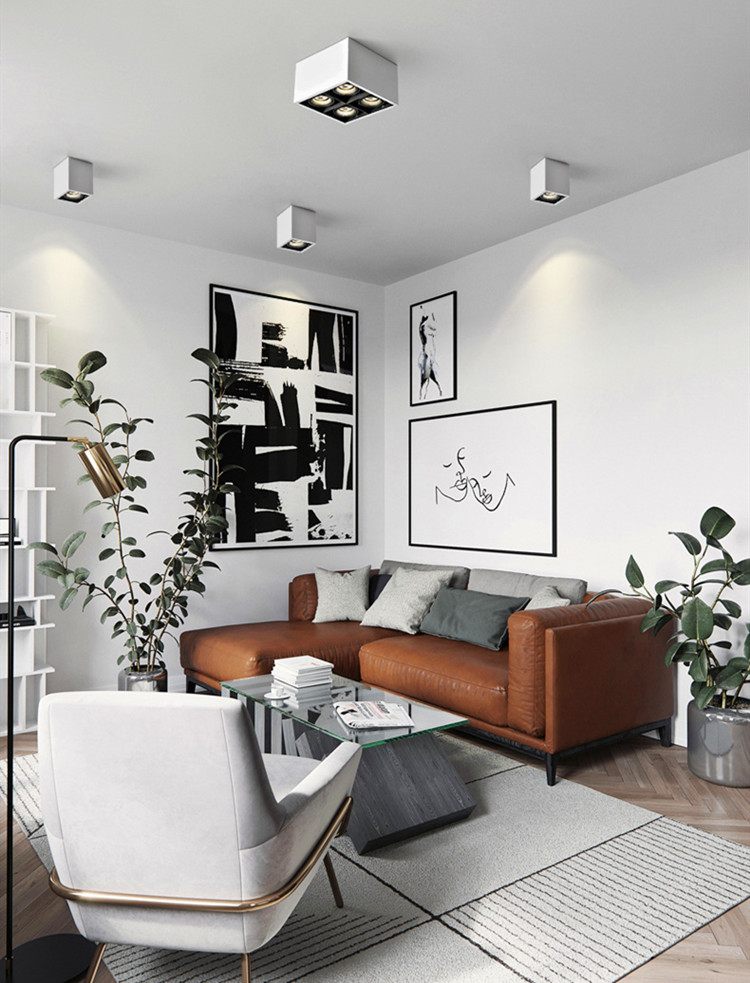

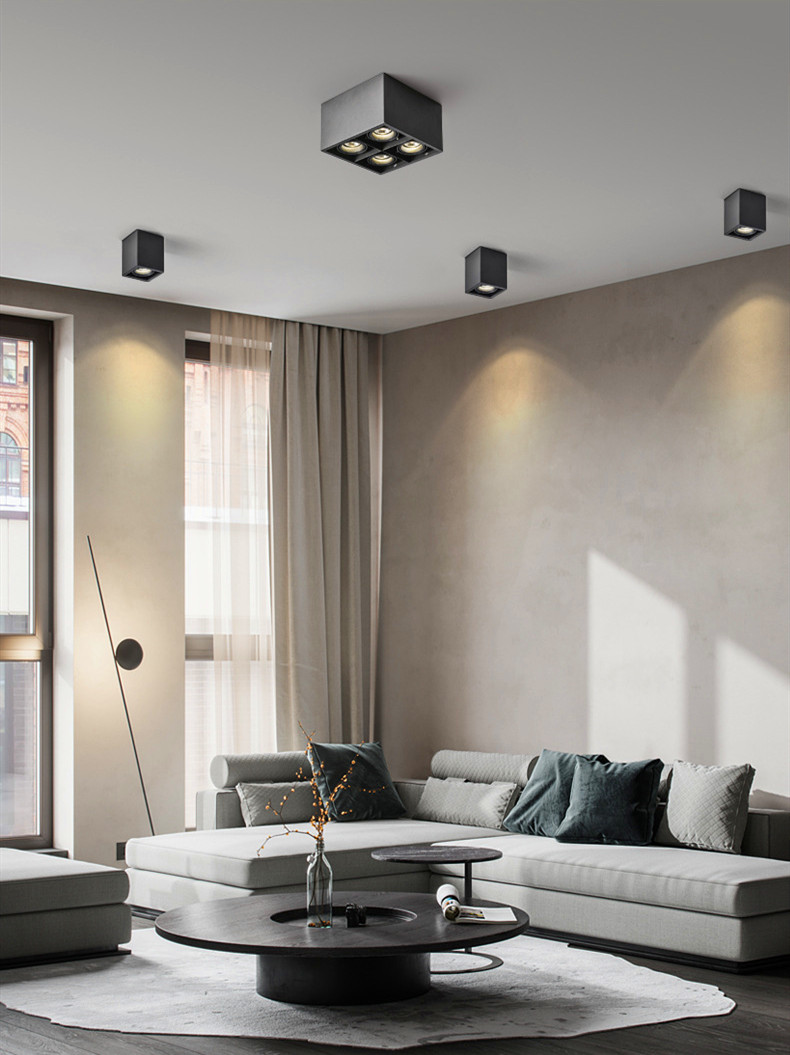

Surface Mounted Downlight Project Case

The surface mounted downlight installation is very convenient to exchange new one.

And our lamp color temperature can be 2700K/3000K/3500K/4000K/5000K/5700K/6500K. And the

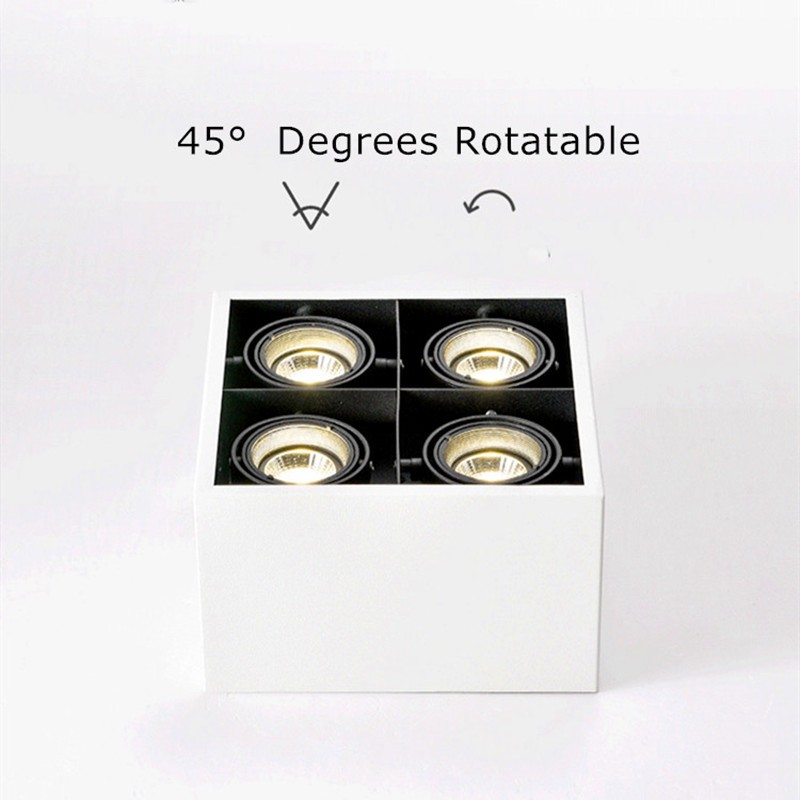

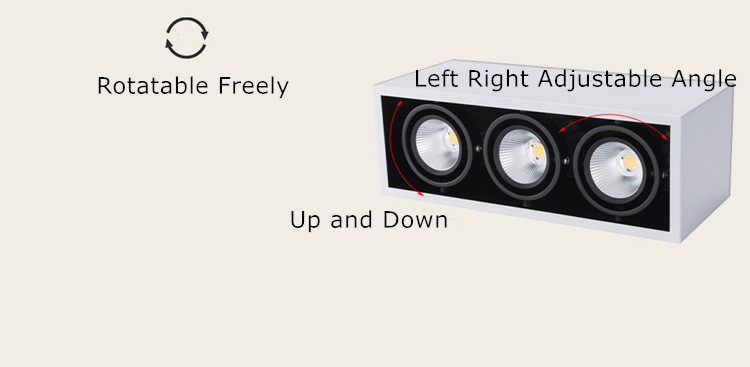

head is adjustable, rotatable to lighting everywhere.

We use CREE/CITIZEN/Philips LED Chip, LED driver: Philips or Tridonic or DALI/0-10V dimmable.

Product Paramenters

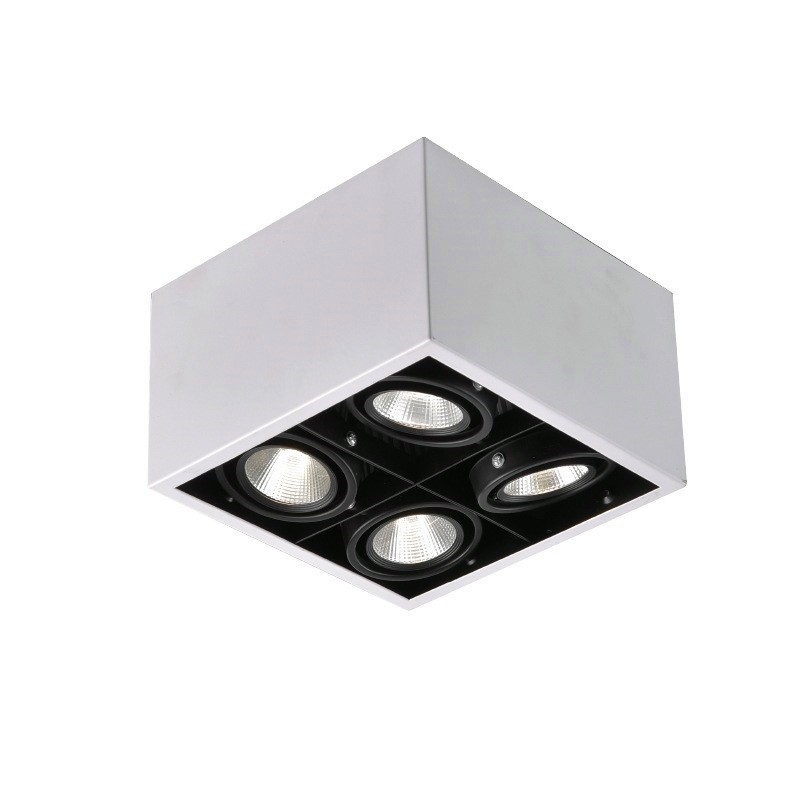

The 4 Heads Surface Mounted Downlight Specification:

01. Power: 4*10W, total 42W;

02. Size: L200*W200*H120mm;

03. LED Chip: CREE CXA1507;

04. CRI>90;

05. CCT: 2700K/3000K/3500K/4000K/5000K/6500K;

06. LED Driver: Philips Brand;

07. Input Voltage: 220-240VAC;

08. Lumen: 3600lm;
09. Beam angle: 24/36°;

10. Flicker Free;

11. Install Way: Surface Mounted Ceiling;

12. Warranty 3 years;

The Surface Mounted Down Light Parameters:

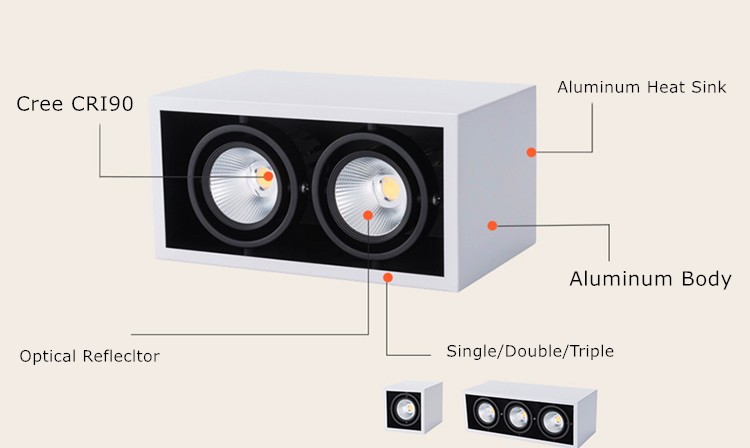

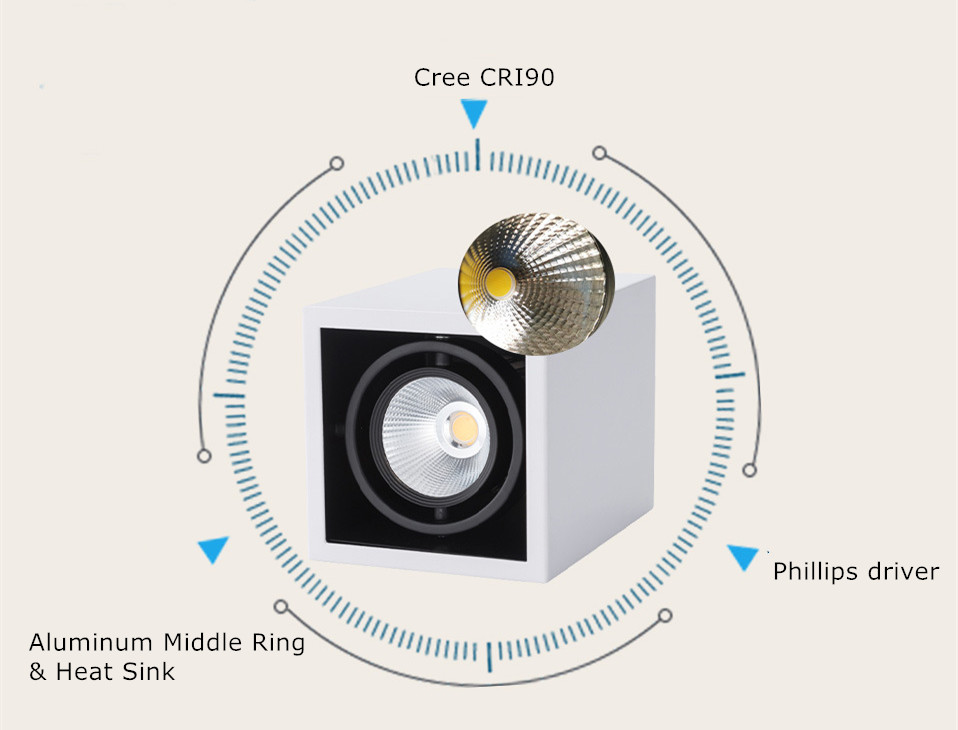

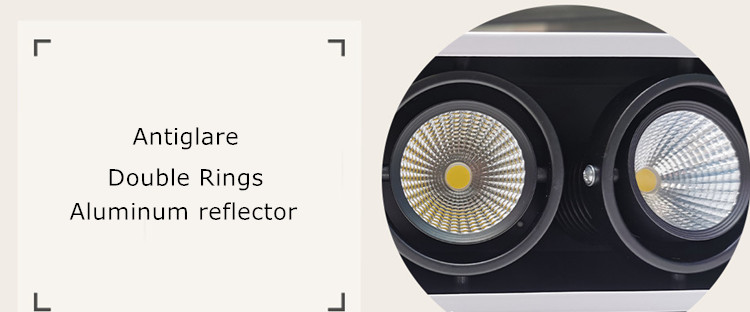

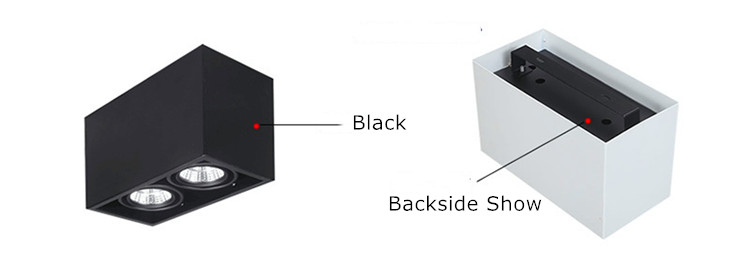

Detailed Images

Aluminum Heat Sink + Aluminum Face Ring

Very thicked aluminum alloy to make it good dissipation !

CREE LED Chip

1. CRI>90/95;
2. CREE CXA1507 for 10W 12W;
3. CREE CXA1512 for 15W 20W;
4. CREE CXA1816 for 20W 25W;
5. CREE CXA2520 for 30W 40W;
6. CREE CXA2530 for 50W;
7. MAX: 80W;
8. LED Lumen: 120lm/w
9. LED Voltage: DC37V;
10. CCT: 2700/3500K/4000K/5000K/ 6500K;
11. LED Material: Aluminum PCB;
12. Imported American LED Chip;

Philips LED Driver

1. Input Voltage: 220-240VAC;
2. 6W 7W 10W 12W PF>0.50;
3. 15W 20wW 25W 30W 35W 40W 50W 60W PF>0.90;
4. Flicker Free;
5. Warranty 3/5 Years both available;
6. Output Voltage: 27-42VDC;
7. CE RoHS Approval;
8. Triac Dimmable Smoothly;
9. 0-10V Dimmable Smoothly;
10. Dali Dimmable Smoothly;
11. CCT Tunable Dimmable Smoothly;
12. DMX Dimmable All available;

Installation Instructions
