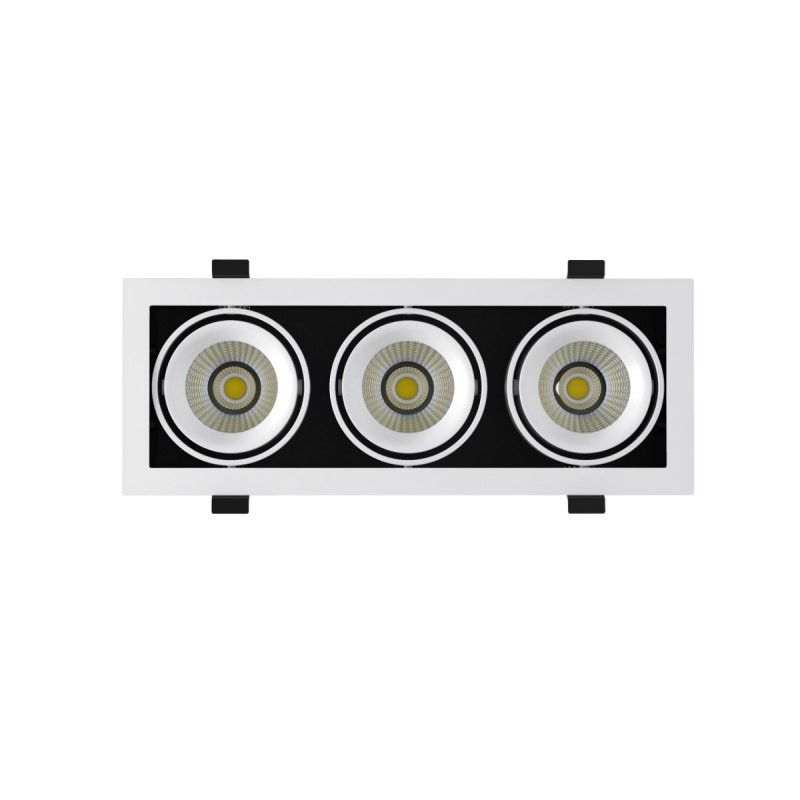

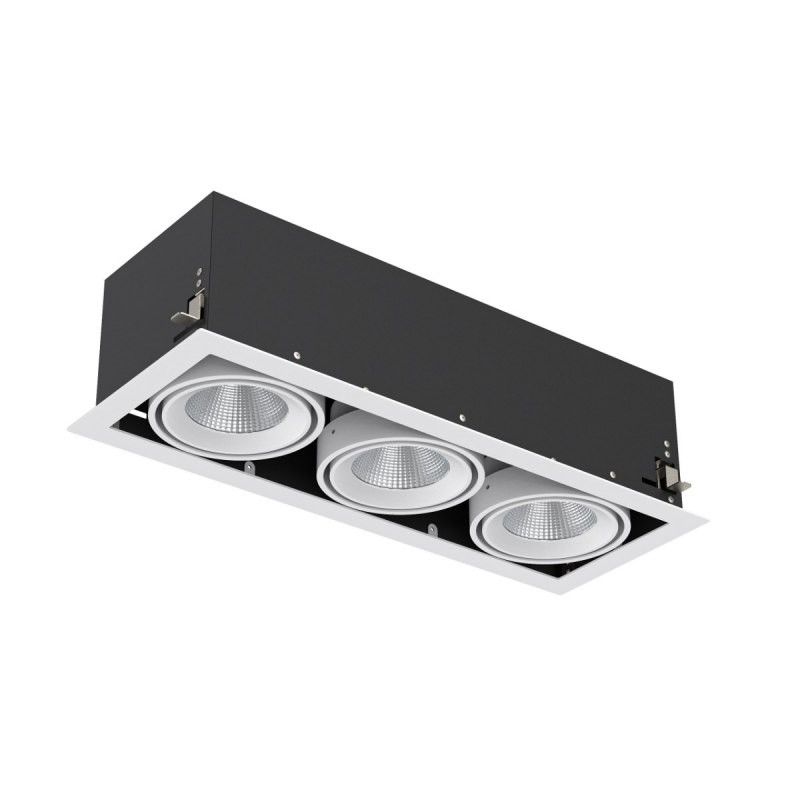

LED Grill Light 30W

The LED grill light LUX series with high-performance heat sink, lens with reflector make the light uniform, 15°/24°/38°/60° beam angle for your options. Single head, double heads and triple heads provide more choices for you. High CRI brings excellent lighting effect, adjustable direction offers various lighting orientation.

Features:

  • Durable die-casting aluminum body

  • A variety of specifications for you to choose:10W/20W/30W

  • Beam angle: 15°/ 24°/ 38°/ 60° optional

  • Flicker free driver, PF>0.9, Triac Dimmable,1-10v dimmable, DALI dimmable driver available on request


Model
VIM-DD1010-C10WVIM-DD1810-C20WVIM-DD2810-C30W
Power(W)
10W20W30W

LED Current(mA)

250mA

500mA

750mA

LED Chip

Bridgelux/CREE/Epistar

CCT

3000K / 4000K / 5700K

Beam Angle

15°/ 24°/ 38°/ 60°

CRI

Ra≥80

Life Span

30000 Hours

Dimensions(mm)

105×105×80mm

185×105×80mm

277×105×80mm

Cut-out(mm)

95×95mm

175×95mm

265×95mm

IP Grade

IP54



LED Grill Light Manufacturer

VIM Lighting factory is a professional LED grill light manufacturer and LED grill light supplier, we focusing in high quality Commercial Lighting, Residential Lighting production and LED grill light OEM/ODM service. Professional fixtures are downlight supplier, LED Track light, Pendant Light, Linear Lighting.

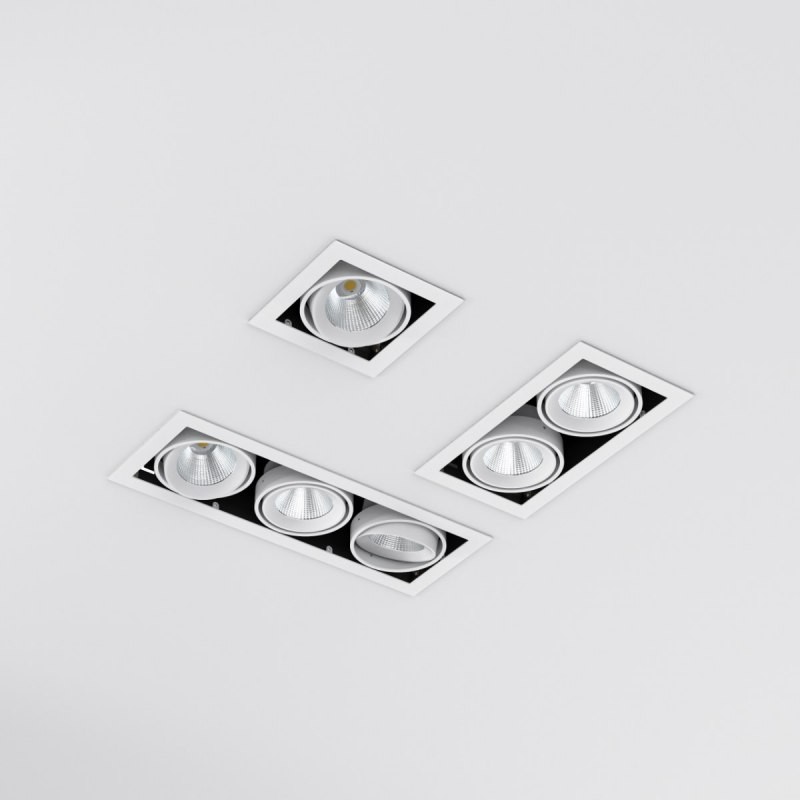

Application Scenarios

Widely used in hotels, restaurants, shops, offices, supermarkets, living roomskitchens and residental lighting etc.
