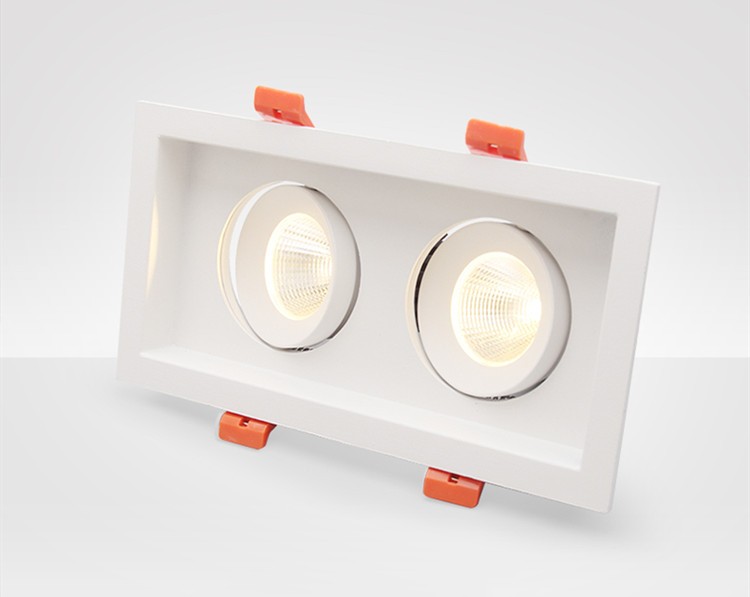

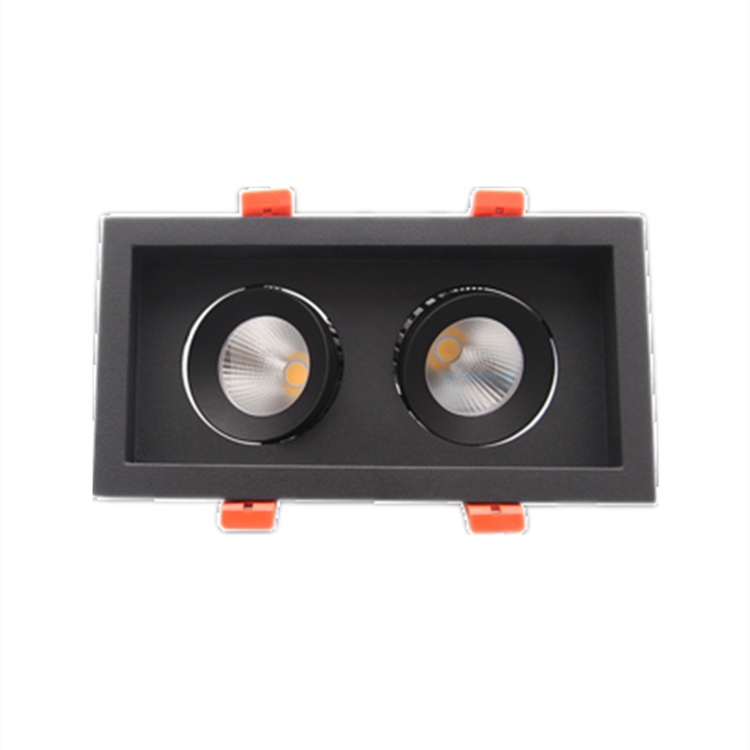

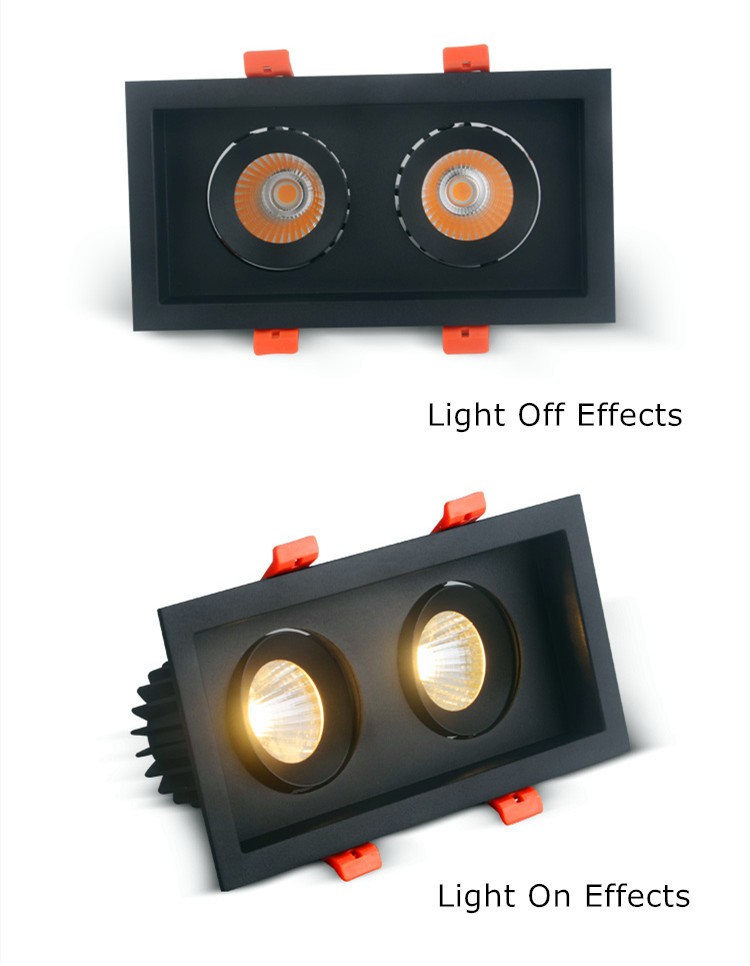

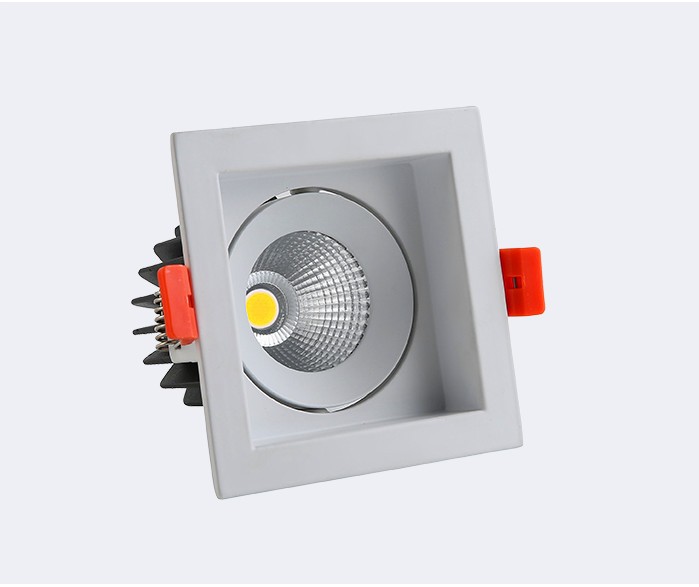

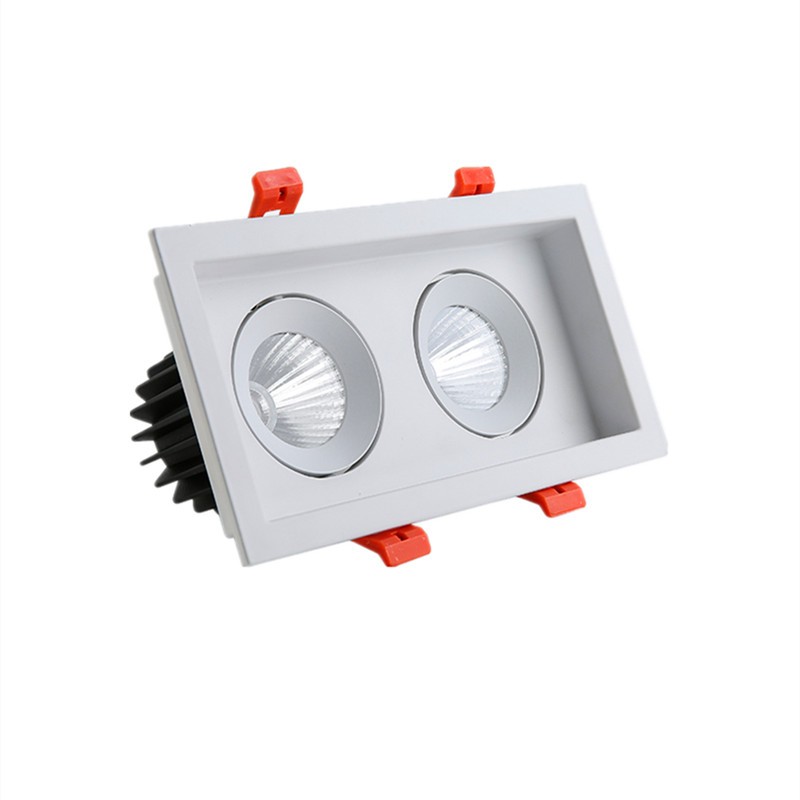

Square LED Grille Downlight Single double tri modules

Aluminum Recessed 10W 12W Square Downlight Adjustable LED Mini Spotlights LED Downlight Square White

The specification of the square led white downlight:

1. Power: 2*10W;

2. Size: L230*W115*H100mm;

3. Cutout: L210*W100mm;

4. CREE CXA1507 2pcs;

5. Lumen: 2*1000lm;

6. CRI>90;

7. CCT: 2700K/3000K/3500K/4000K/5000K/5700K/6500K;

8. Philips Driver 2pcs;

9. Input Voltage: 220-240VAC;

10. Warranty 3 Years;

11. Head is Adjustable;

The advantage of this square downlight adjustable:

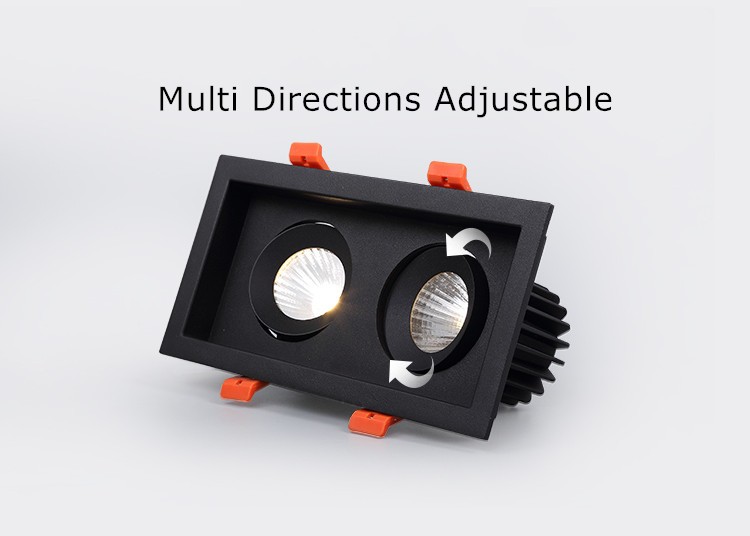

1. Adjustable left, right, up and down;

2. Square shape or double heads;;

3. Beam angle: 15/24/38/60°;

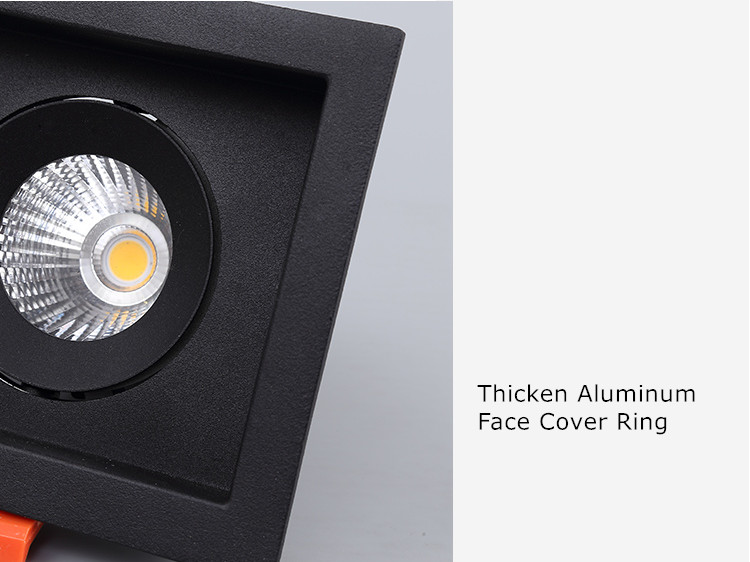

4. Steps trim anti glare UGR<19;

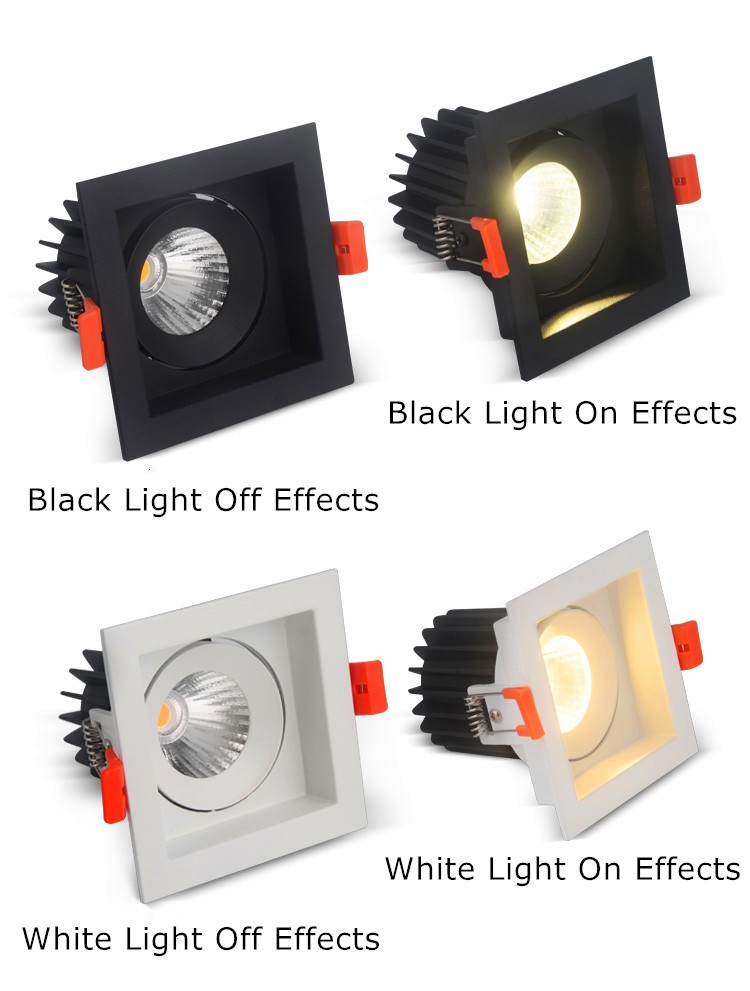

5. Full white or Full black;

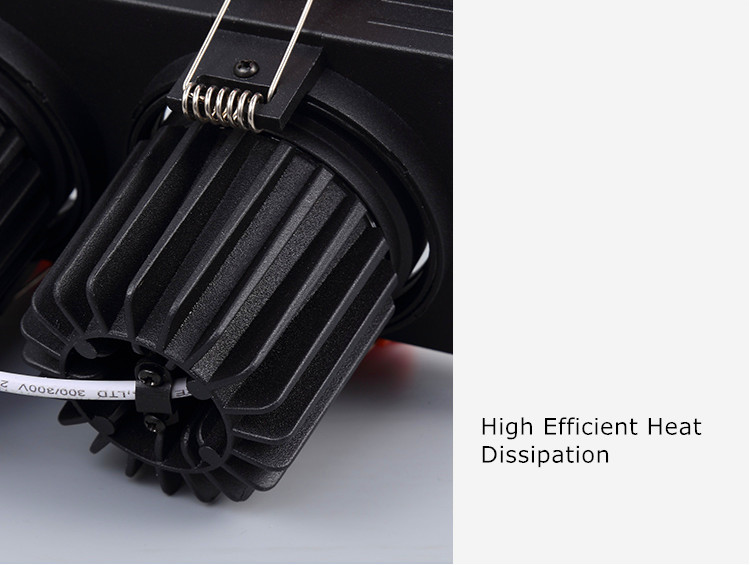

6. Die casting aluminum with very good heat dissipation;

7. OEM ODM welcome；

Square Recessed Downlight Adjustable Parameters

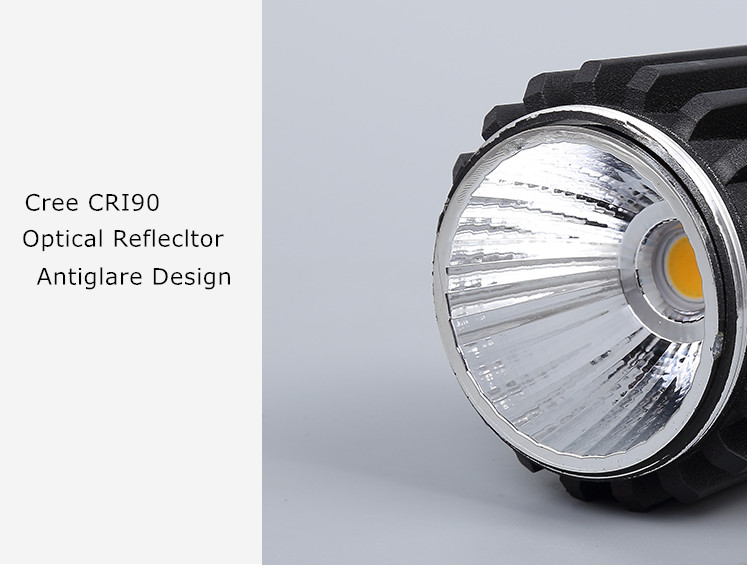

CREE LED Chip Details:

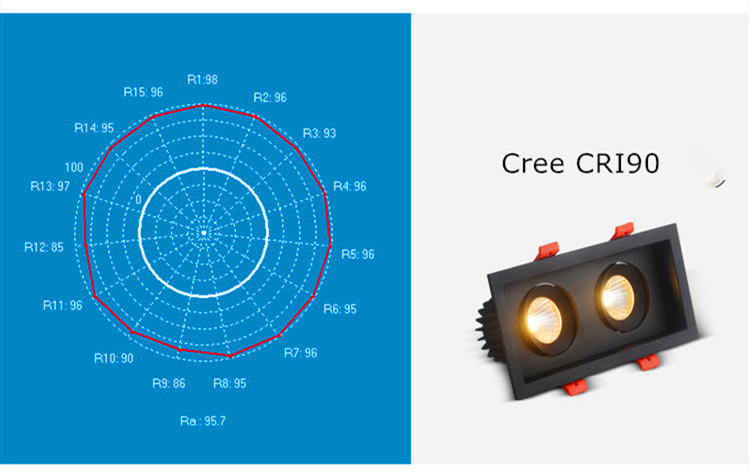

1. CRI>90/95;
2. CREE CXA1507 for 10W 12W;
3. CREE CXA1512 for 15W 20W;
4. CREE CXA1816 for 20W 25W;
5. CREE CXA2520 for 30W 40W;
6. CREE CXA2530 for 50W;
7. MAX: 80W;
8. LED Lumen: 120lm/w
9. LED Voltage: DC37V;
10. CCT: 2700/3500K/4000K/5000K/ 6500K;
11. LED Material: Aluminum PCB;
12. Imported American LED Chip;

Philips Driver Details:

1. Input Voltage: 220-240VAC;
2. 6W 7W 10W 12W PF>0.50;
3. 15W 20wW 25W 30W 35W 40W 50W 60W PF>0.90;
4. Flicker Free;
5. Warranty 3/5 Years both available;
6. Output Voltage: 27-42VDC;
7. CE RoHS Approval;
8. Triac Dimmable Smoothly;
9. 0-10V Dimmable Smoothly;
10. Dali Dimmable Smoothly;
11. CCT Tunable Dimmable Smoothly;
12. DMX Dimmable;

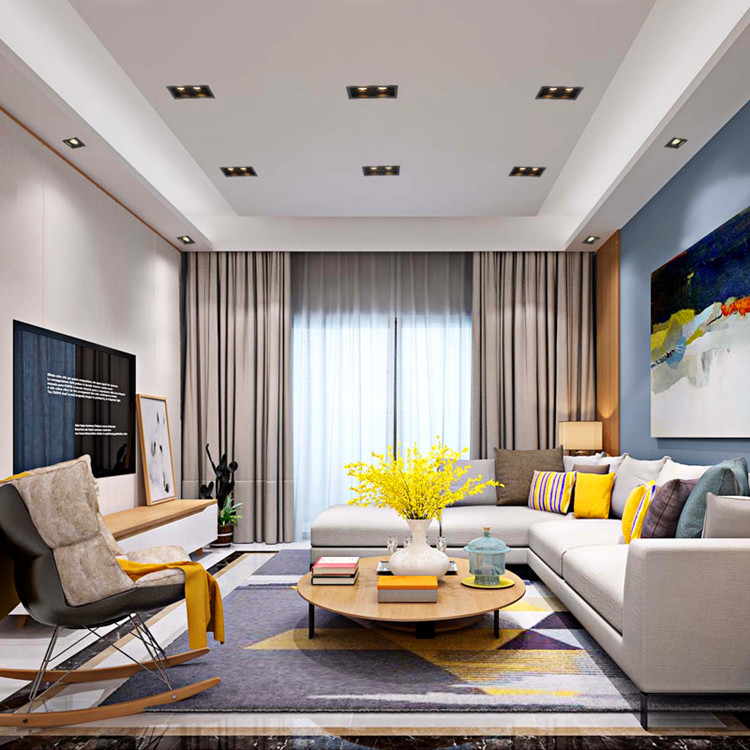

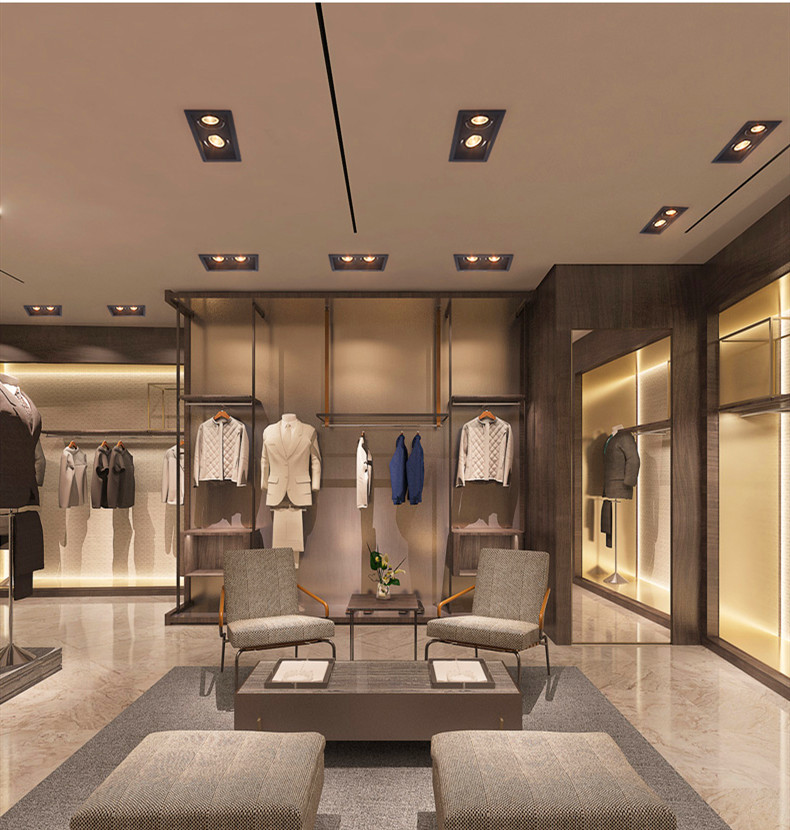

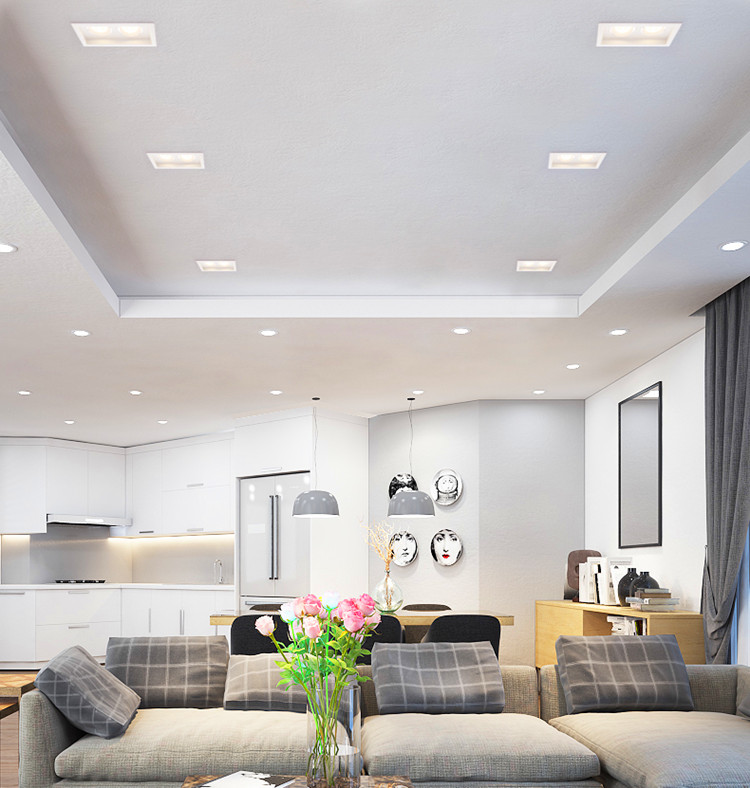

Product Applications

The mini spotlights led downlight square recessed light 1*10W is more and more popular in project applications.

And 35 led square open reflector downlight is widely used in high-end venues, like: store, villa and hotel. residential.
