Square LED COB Downlight

Single Twin Double Head LED Recessed Ceiling Square LED COB Downlight

Product Description

New Ceiling Light Single Twin Double Head LED Recessed Ceiling Square LED COB Downlight 2X12W

Single/Double Head LED Recessed Ceiling Downlight Specification

01. Power: 2*12W;

02. Diameter: L168*W85*H66mm;

03. Cutout: 155*75mm;

04. Beam angle: 15/24/38 Degree;

05. LED Chip: CREE CXA1507/CXA1512;

06. CRI>90/95/97;

07. LED Driver: Philips/LiFud Brand 300mA;

08. CCT: 2700K-6500K;

09. Lumen: 2*1000lm;

10. Warranty: 3 years;

11. 0-10V/Triac/DALI/DMX/Push Dimmable;

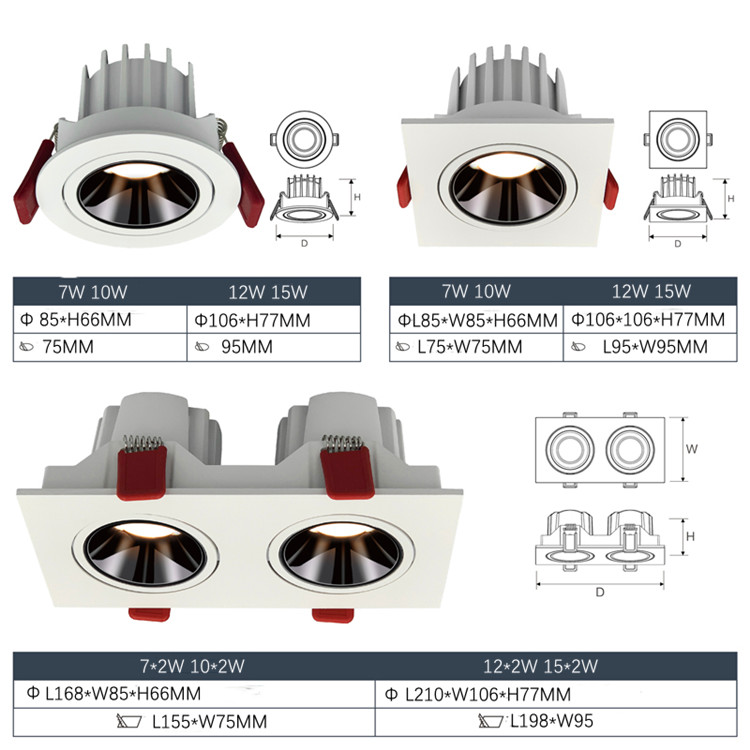

This is the parameters of double head square cob downlights:

Power	Lumen	LED Chip	CRI	CCT	LED Driver	Diameter	Cutout
7W	600lm	CREE CXA1304	RA90 RA95	2700K 3000K 3500K 4000K 5000K 6500K	Philips Tridonic Osram Lifud Eaglerise LED Driver	D85*H66mm	D75mm
10W	900lm	CREE CXA1507				D85*H66mm	D75mm
12W	1800lm	CREE CXA1507				D106*H77mm	D95mm
15W	2000lm	CREE CXA1512				D106*H77mm	D95mm

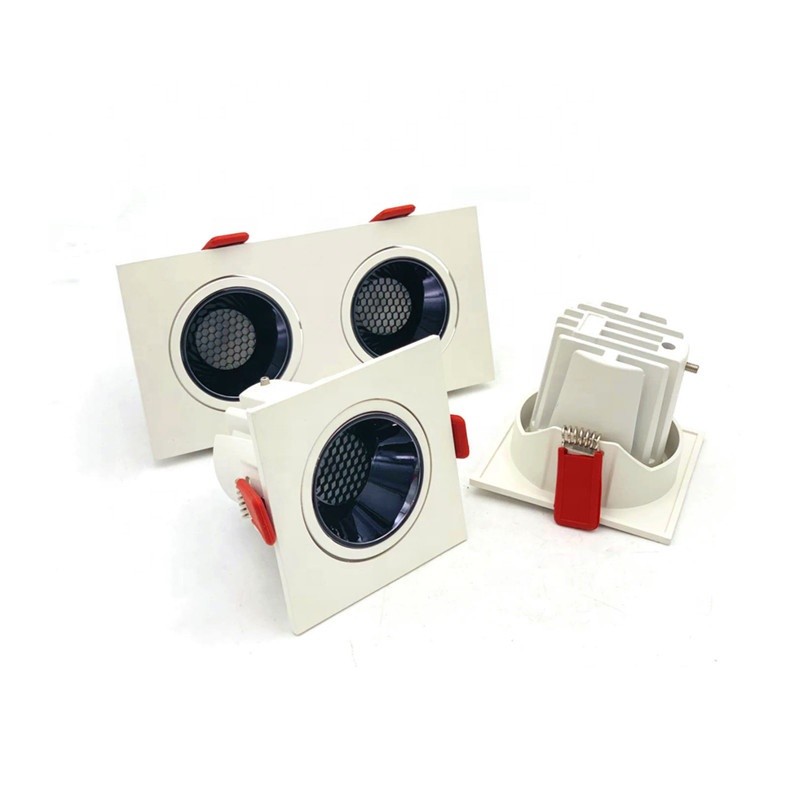

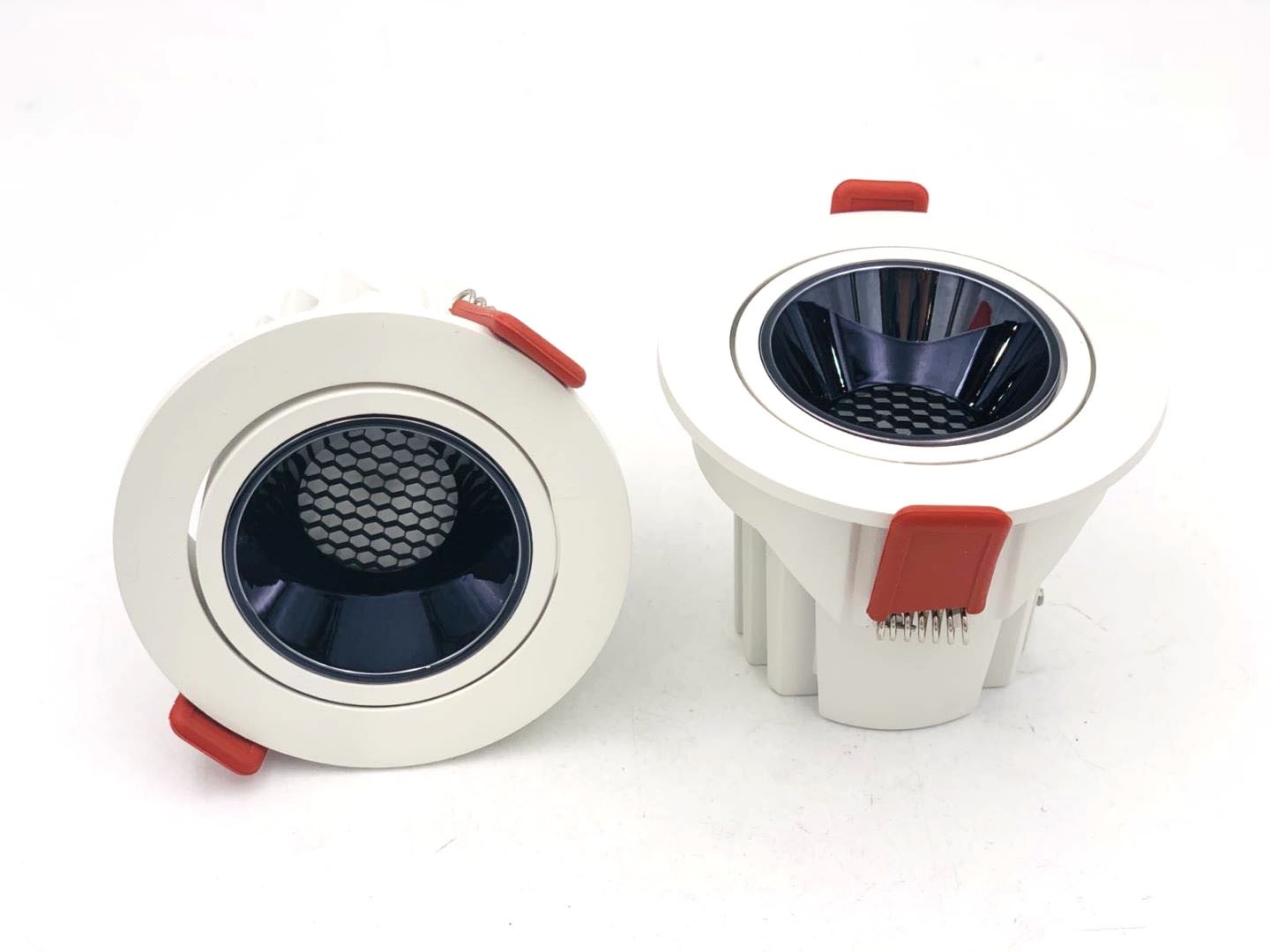

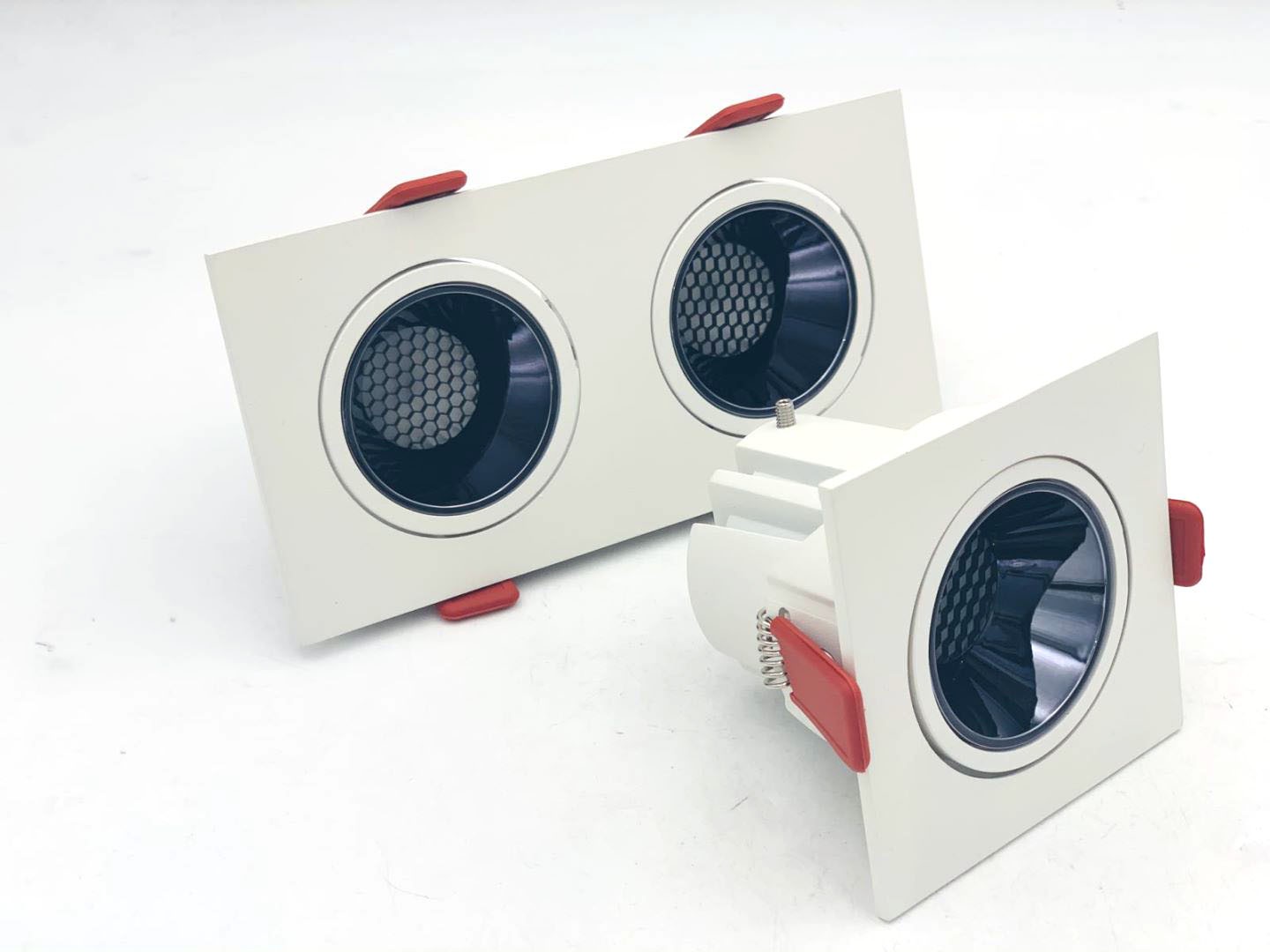

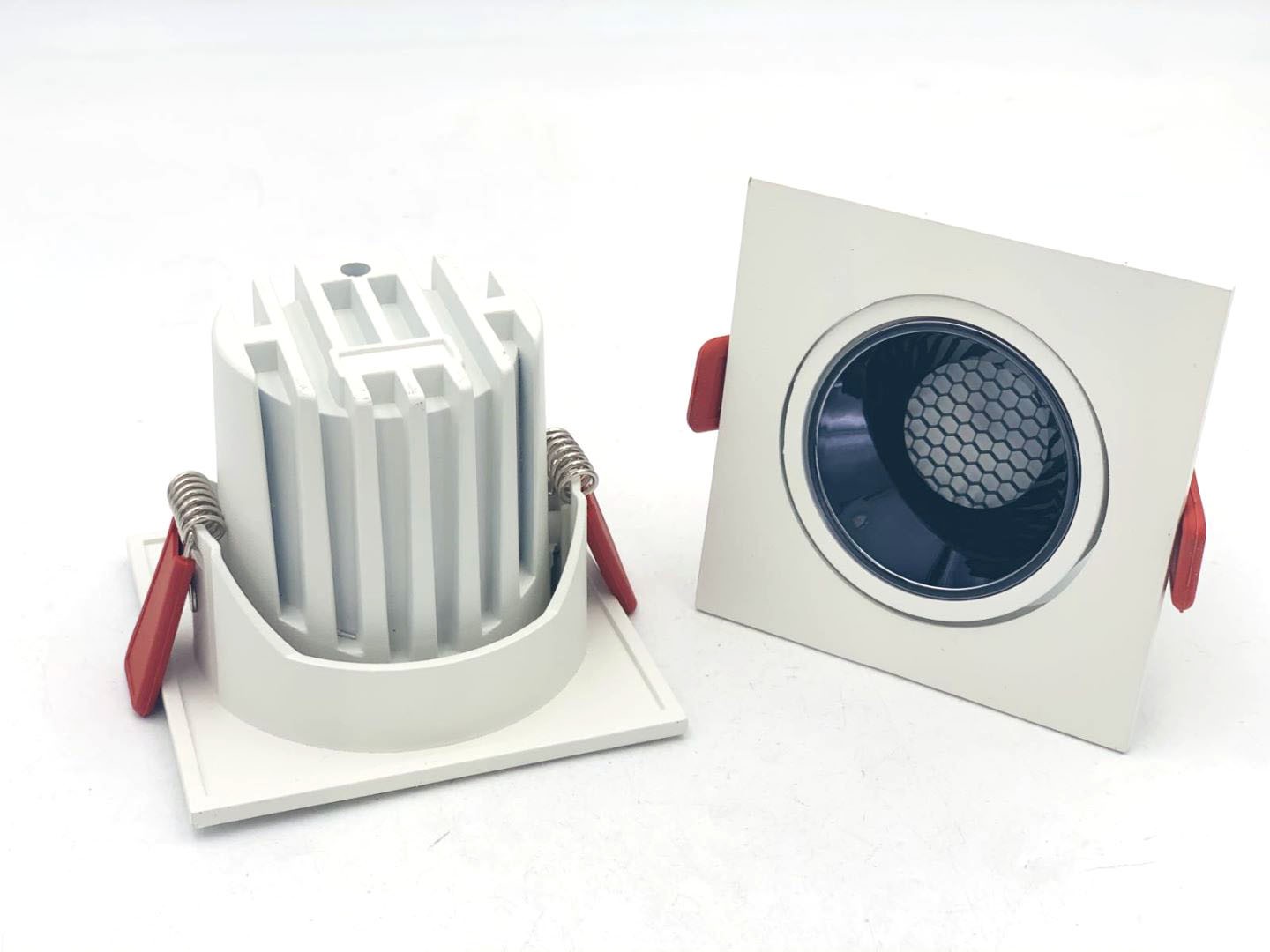

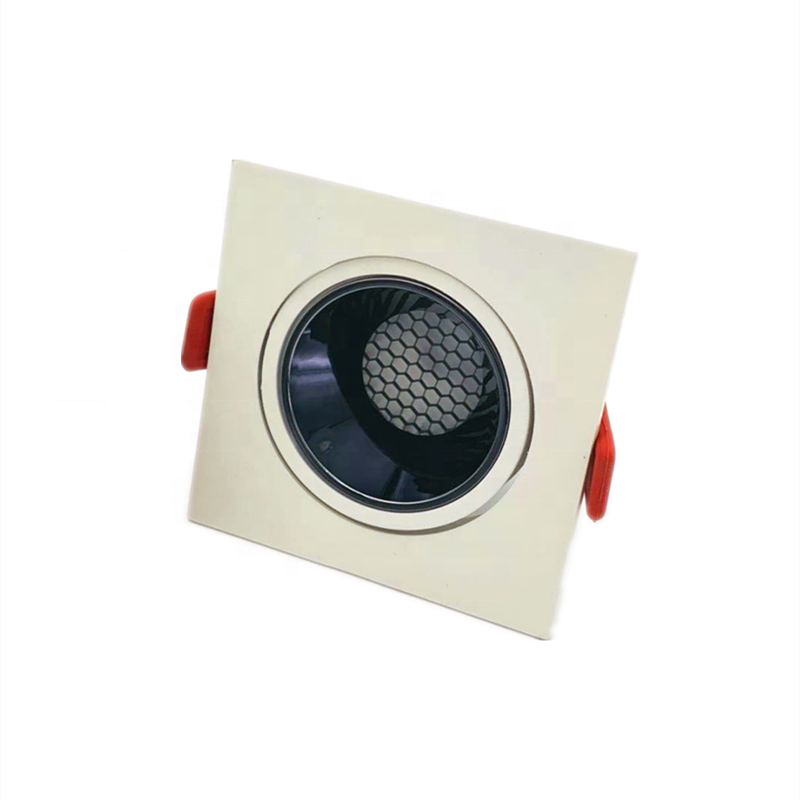

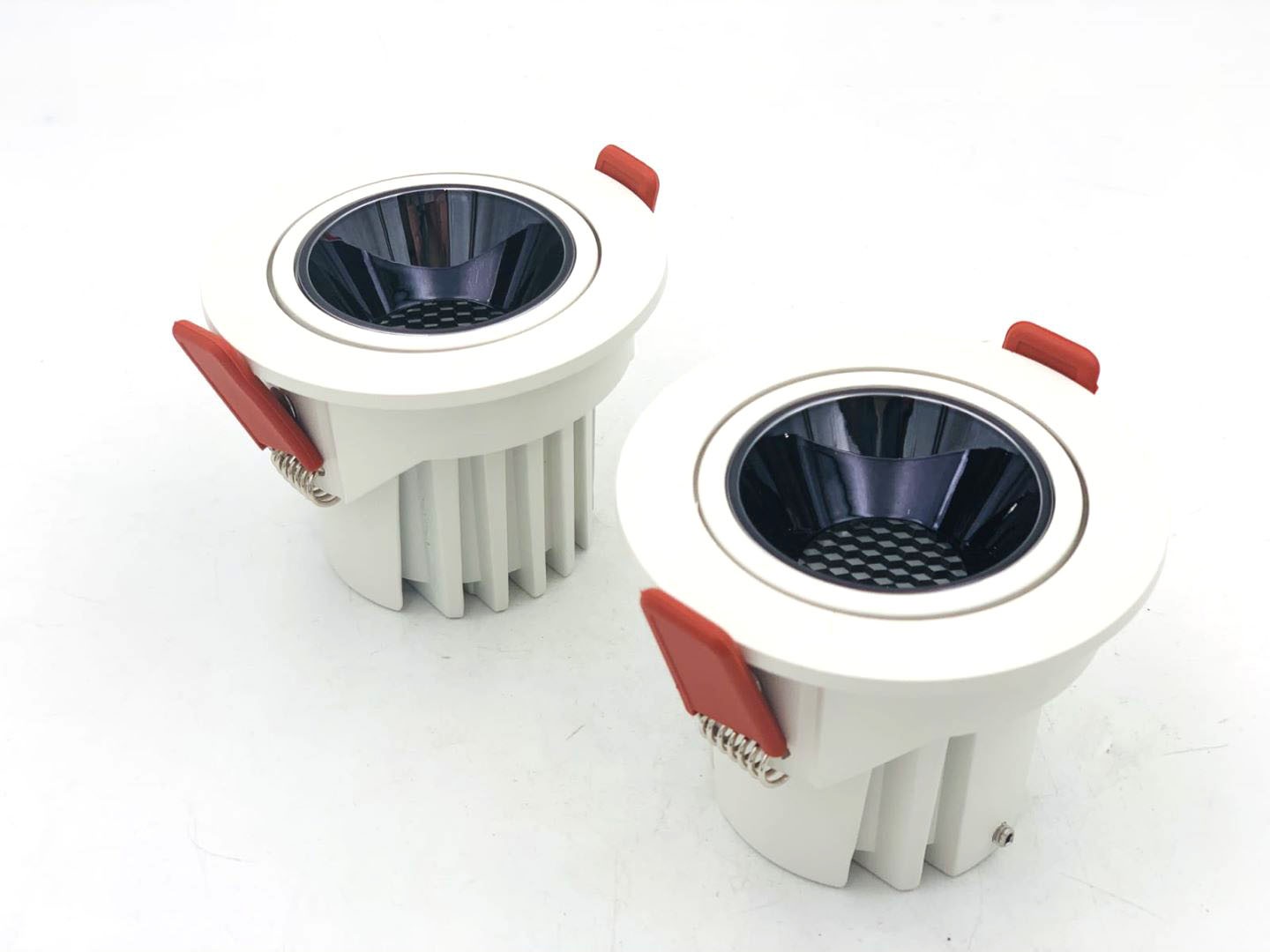

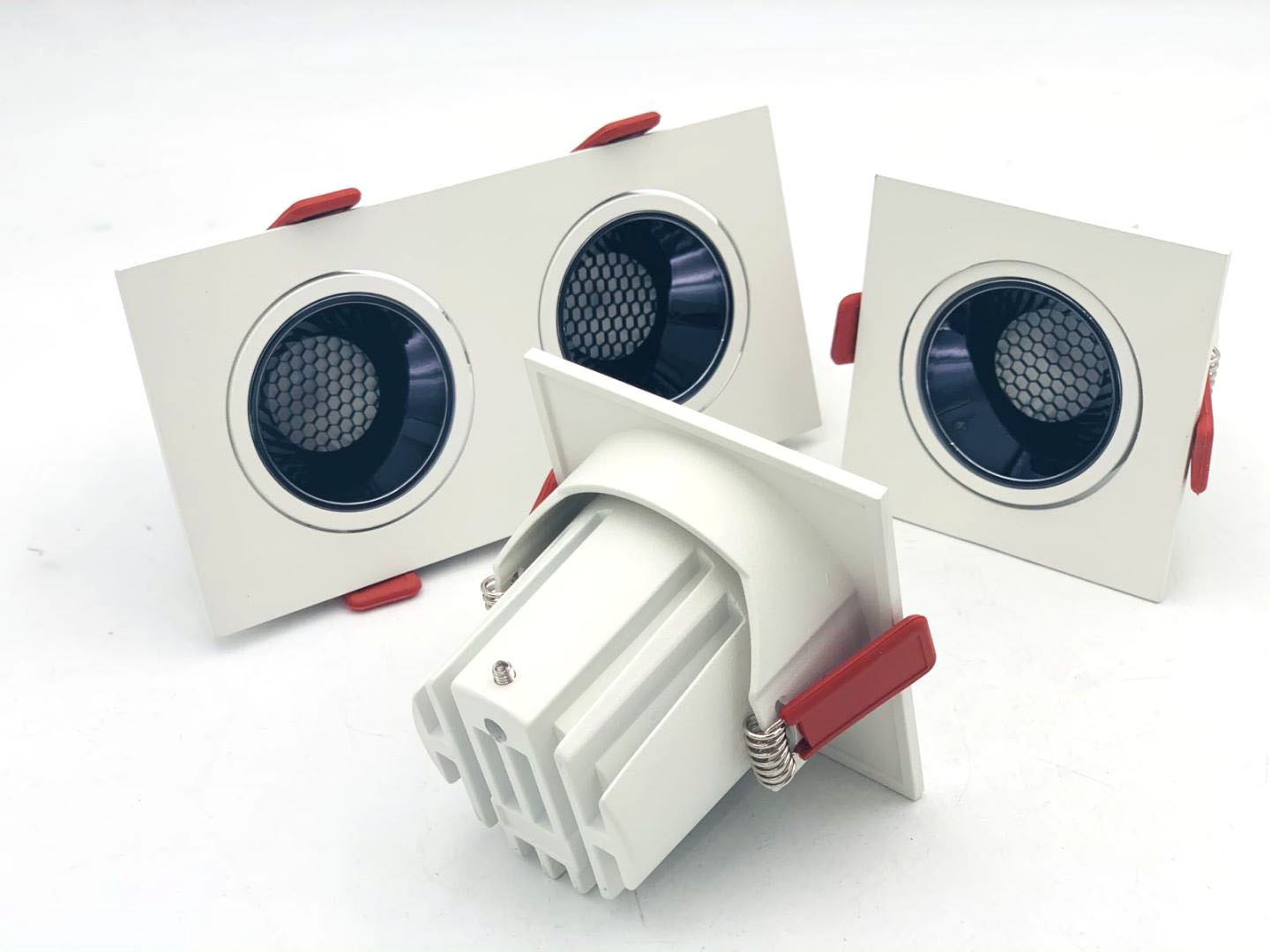

Details Images

The new ceiling light twin double head led downlight advantages:

1. Beam angle: 15/24/36°;

2. Cutout: 2.0 inch, 3.0 inch, 4 inch;

3. Power can be 5W to 15w;

4. Baffle color options: White, Black;

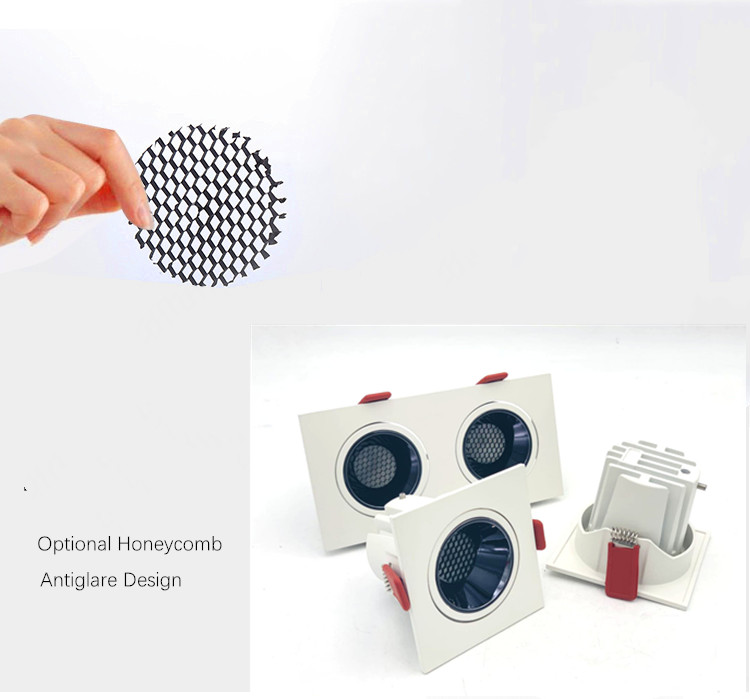

5. Antigalre and with honeycomb cover available;

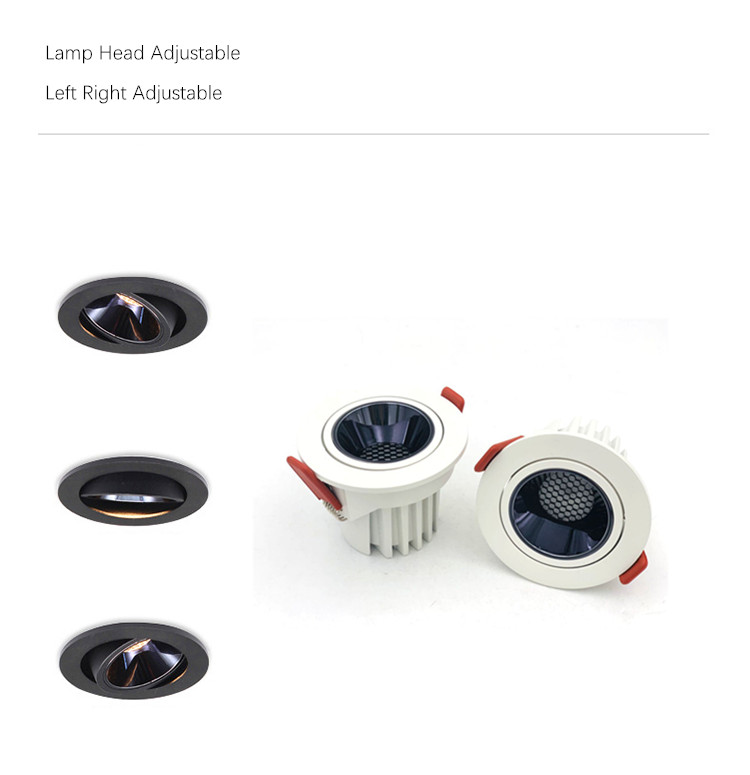

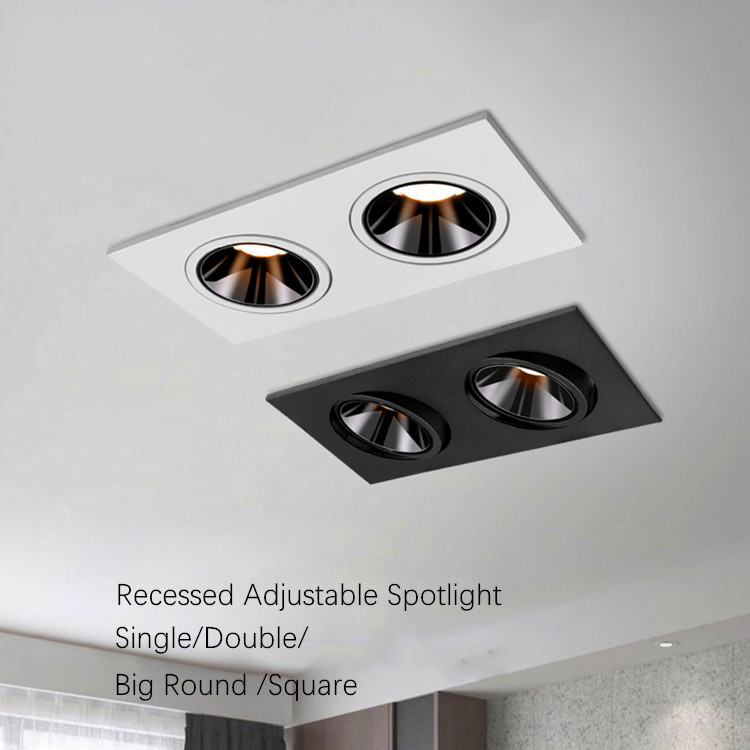

6. Adjustable or fixed or Square Single Double heads are available;

7. High quality with CREE LED chip CRI90/95 and Philips led driver;

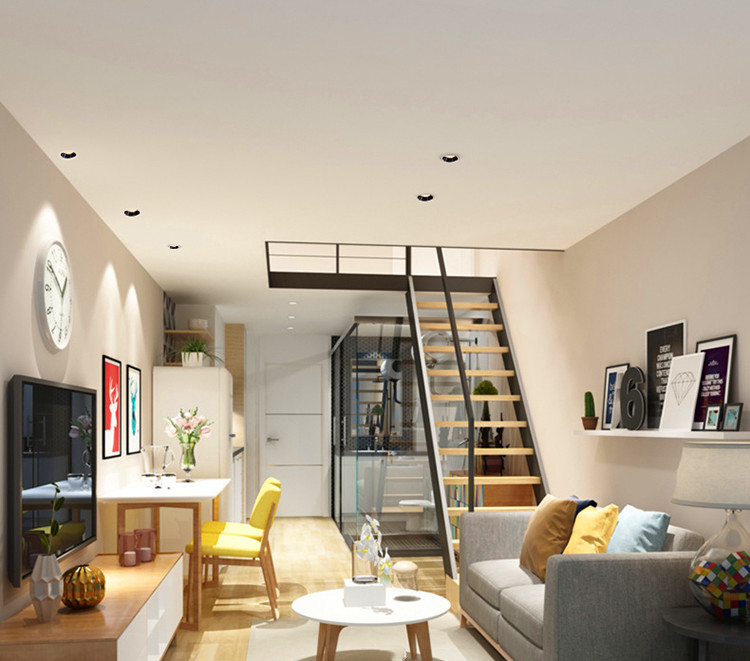

20w LED Downlight Double Head Project Cases:

The double head downlight 2x12 watt is widesly used in home, office, living room, vila, hotel, shop, small room,

as the power can be 9w 10w 12w 15w 20w and max 25w, cutout is just 55mm 75mm, 85mm, 95mm and 100mm.

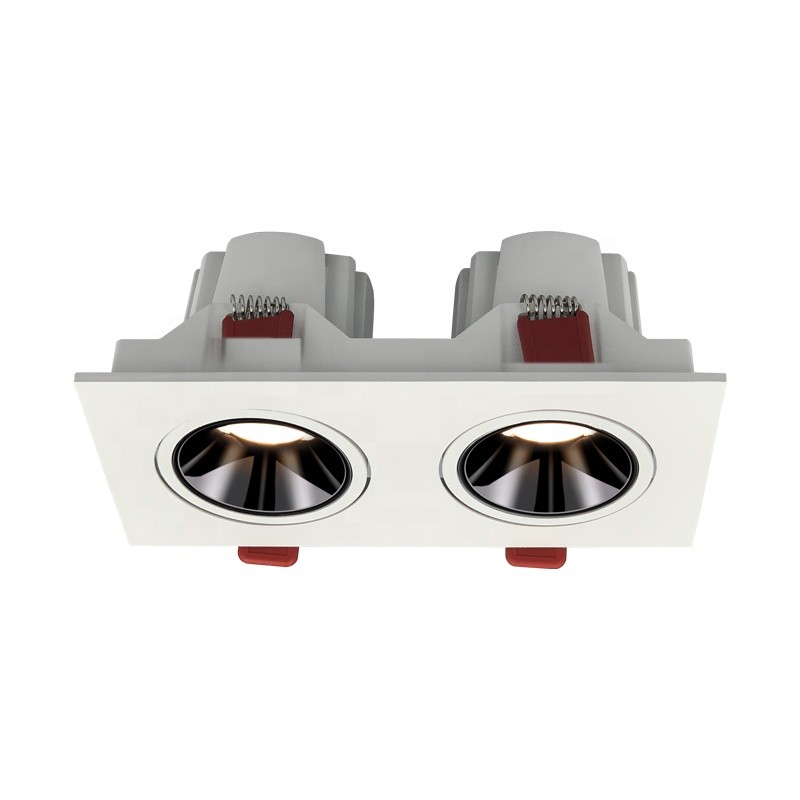

Product Presentation

CREE LED Chip Details:

1. CRI>90/95;
2. CREE CXA1507 for 10W 12W;
3. CREE CXA1512 for 15W 20W;
4. CREE CXA1816 for 20W 25W;
5. CREE CXA2520 for 30W 40W;
6. CREE CXA2530 for 50W;
7. MAX: 80W;
8. LED Lumen: 120lm/w
9. LED Voltage: DC37V;
10. CCT: 2700/3500K/4000K/5000K/ 6500K;
11. LED Material: Aluminum PCB;
12. Imported American LED Chip;

Philips Driver and Dimmable Driver Details:

1. Input Voltage: 220-240VAC;
2. 6W 7W 10W 12W PF>0.50;
3. 15W 20wW 25W 30W 35W 40W 50W 60W PF>0.90;
4. Flicker Free;
5. Warranty 3/5 Years both available;
6. Output Voltage: 27-42VDC;
7. CE RoHS Approval;
8. Triac Dimmable Smoothly;
9. 0-10V Dimmable Smoothly;
10. Dali Dimmable Smoothly;
11. CCT Tunable Dimmable Smoothly;
12. DMX Dimmable;
