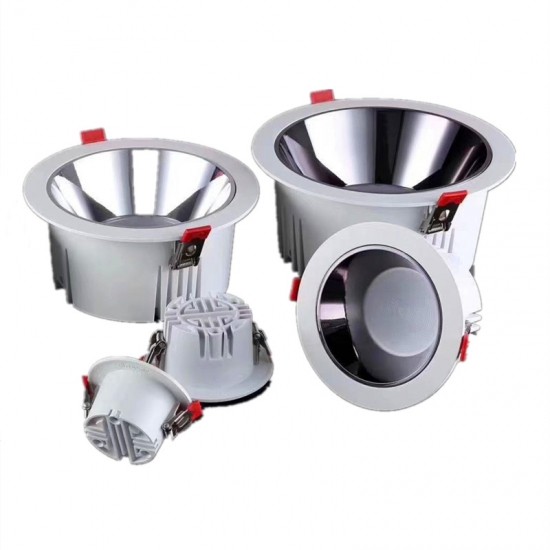

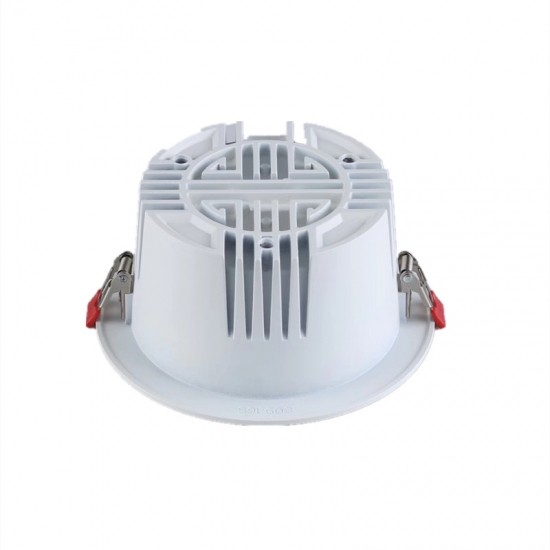

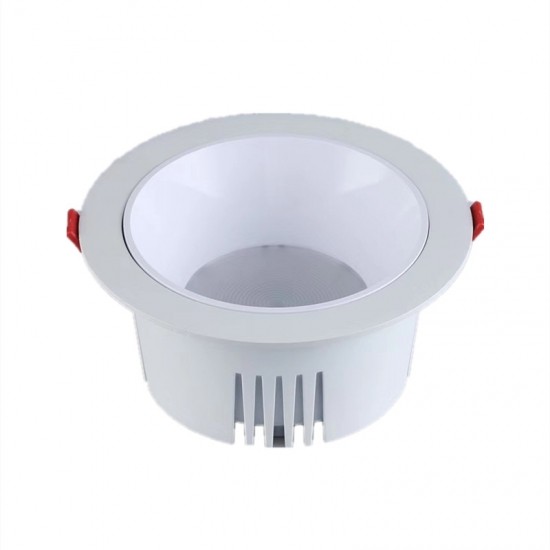

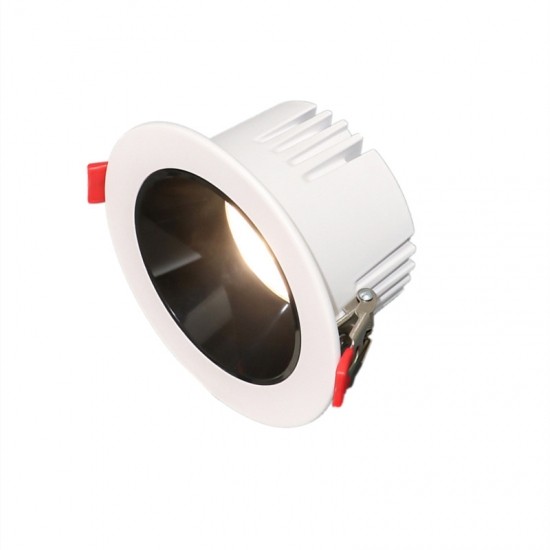

Deep Anti-Glare LED COB Downlight-10W-40W

DESCRIPTION

Model No. VIM-TD809

Features: Beam angle: 50/60°, Frosted PC Lens, New Design;

Deep Antiglare, Chrome/Black Chrome/White Baffle;

Material: Die-cast Aluminum+Lens;

Dimmable Options: Triac / 0-10V / 1-10V / DALI / DMX;

Model No.	Power	Lumen (lm)	Driver Brand	LED Style	CCT(K)	Beam Angle	Input Voltage(VAC)	CRI	Size(mm)	Cutout(mm)
TD809-3F	10W	850lm	Lifud Philips Tridonic Osram	CREE Citizen Osram	2700K 3000K 3500K 4000K 5000K 5700K 6500K	60°	220-240	Ra>90 Ra>95	ɸ102*H45	ɸ83-98
TD809-4F	15W	1300lm							ɸ141*H65	ɸ120-135
TD809-5F	20W	1700lm							ɸ165*H75	ɸ141-161
TD809-6F	30W	2600lm							ɸ194*H85	ɸ171-190
TD809-8F	40W	3400lm							ɸ220*H95	ɸ196-214
