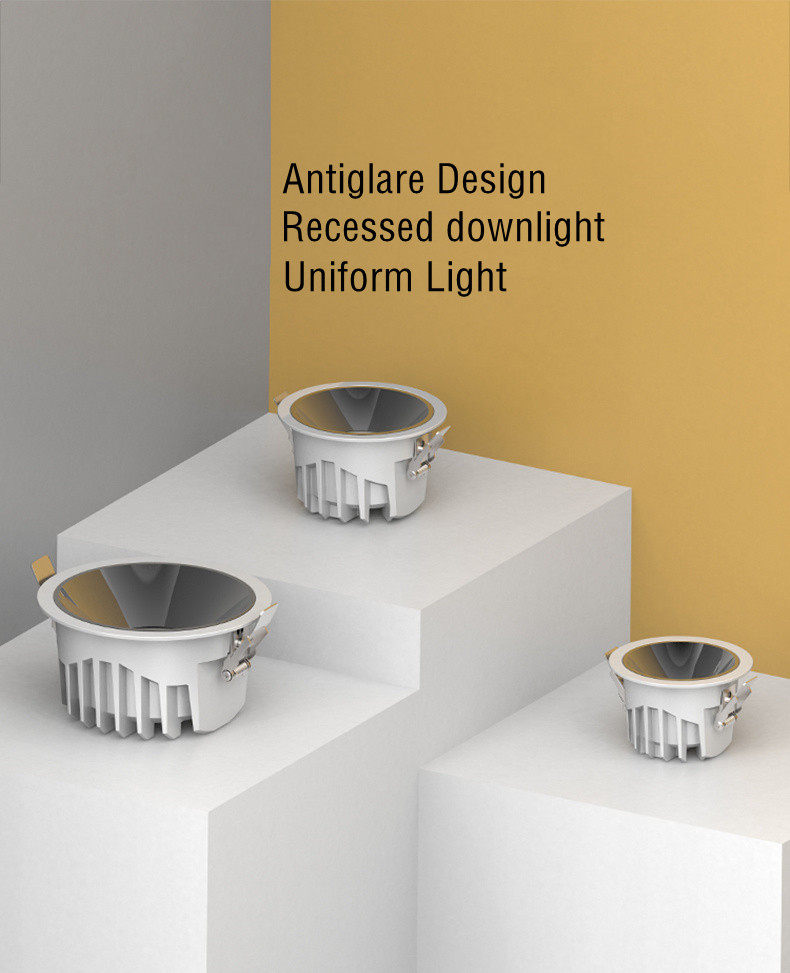

New Design Anti glare Wide Beam LED Downlight 10W-50W

New Design Anti glare Wide Beam LED Ceiling Light Downlight Recessed Light LED Lamp Downlight 10W to 50W

Product Description


Advantages:


1. Power can be 10W to Max 50W;

2. Reflector beam angle by reflector: 24/38/55°;

3. Wide trim;

4. Uniform Lighting No Darkness;

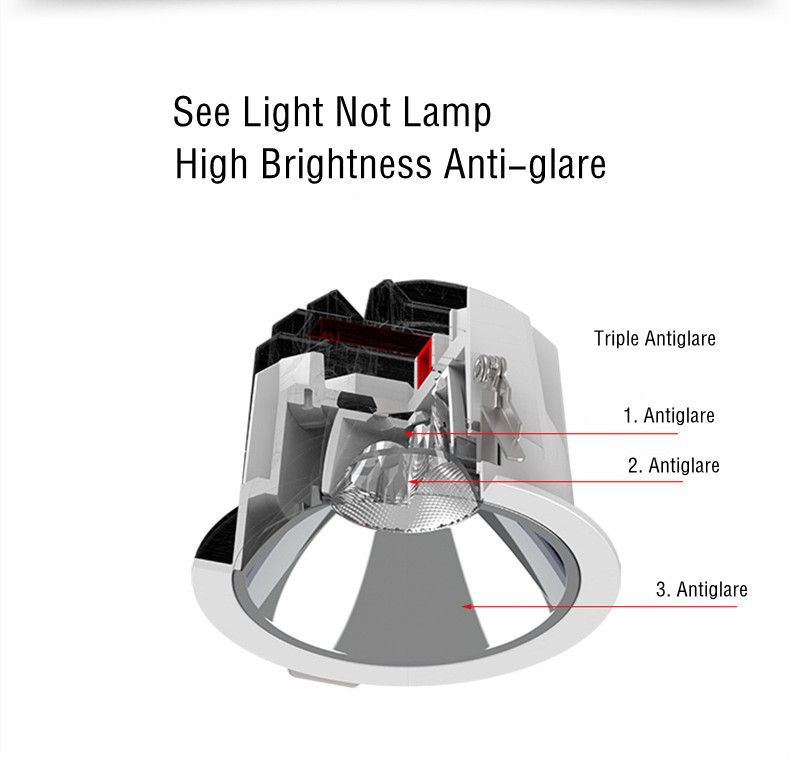

5.  deep anti glare UGR<17;

6. Reflector color: white, black, chrome;

7. Laser, Logo, Customized Package is available too;

8. Fast lead time: 1-3 days for under 500pcs;

9. High quality with Famous LED Chip CREE/ Citizen/Osram/Philips LED chip and Philips/Osram/Tridonic/LTECH driver;                                                                                                                    10. Other dimming type: 0-10V/Triac/Dali/Push Dim/ CCT Tunable all available;

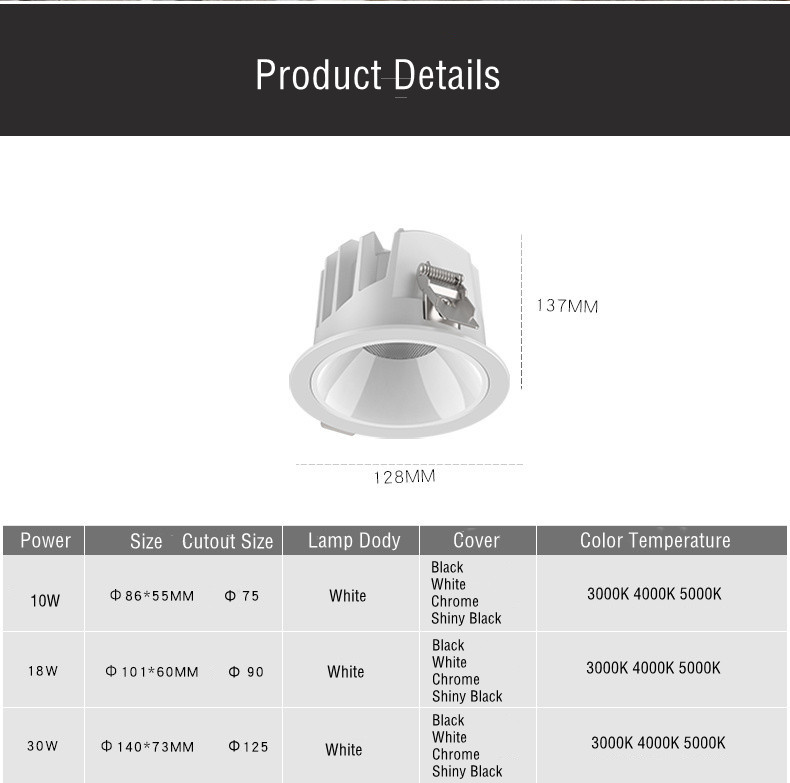

Product Paramenters

This Is The Parameters of Downlight Spring Chrome:


Model

Power

Lumen

LED Chip

CRI

CCT

LED Driver

Size(mm)

Cutout (mm)

3F

10W

850lm

CREE CXA1507

RA>90

RA>97

2700K

3000K

3500K

4000K

5000K

5700K

6500K

0-10V Dim

Triac Dimming

EUCHIPS

DALI Dimmable

D85*H55

D75

3.5F

15W

1350lm

CREE CXA1512

D101*H60

D90

4.0F

30W

2500lm

CREE CXA1820

D140*H73

D125

6.0F

40W

3200lm

CREE CXA2520

D180*H94

D165

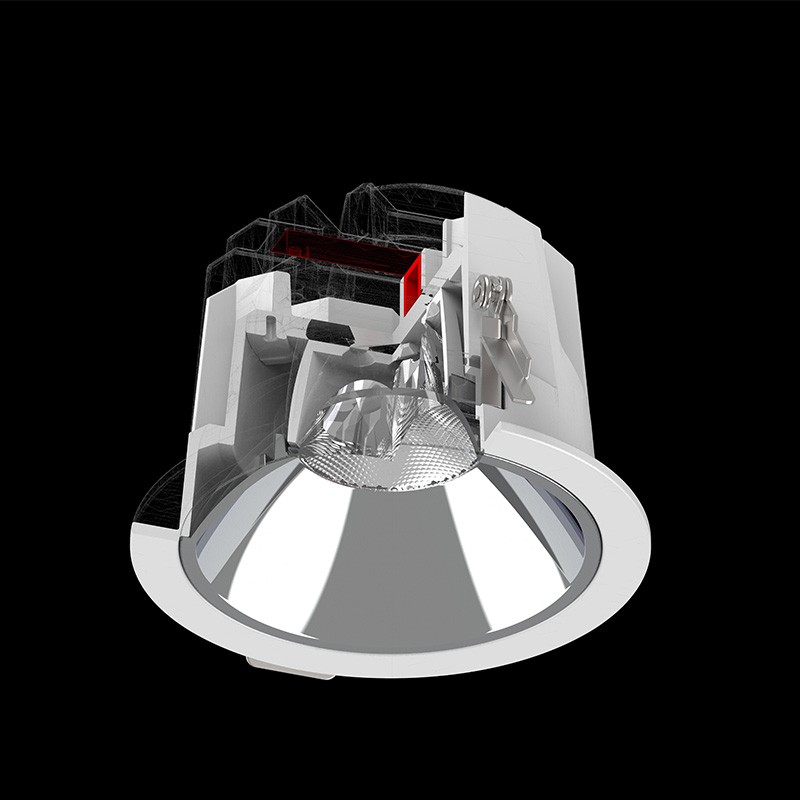

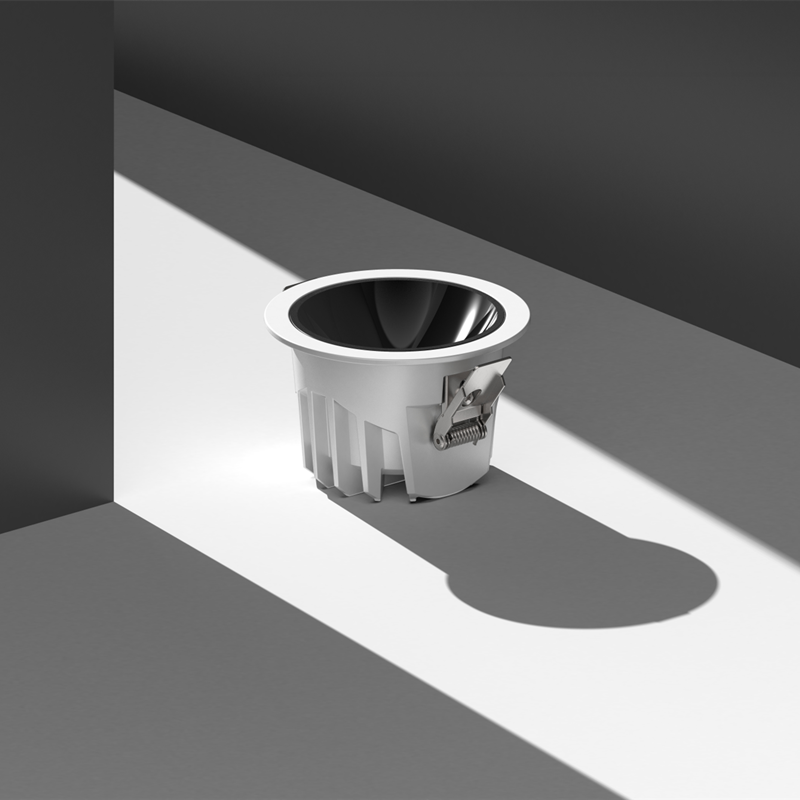

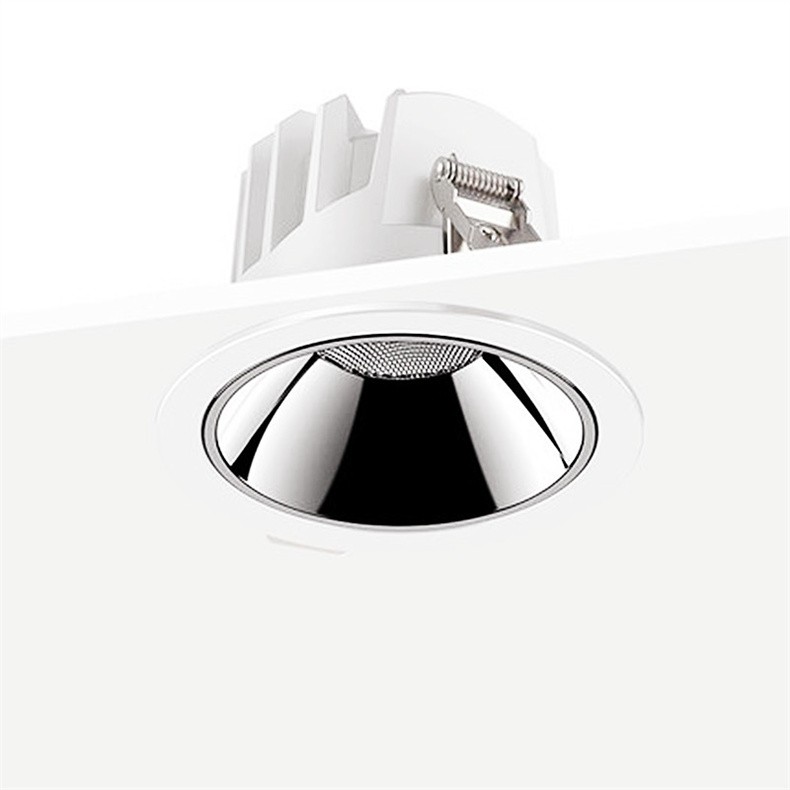

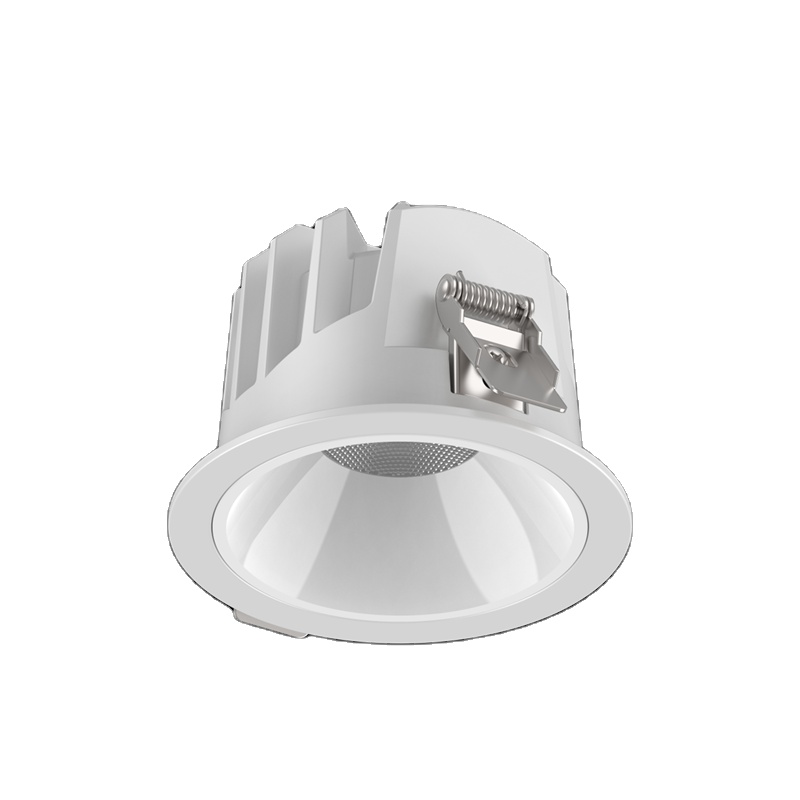

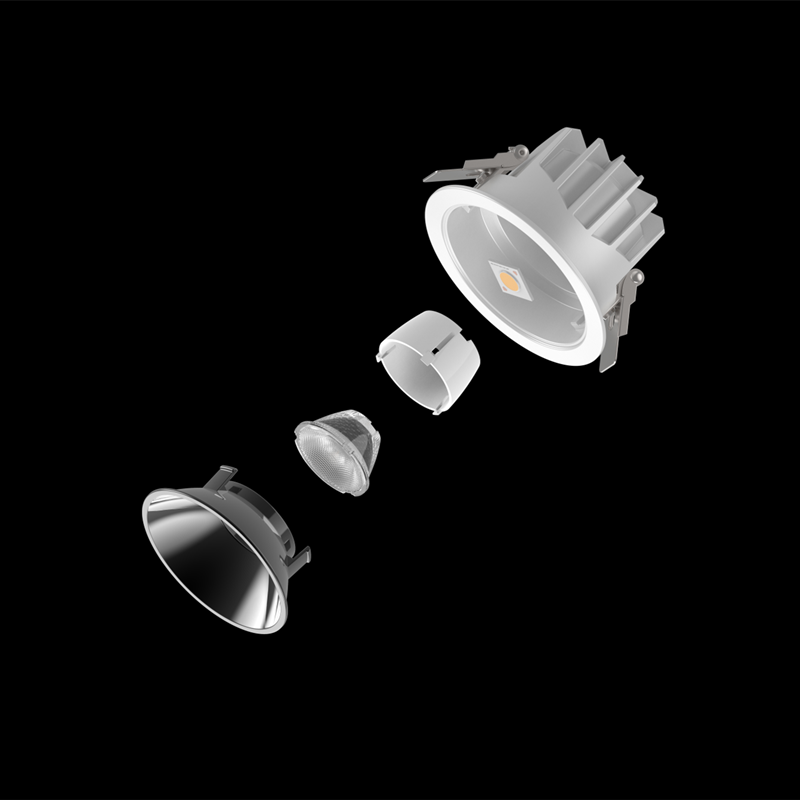

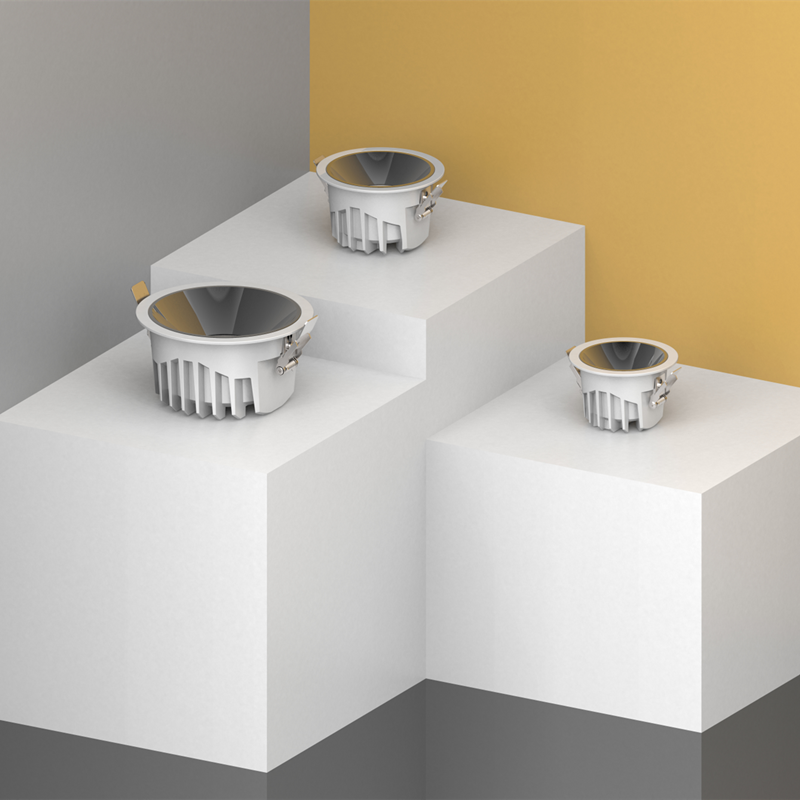

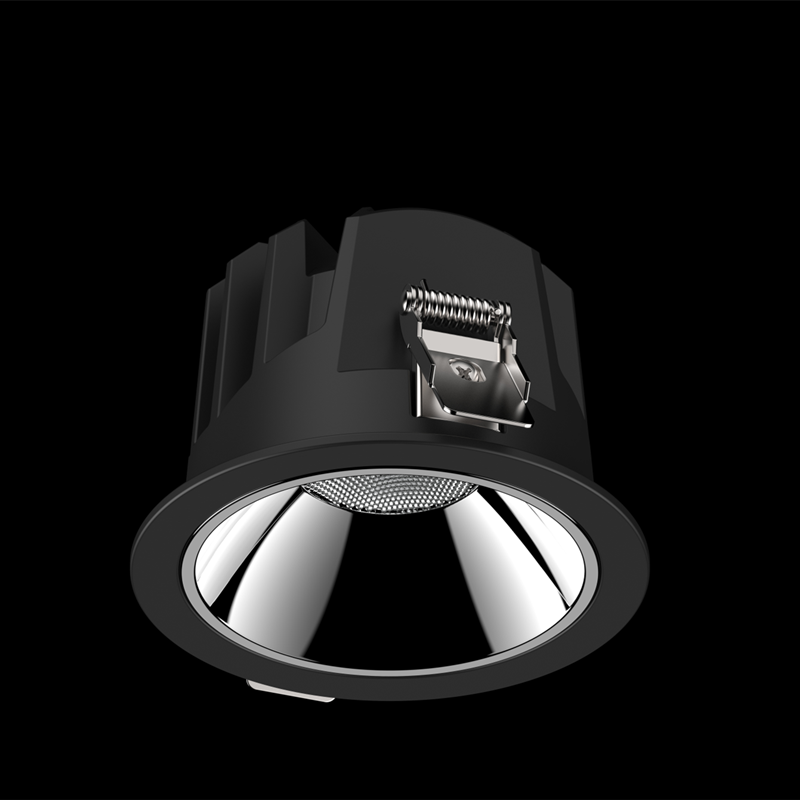

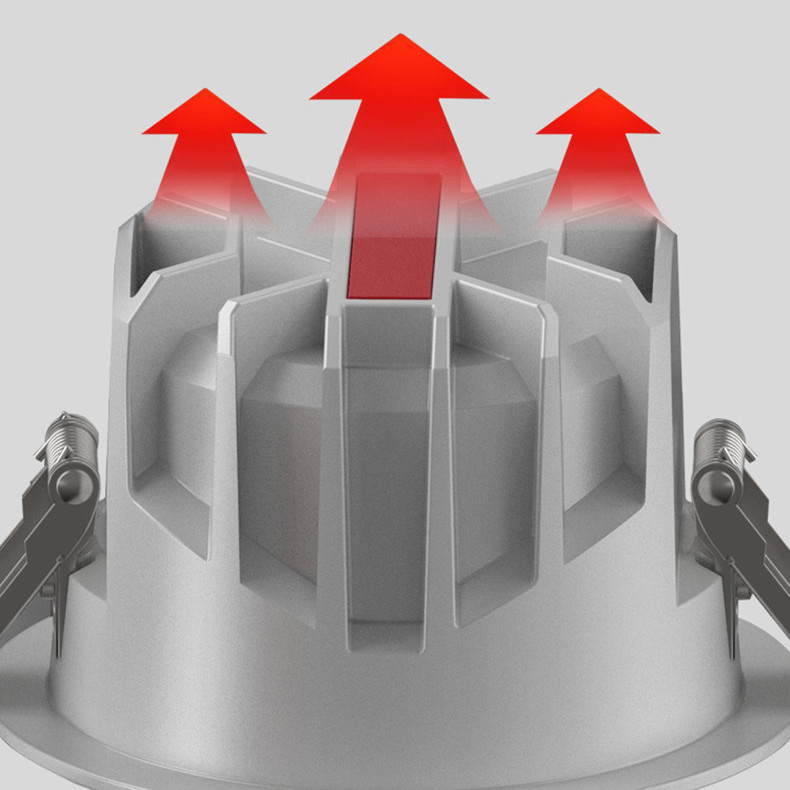

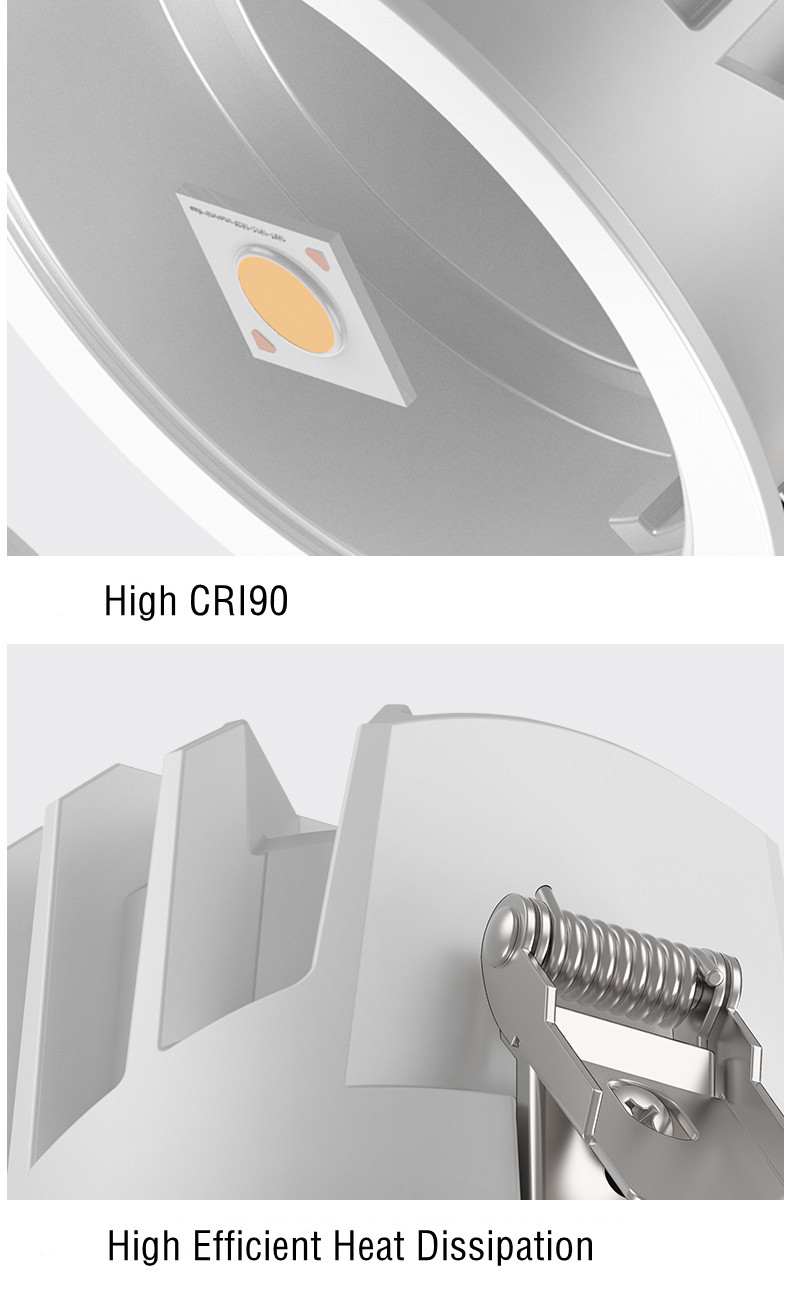

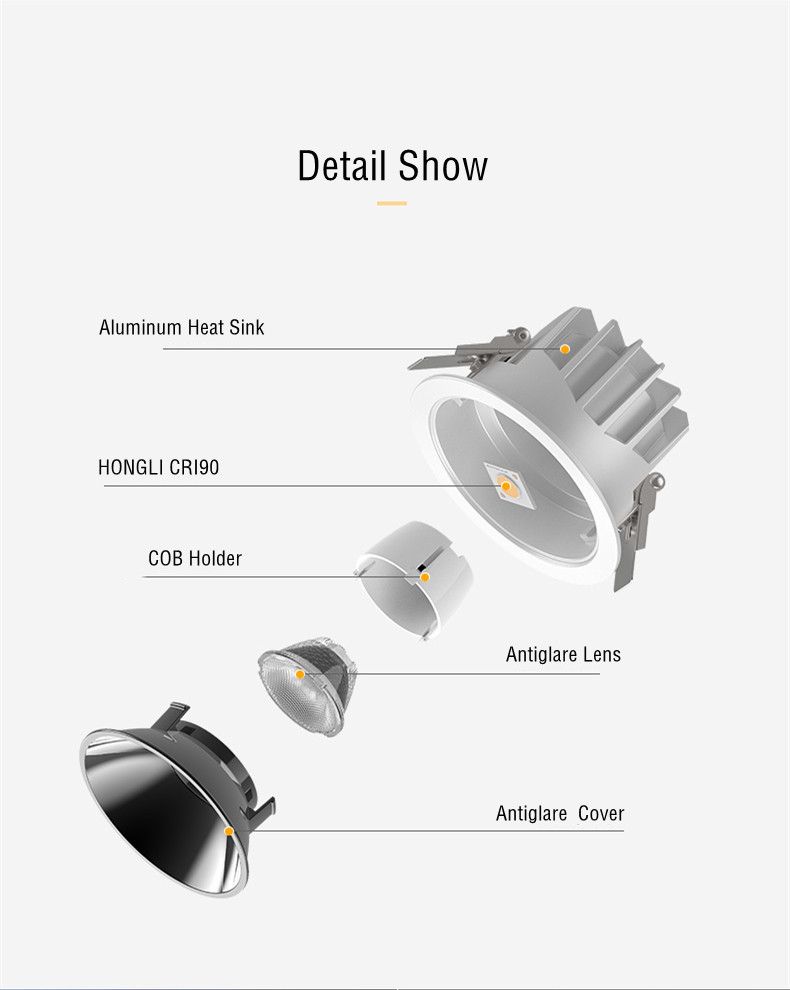

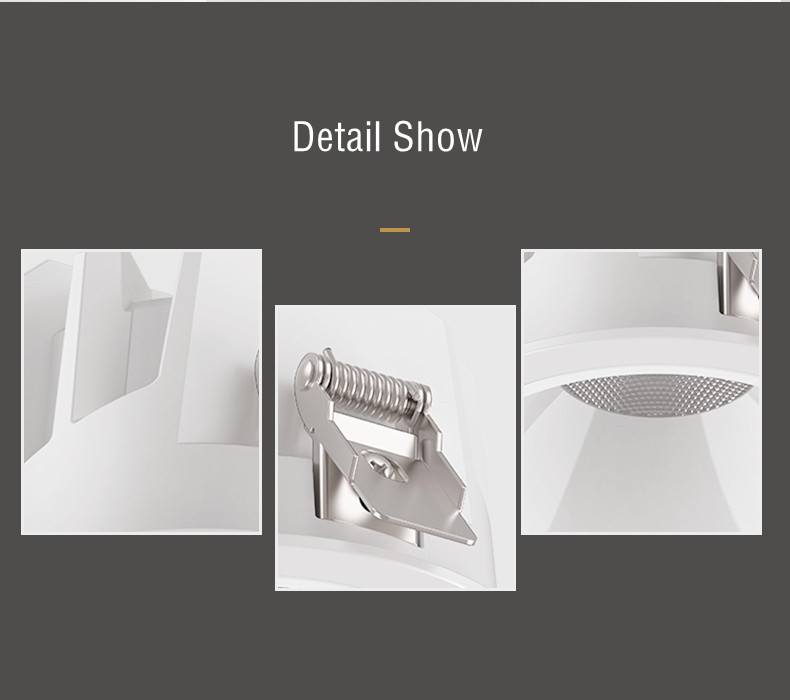

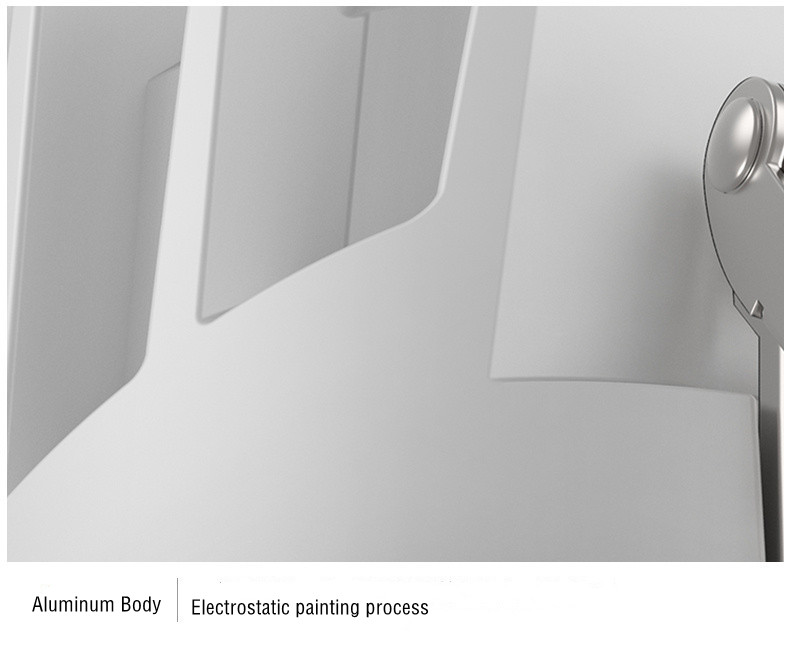

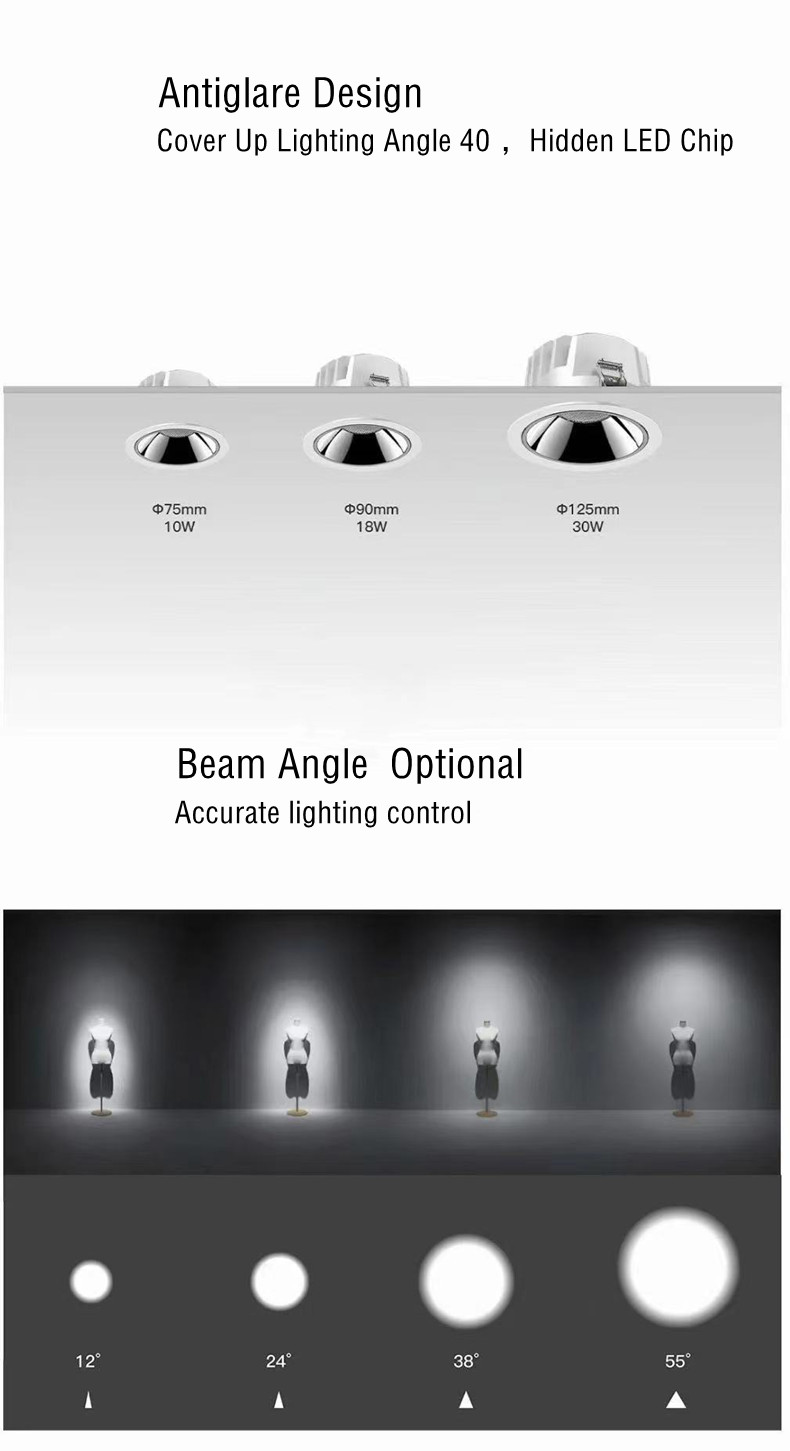

Details Images

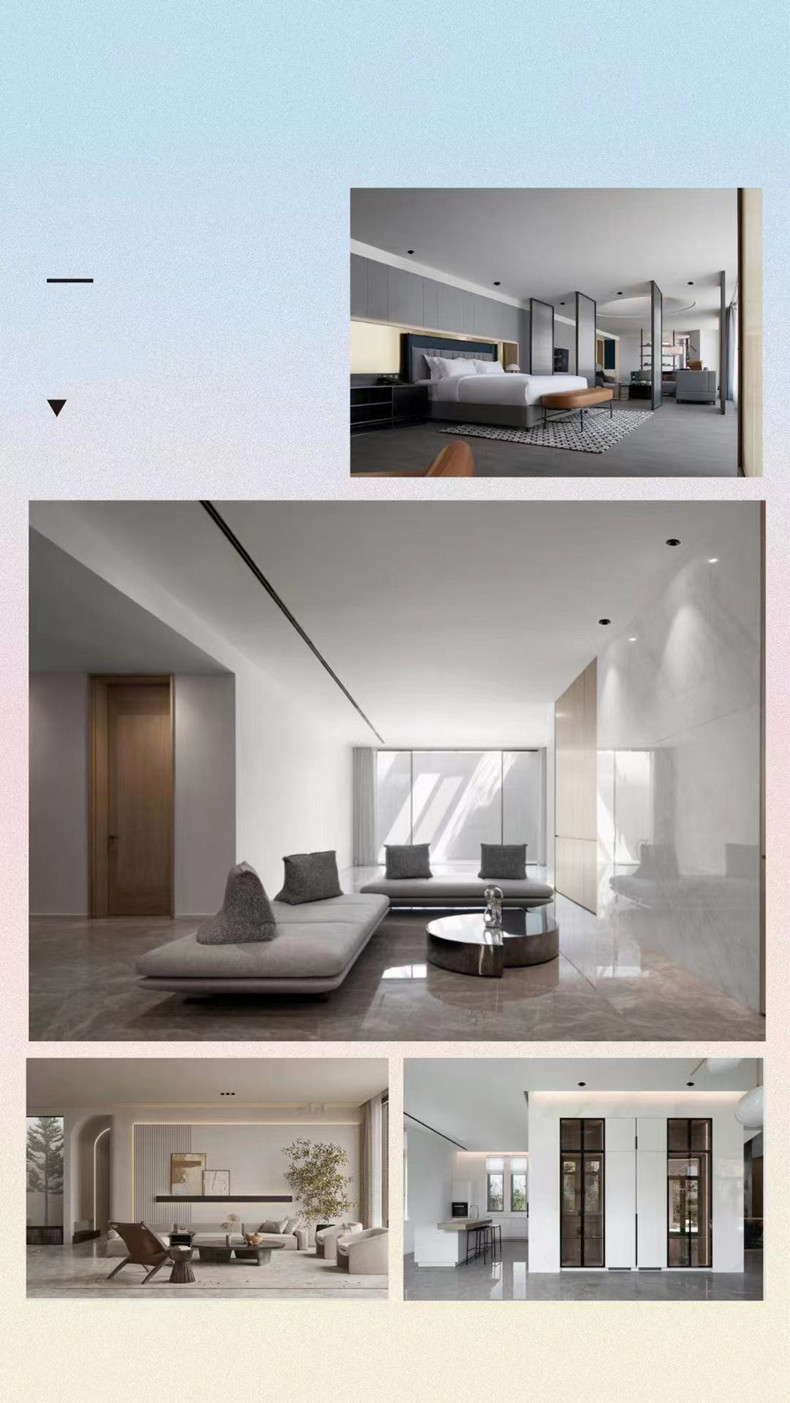

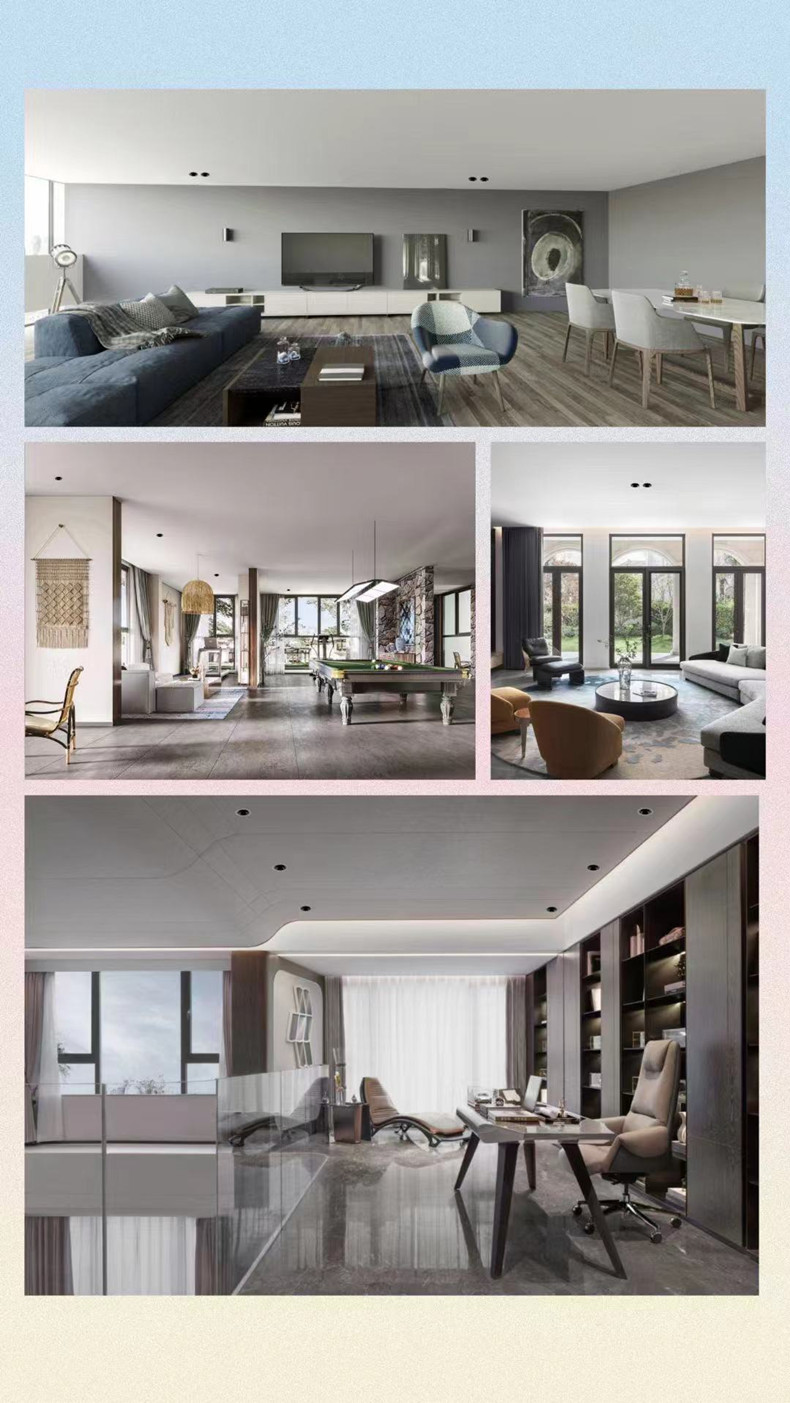

Project Case

The LED light downlight is widesly used in home, office, living room, vila, hotel, shop, small room,

residential indoor lighting and commercial lighting, it has the power  10w 15w 20W 30W 40W and max 50w,

cutout is just 75mm, 90mm, 125MM, 165MM. All this design  is deep anti glare. And beam angle can be 25/38/55 degree.
