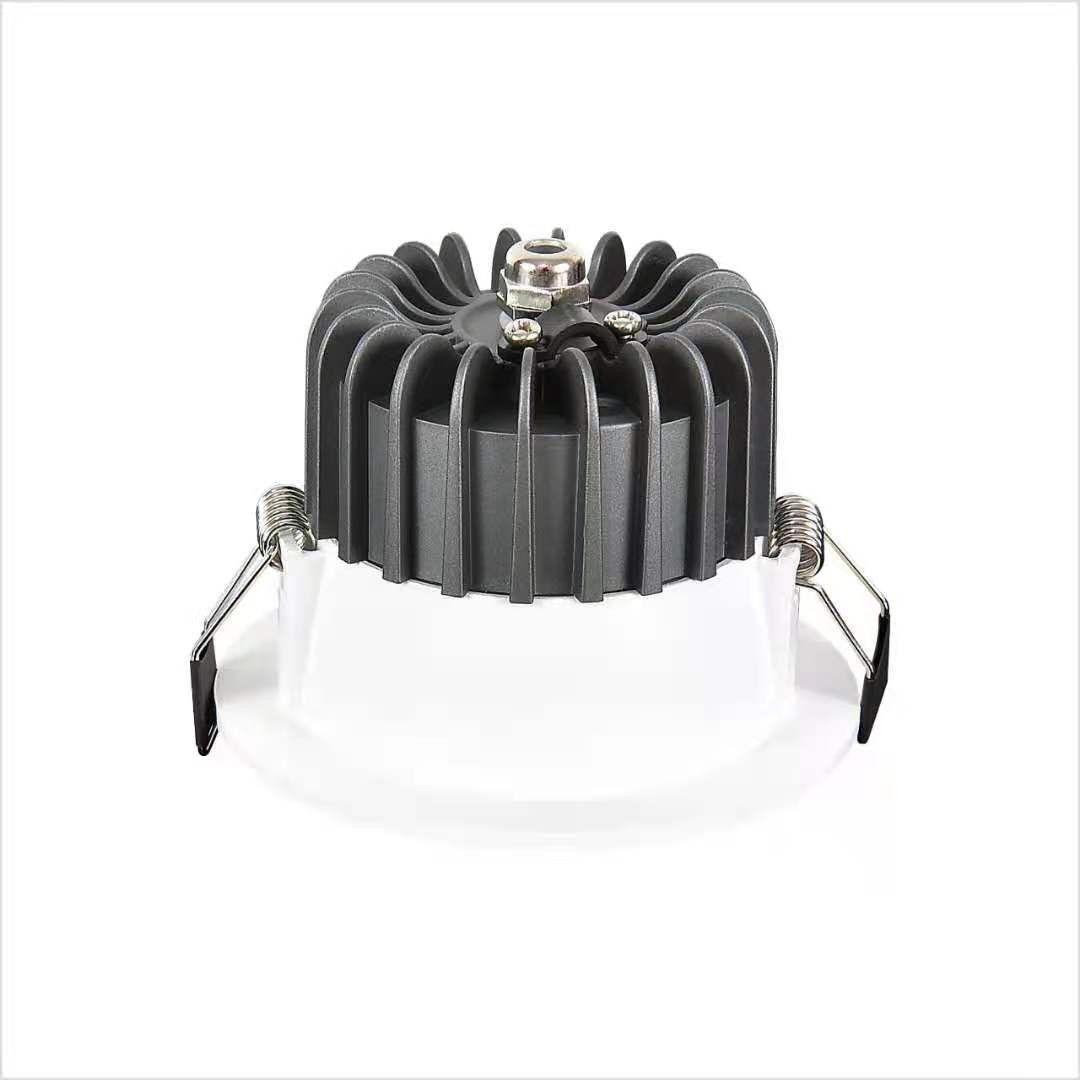

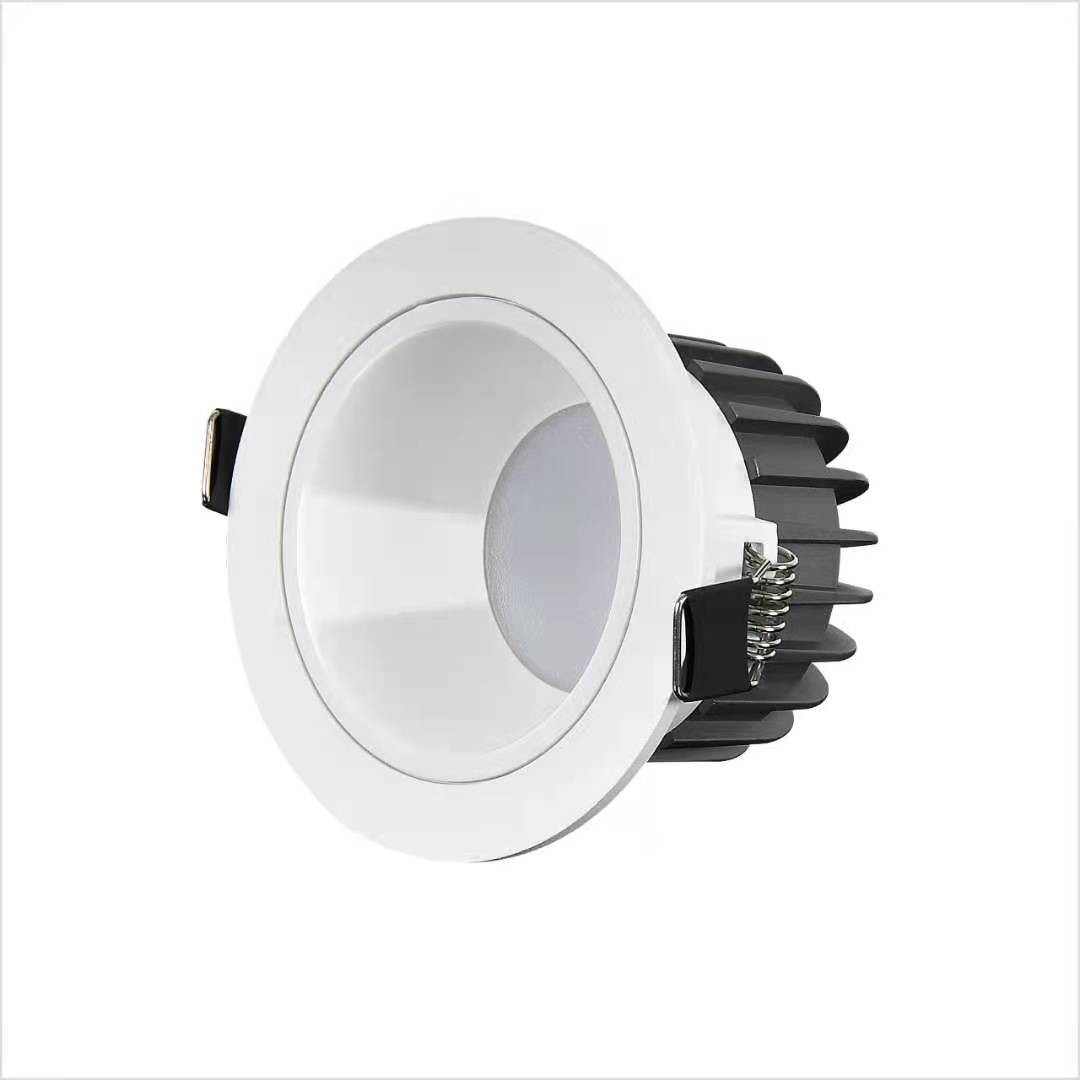

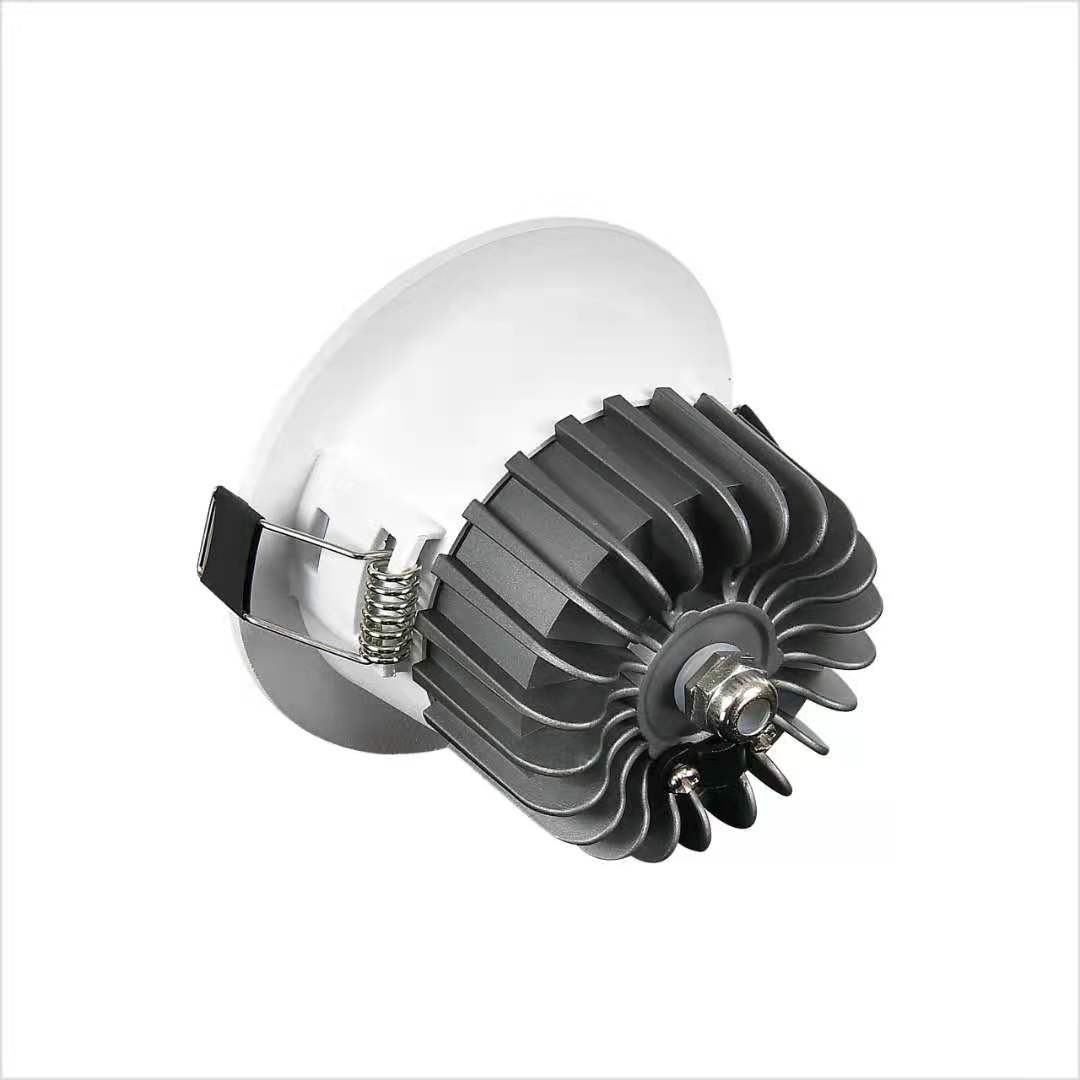

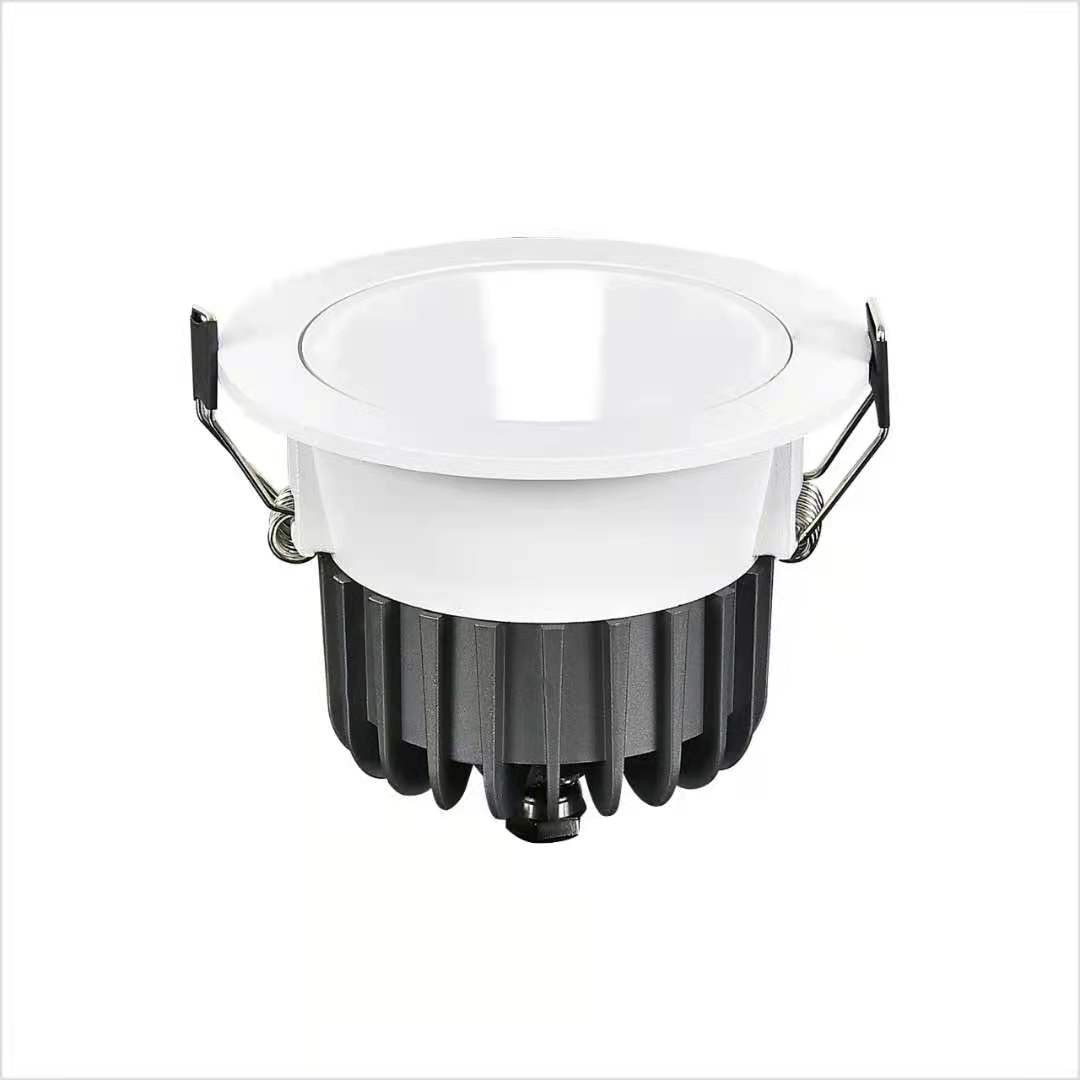

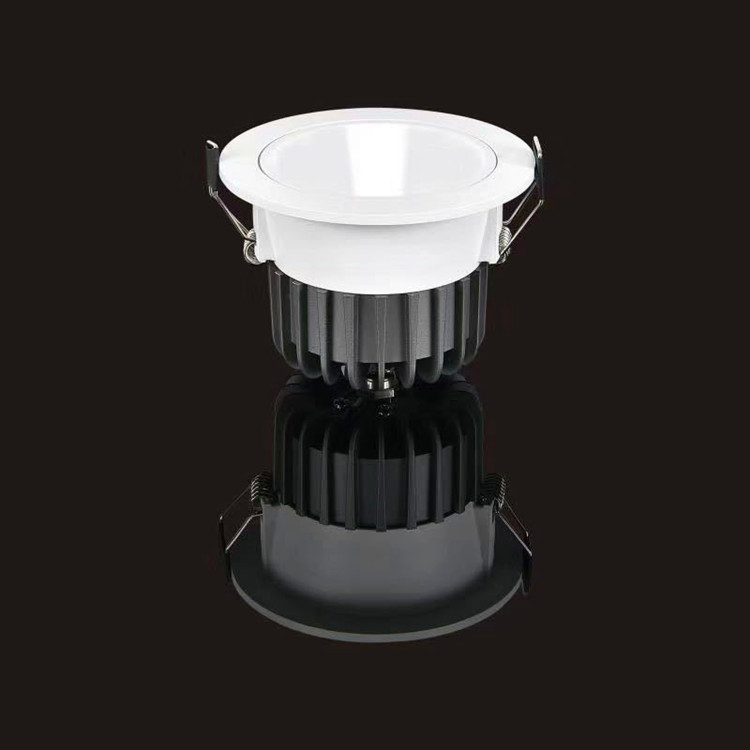

Anti Glare LED Downlight For Living Room

Products Description

The Specificatoin:

1. Power: 20W;

2. Size: D184*H80mm;

3. Cutout: D150mm;

4. LED Chip: Osram SMD2835;

5. CCT:  2700K/3000K/3500K/4000K/5000K/6500K;

6. Input Voltage: 220-240VAC;

7. LED Driver: Lifud Brand;

8. Lumen: 1800lm;

9. Beam Angle: 60°;

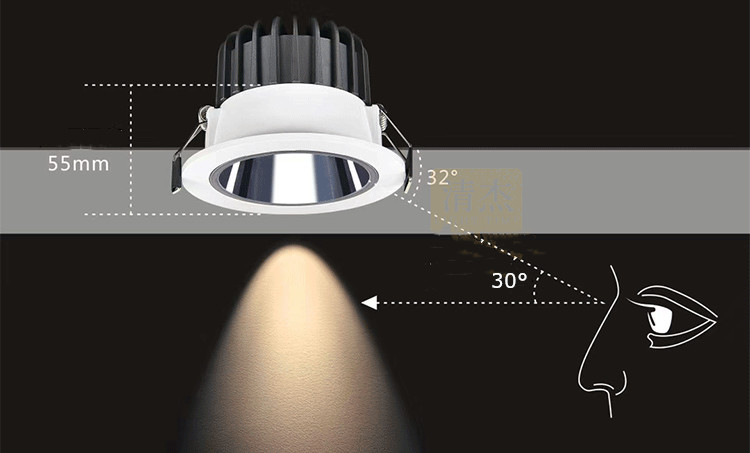

10. Deep Anti glare UGR<17;

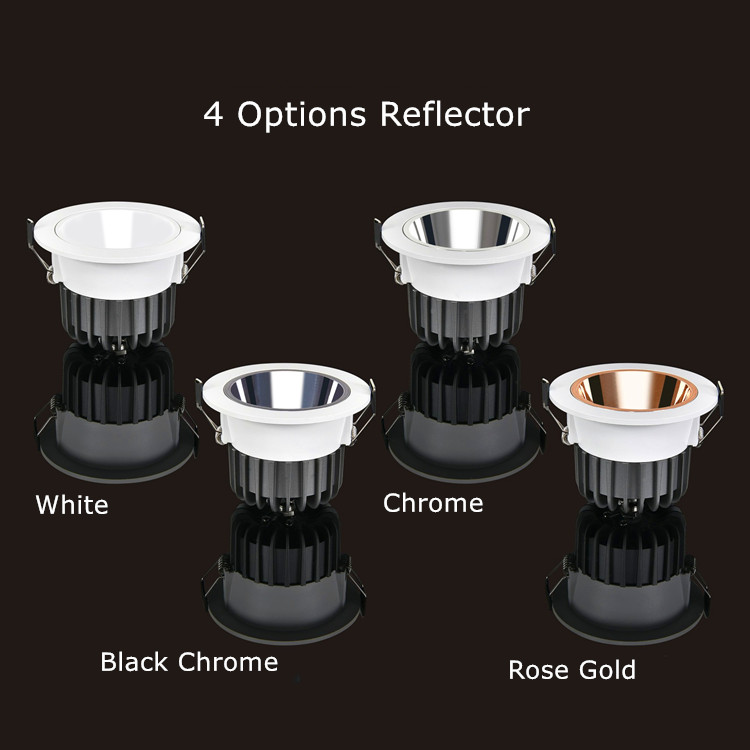

11. Reflector Color: White/Chrome/Black Chrome/Rose Gold;

12. Warranty: 3 Years;

The specific parameters of led downlight :

CREE LED Chip Details:

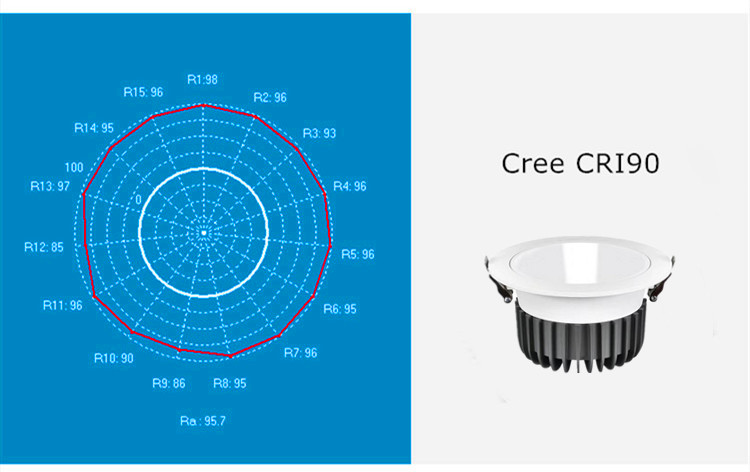

1. CRI>90/95;
2. CREE CXA1507 for 10W 12W;
3. CREE CXA1512 for 15W 20W;
4. CREE CXA1816 for 20W 25W;
5. CREE CXA2520 for 30W 40W;
6. CREE CXA2530 for 50W;
7. MAX: 80W;
8. LED Lumen: 120lm/w
9. LED Voltage: DC37V;
10. CCT: 2700/3500K/4000K/5000K/ 6500K;
11. LED Material: Aluminum PCB;
12. Imported American LED Chip;

Philips Driver Details:

1. Input Voltage: 220-240VAC;
2. 6W 7W 10W 12W PF>0.50;
3. 15W 20wW 25W 30W 35W 40W 50W 60W PF>0.90;
4. Flicker Free;
5. Warranty 3/5 Years both available;
6. Output Voltage: 27-42VDC;
7. CE RoHS Approval;
8. Triac Dimmable Smoothly;
9. 0-10V Dimmable Smoothly;
10. Dali Dimmable Smoothly;
11. CCT Tunable Dimmable Smoothly;
12. DMX Dimmable;

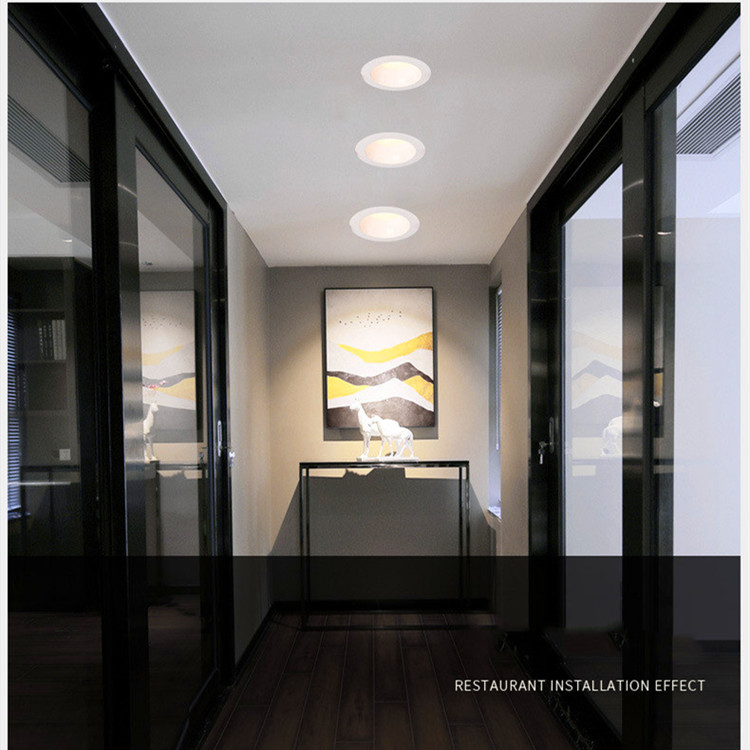

Living Room Downlight Project Case:

Applied to: Indoor Residential Lighting like Home, Hotel, Villa, Mall, Store, Restaurant etc.
