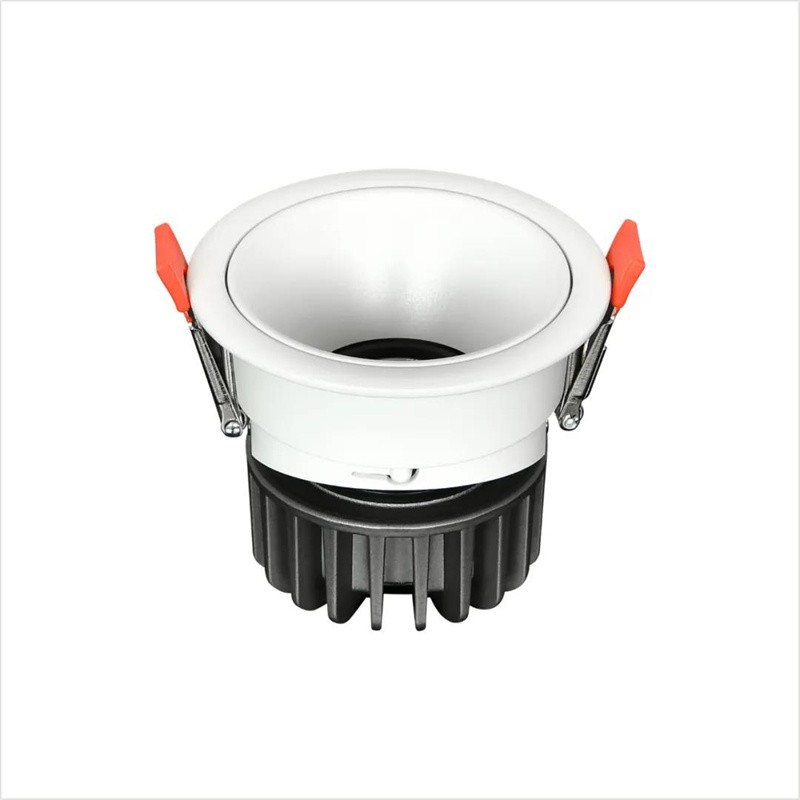

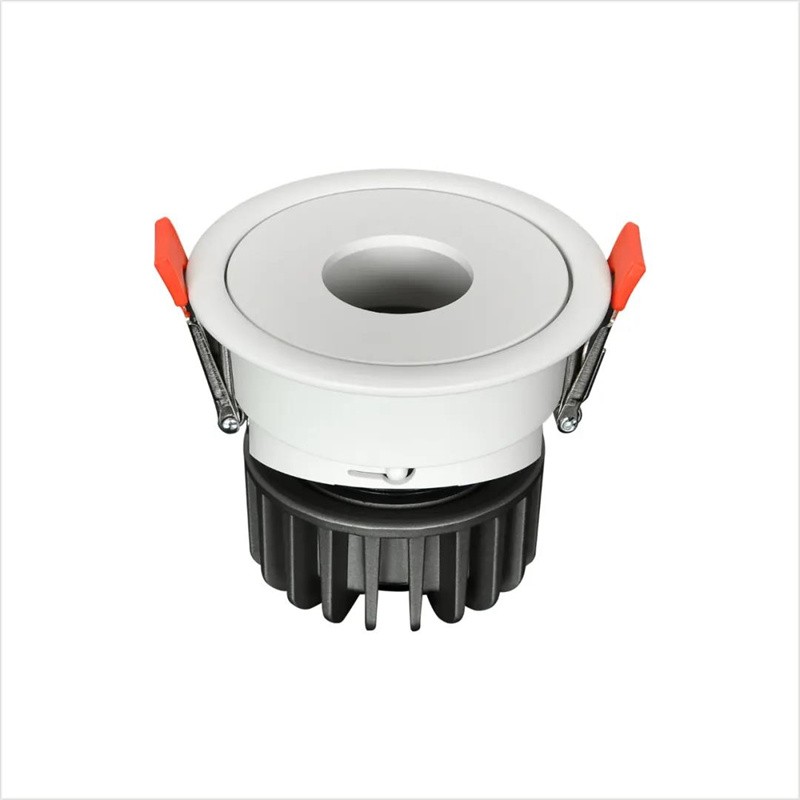

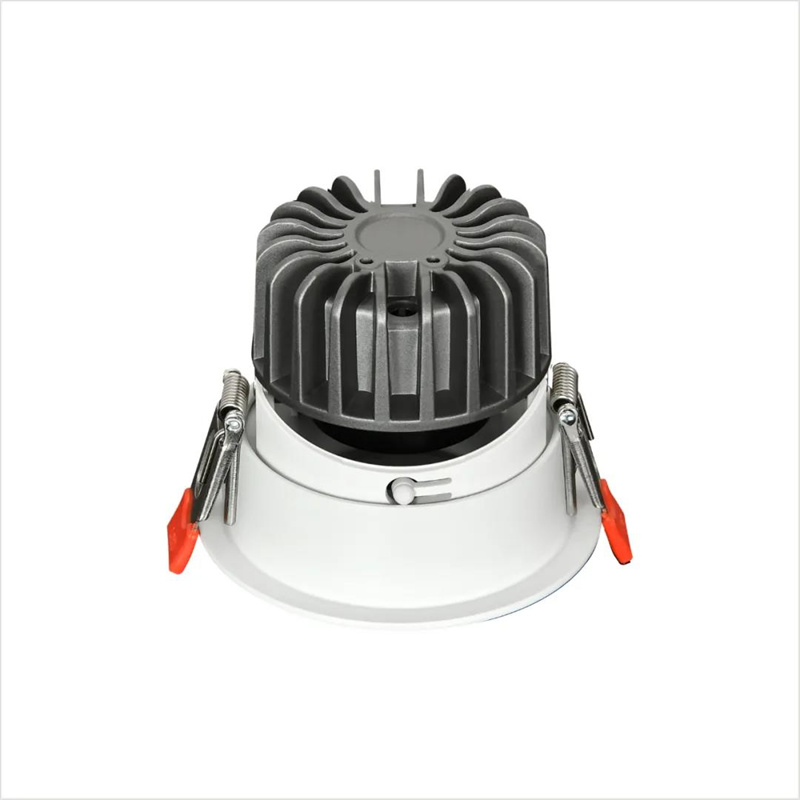

Anti glare LED Downlight With Die cast Aluminum Heat Sink

Anti glare LED Downlight With Die cast Aluminum Heat Sink

Anti glare LED Downlight With Die cast Aluminum Heat Sink 7W/10W/12W/15W/20W

Product Description

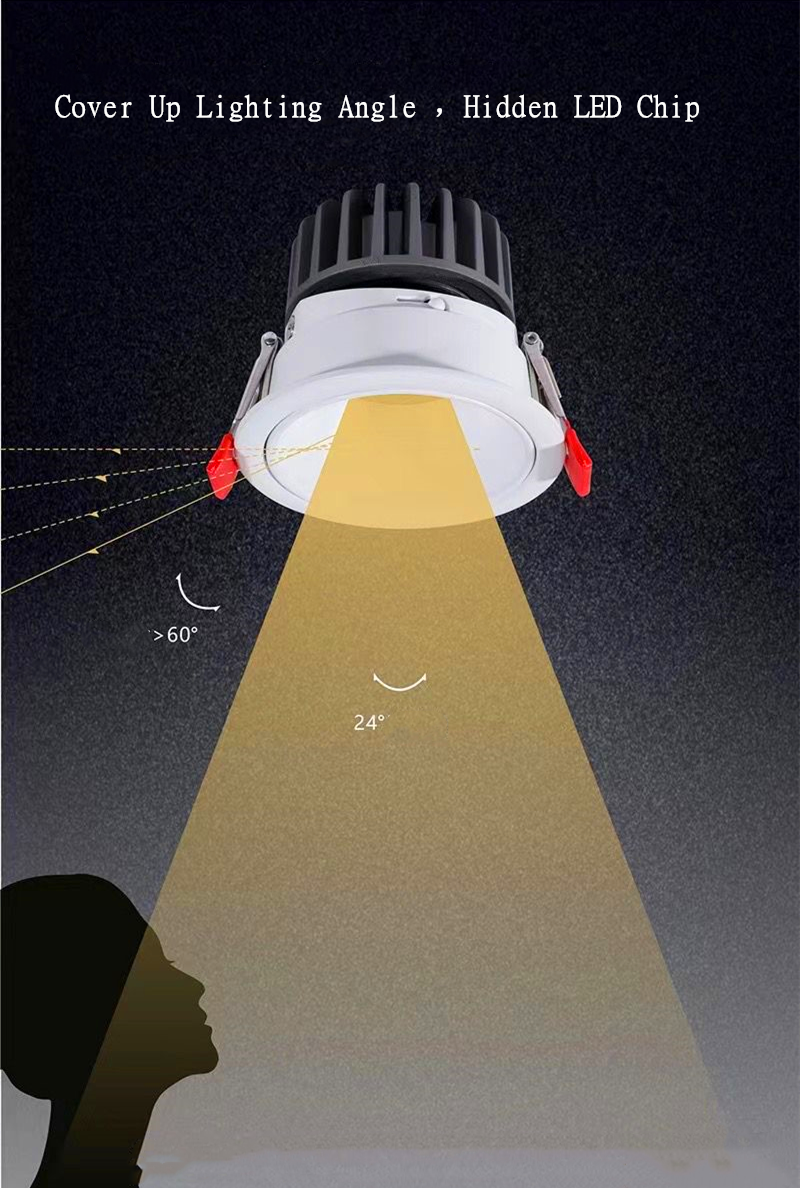

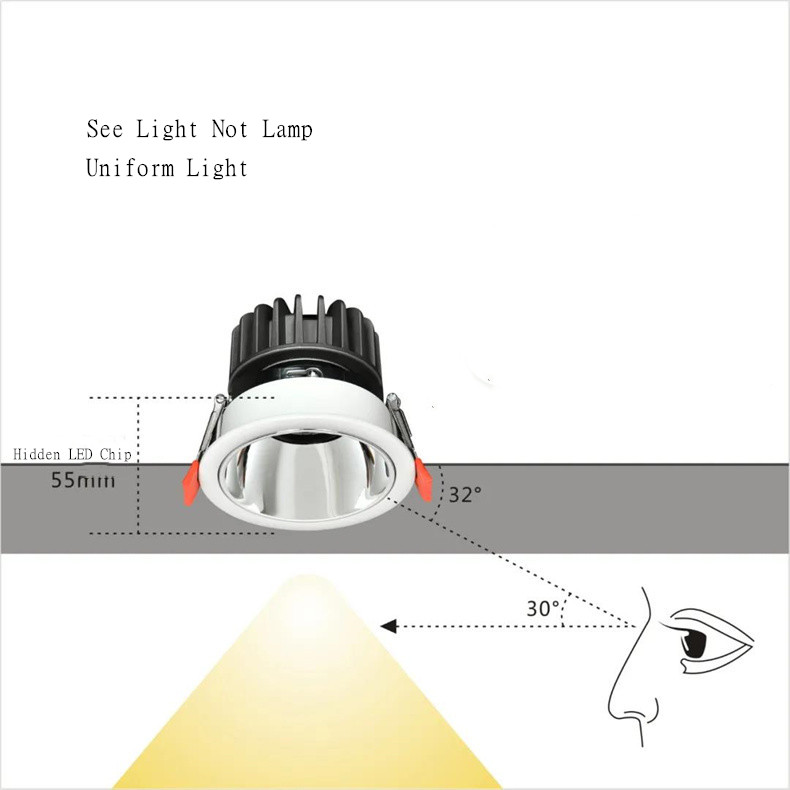

Deep anti glare LED down light advantages:

1. One engine for optional frames and optional colors;

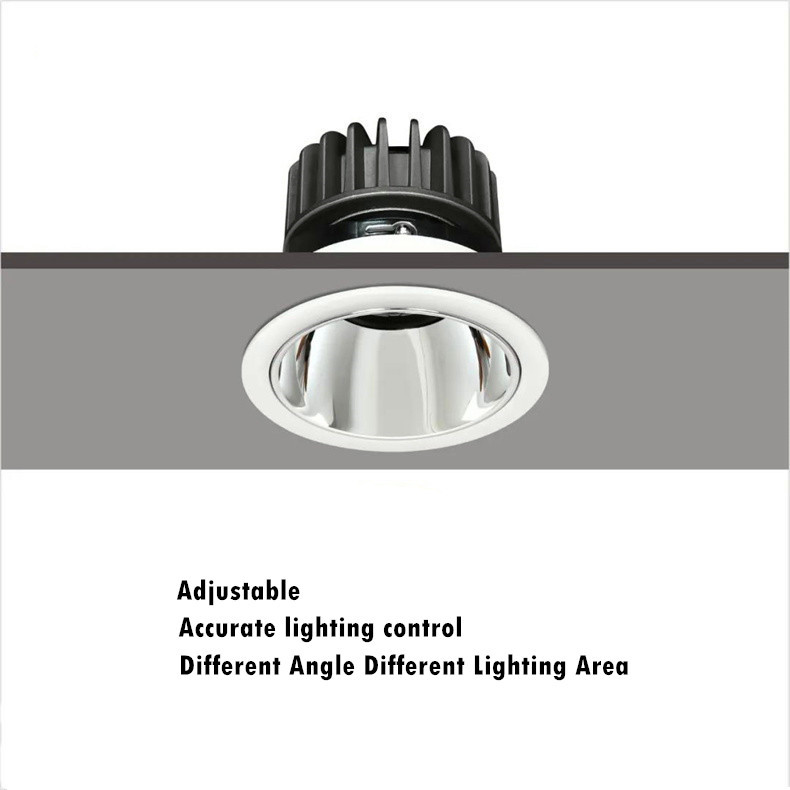

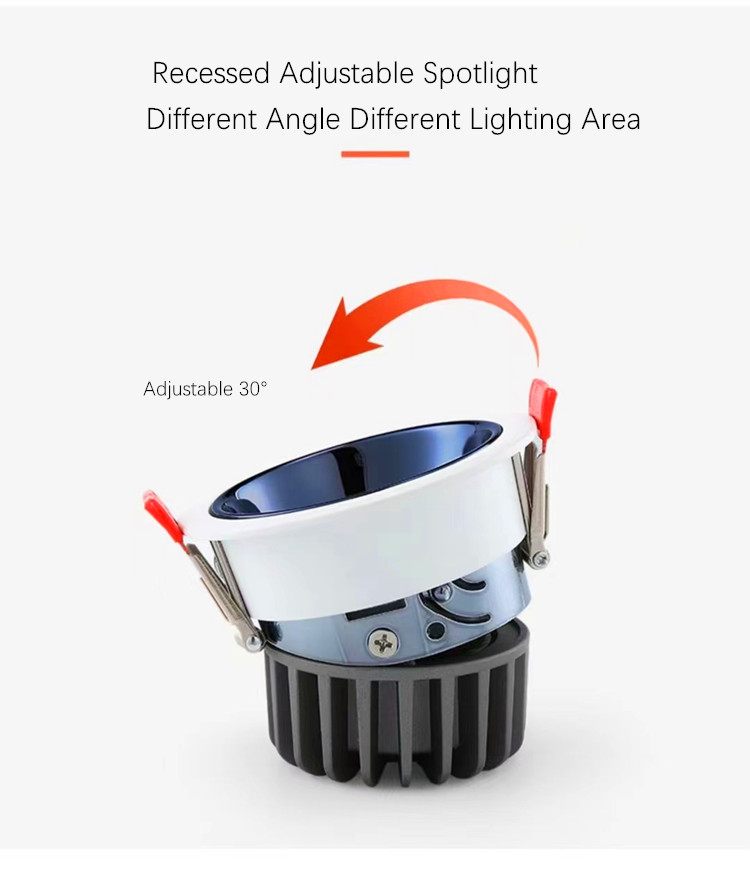

2. Reflector beam angle by reflector: 15/25/38°;

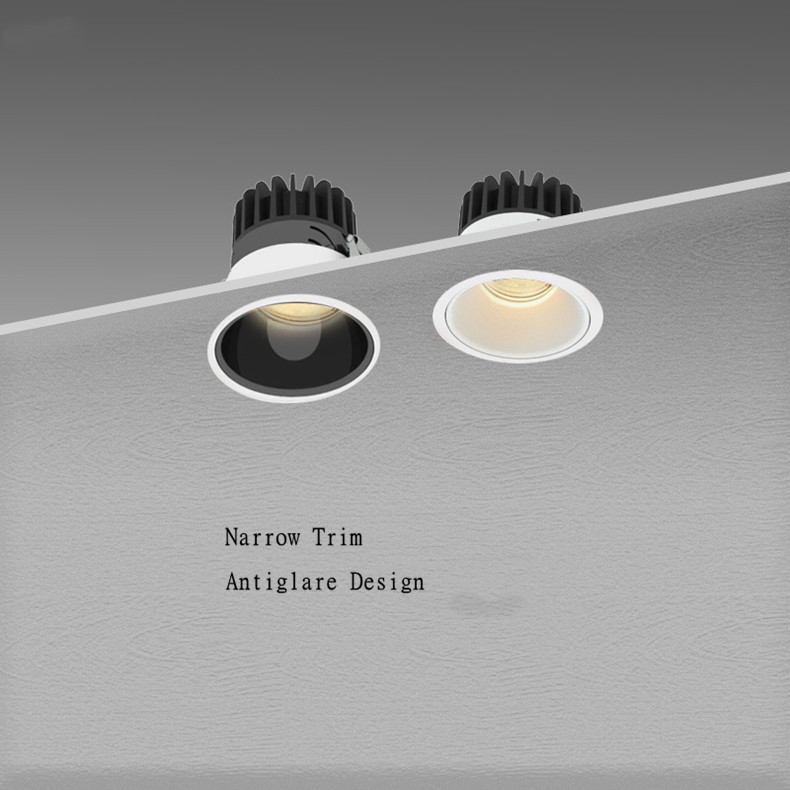

3. Narrow trim or trimless or square or double or triple or four heads;

4. Easy replace, just change heat only no need change whole lamp;

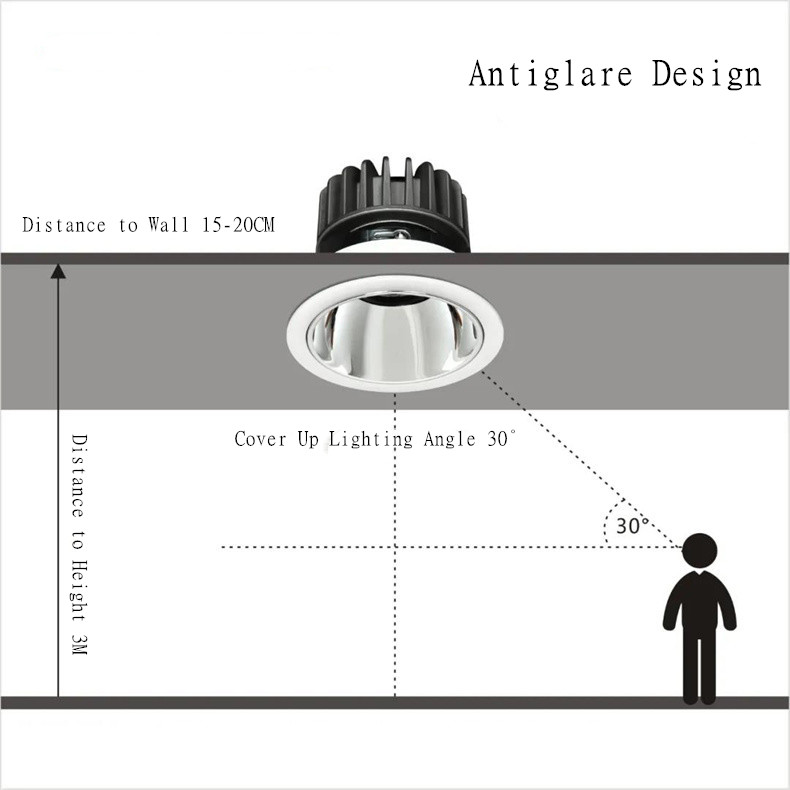

5. Easy to disassemble & deep anti glare;

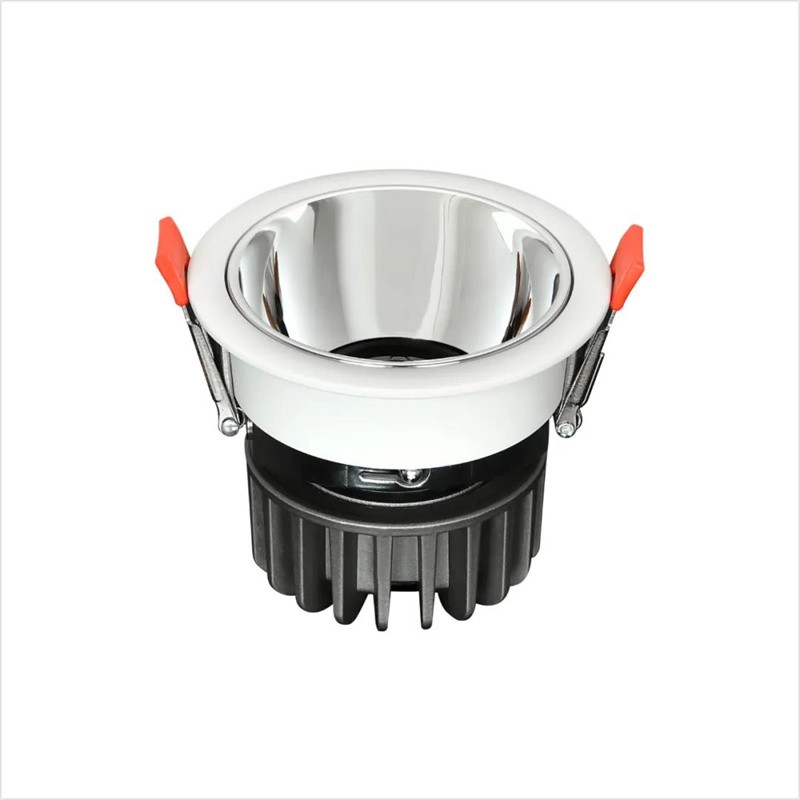

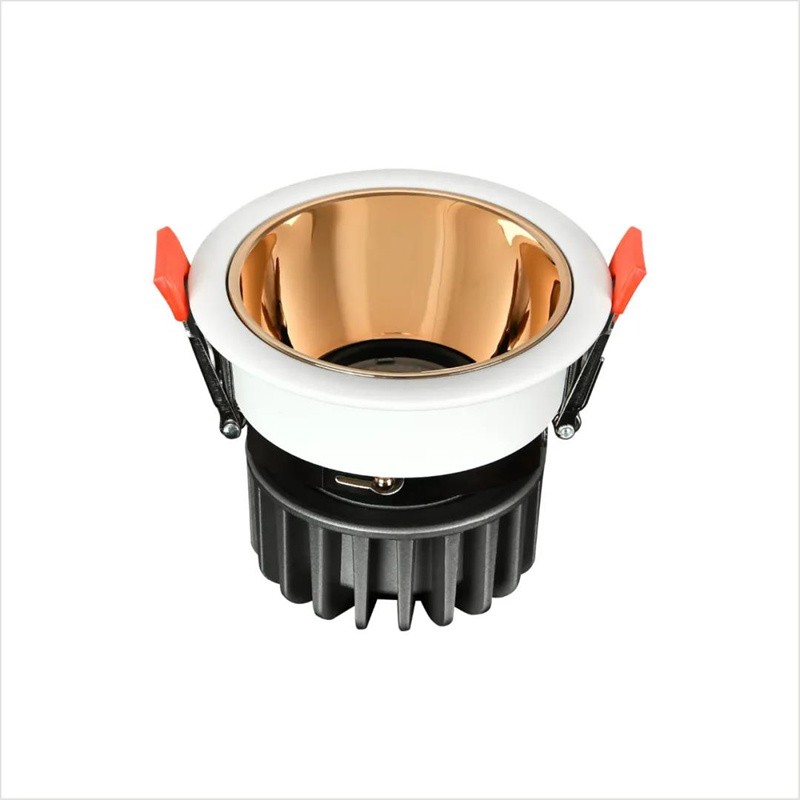

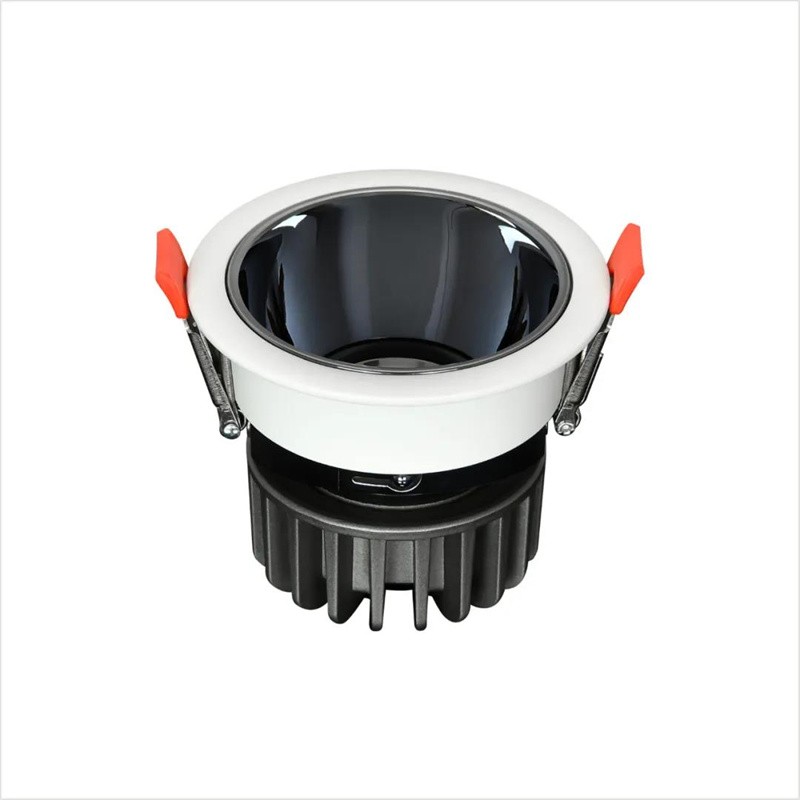

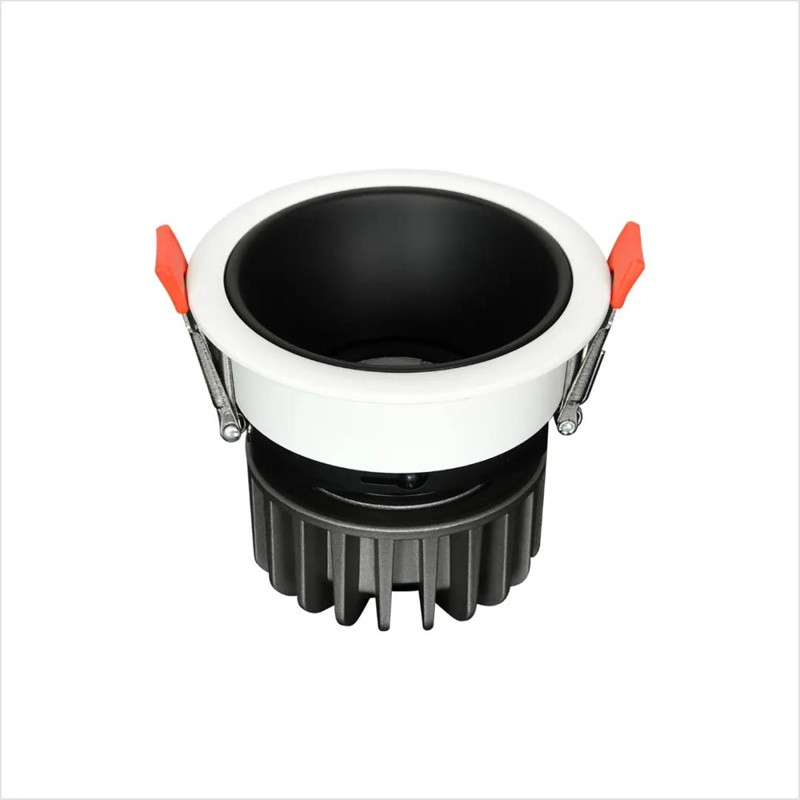

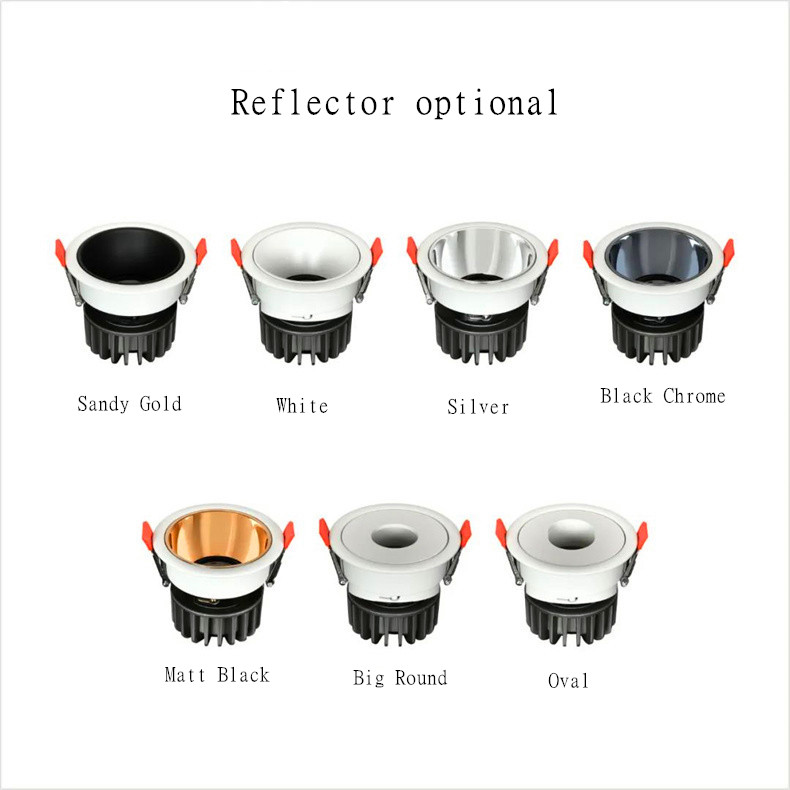

6. Reflector color: white, black, black chrome, chrome, rose golden;

7. Laser, Logo, Customized Package is available too;

8. Fast lead time: 1-3 days for under 500pcs;

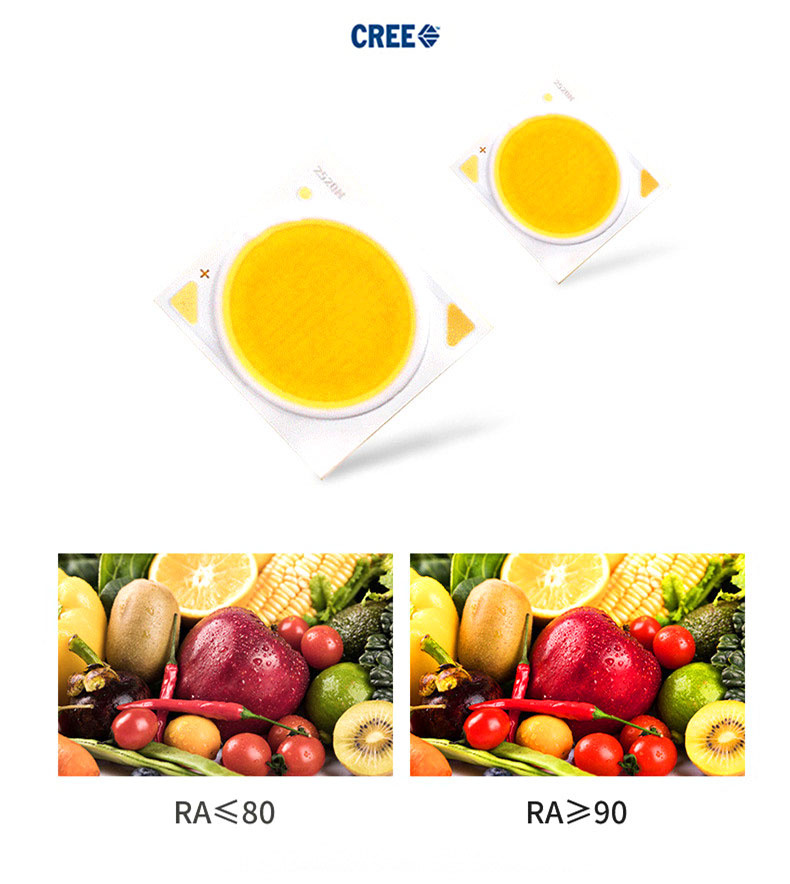

9. High quality with CREE/ Citizen/Osram/Philips LED chip and Philips/Osram/Tridonic/LTECH driver;

10. Other dimming type: 0-10V/Triac/Dali/Dmx/Push Dim/ CCT Tunable all available;

Product Paramenters

This Is The Parameters of Honeycomb Recessed Downlight:

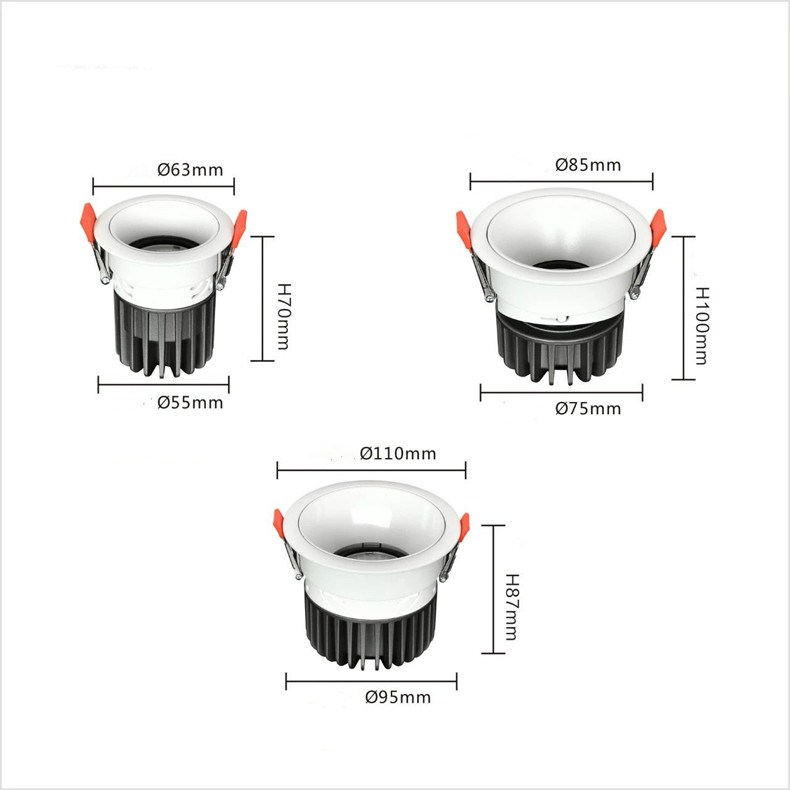

Model No.	Power	Lumen	LED Chip	CRI	CCT	LED Driver	Size
V-KZ-2F	7W	550lm	CREE CXA1304	RA>90 RA>97	2700K 3000K 3500K 4000K 5000K 5700K 6500K	0-10V Dim Triac Dimming EUCHIPS DALI Dimmable	D63*H70mm
V-KZ-3F	10W	850lm	CREE CXA1507				D85*H70mm
V-KZ-3F	12W	950lm	CREE CXA1507				D85*H102mm
V-KZ-3F	15W	1300lm	CREE CXA1512				D85*H102mm
V-KZ-4F	20W	1800lm	CREE CXA1512				D110*H87mm

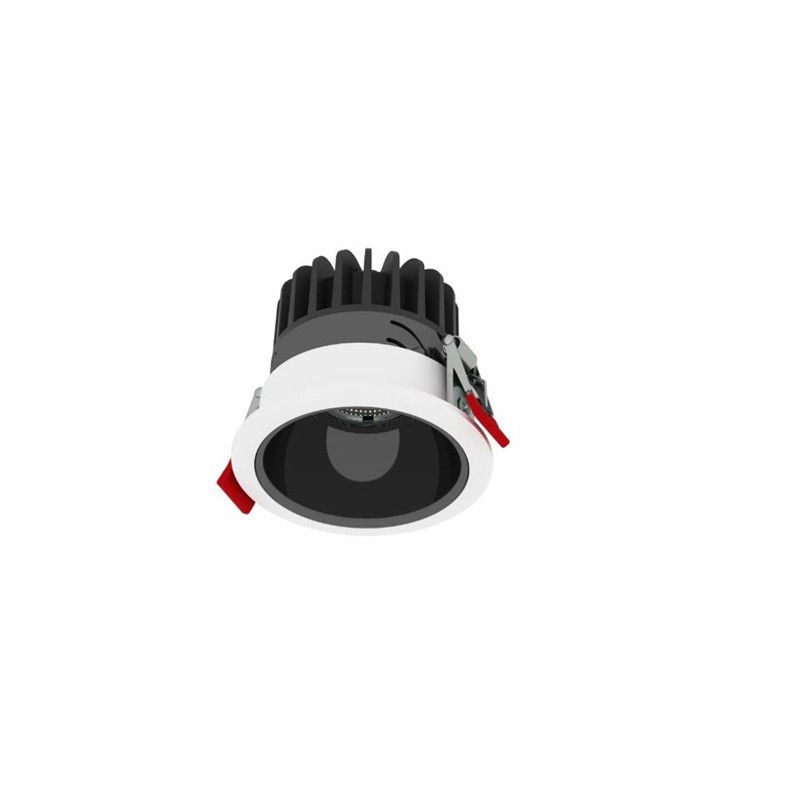

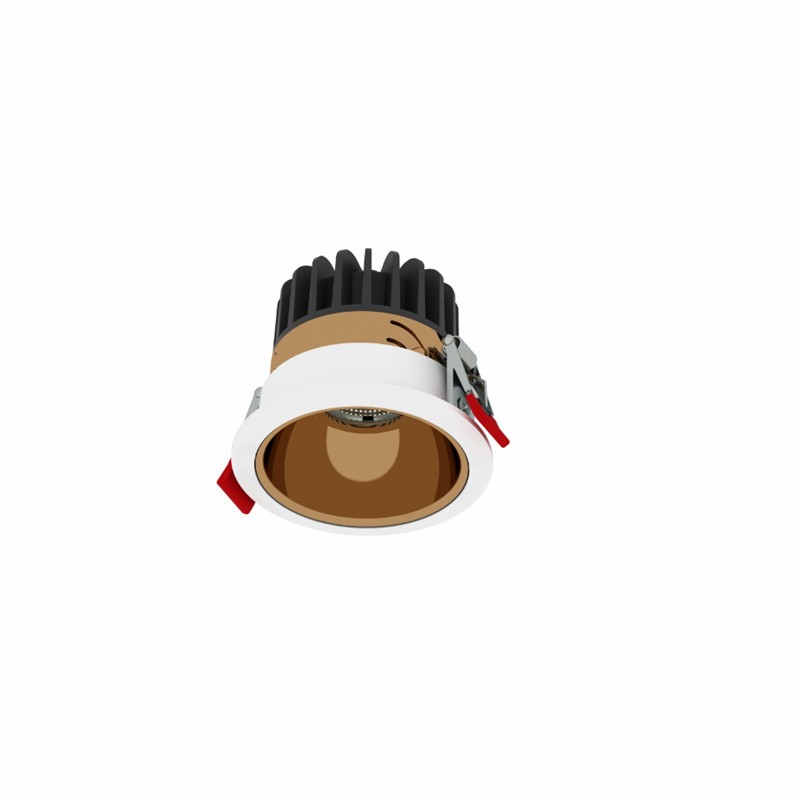

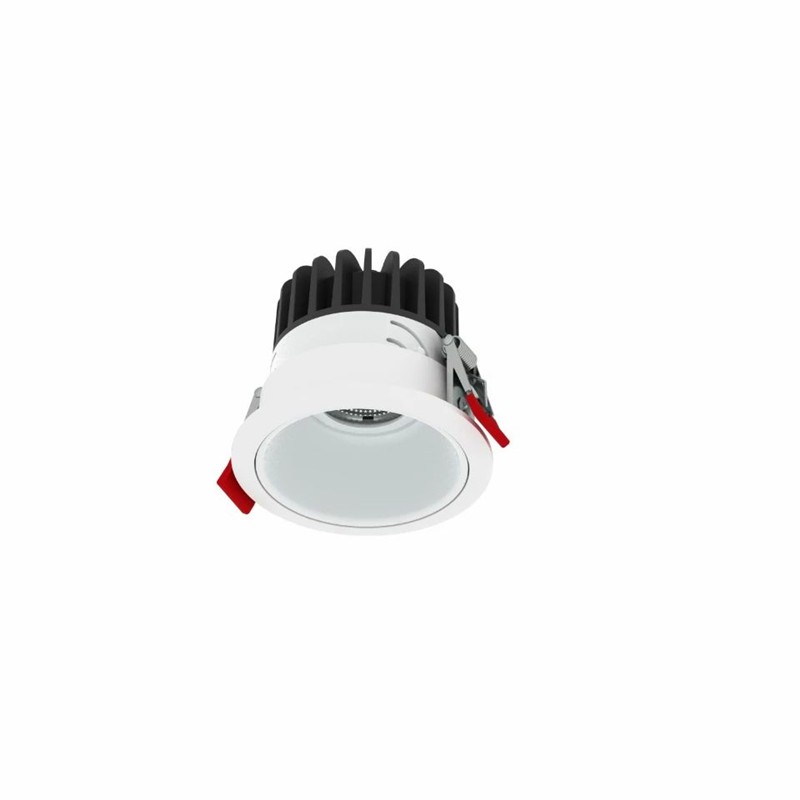

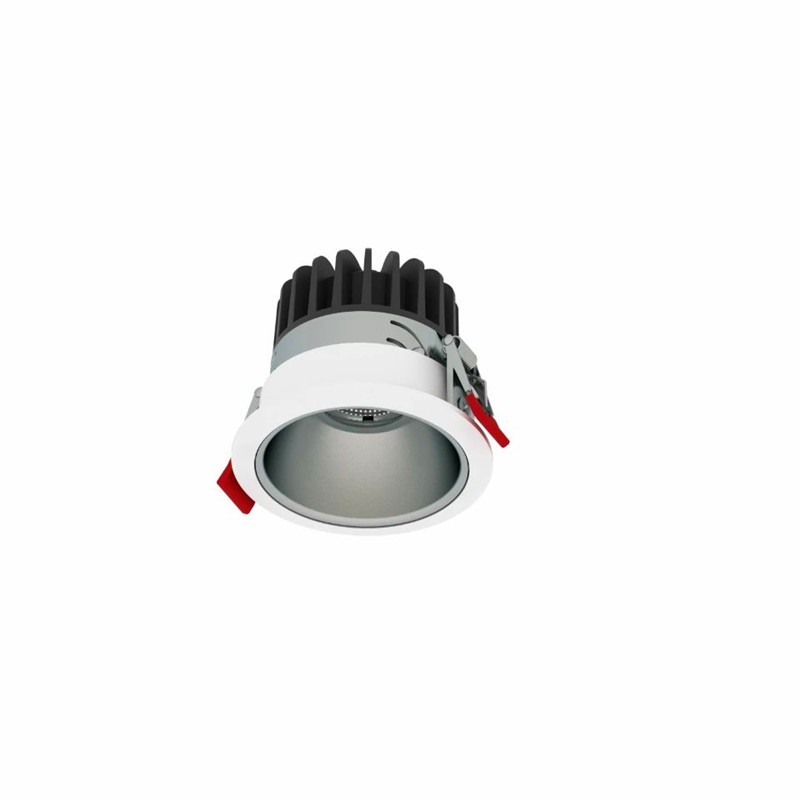

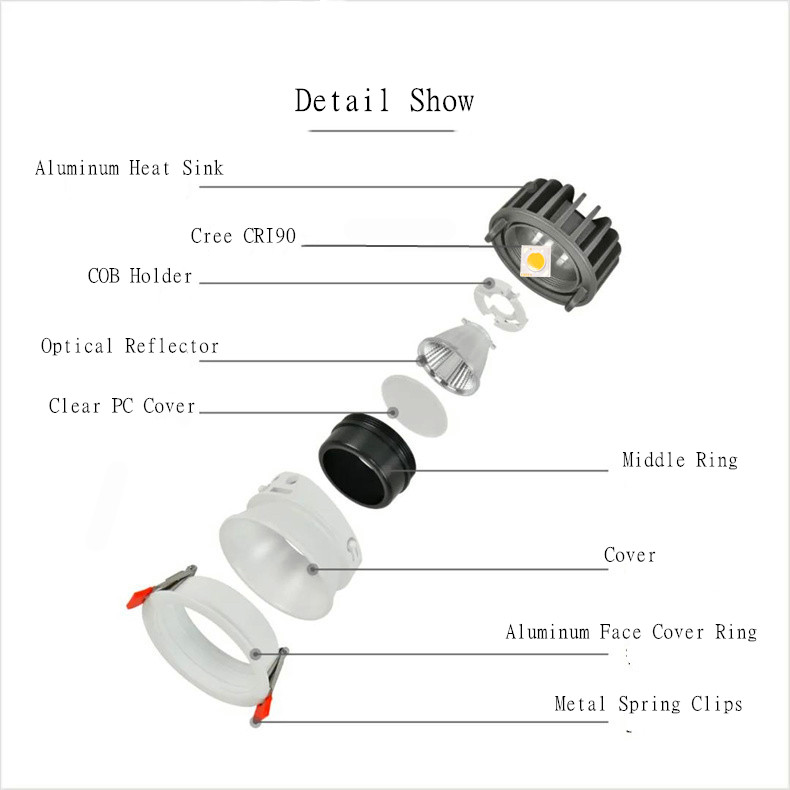

Details Images

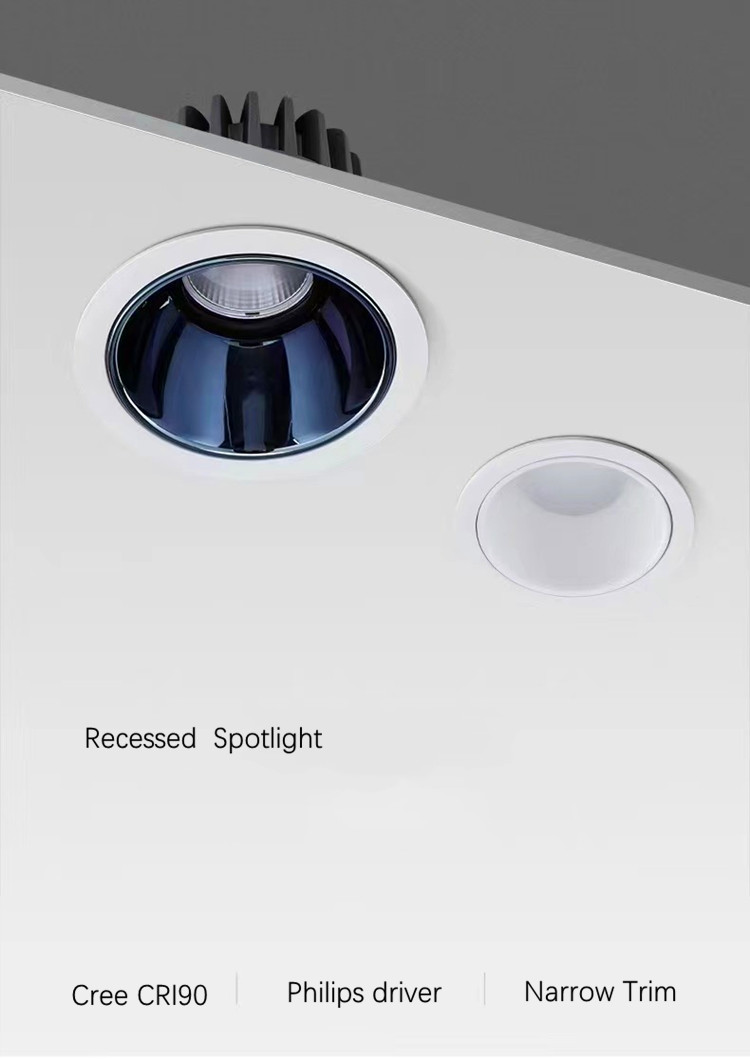

LED Downlight Project Case

The 10 w downlight with die cast aluminum is widesly used in home, office, living room, vila, hotel, shop, small room, residential indoor lighting and commercial lighting, it has the power 3W 5w 7w 10w 15w and max 20w, cutout is just 75mm or 70mm. All this design can replace the MR16 GU10 halogen spotlight. And beam angle can be 15/25/38/60 degree.
